Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

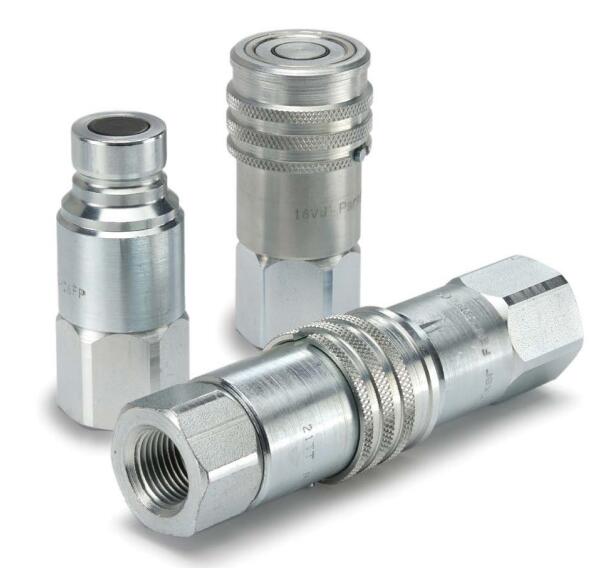

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples

Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

FEM and FEC Series Nipples (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards, and connect with FEM Series Couplers. FEC nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion.
Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples

Technical Characteristics:

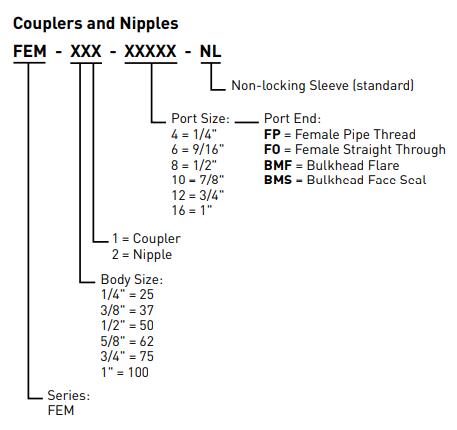

- FEM Sizes: 1/4” – 1”

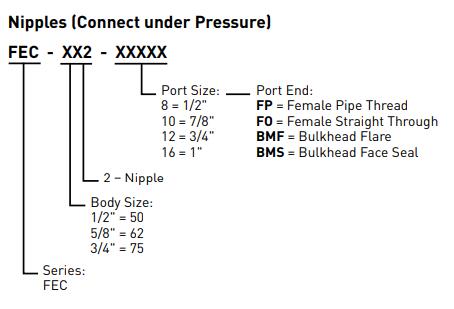

- FEC (Connect Under Pressure) Sizes: 1/2", 5/8", 3/4"
- Materials: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon

Markets:
- Industrial
- Construction
- Utility
- Agriculture

Features/Benefits:
- All sizes are globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Male bulkhead fitting ends for panel or plate mounting options
- FEC nipples provide the ability to connect under residual pressure caused by thermal expansion.

Applications:
- Skid loader attachments
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines - Contact QCD for a brass, FEM style drain port nipple that is recommended for use by the Technology and Maintenance Council of the American Trucking Association, TMC Recommended Practice 353

Technical Specifications

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings, Connect Under Pressure (hyd, up to 4568 psi) - FEM/FEC Series Nipples 型号
