Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

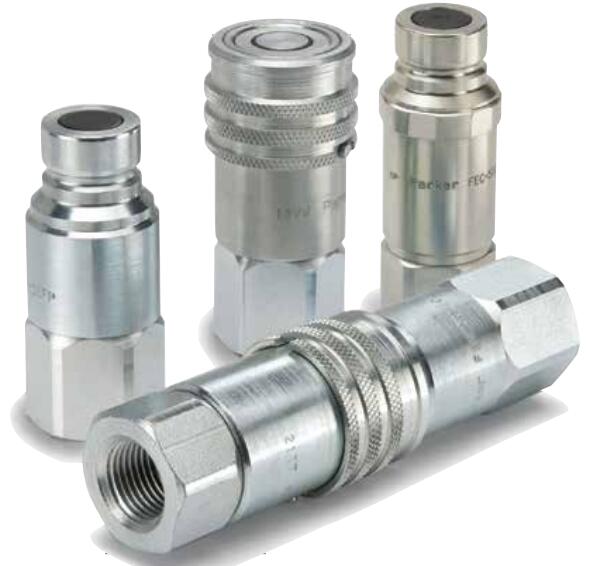

HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers

Parker's non-spill quick couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.





FEM Series Couplers (hydraulic) up to 4568 psi, meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards and connect with FEM/FEC Series Nipples. FEC Nipples provide the ability to connect under pressure.
Parker's FEM Series are double shut off, non-spill quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM Couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 4568 psi.



HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers



Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon

Markets:
- Industrial
- Construction
- Utility
- Agriculture

Features/Benefits:
- Push-to-connect operation makes connection easy with one hand
- All sizes are globally interchangeable with other couplings complying with HTMA (ISO 16028) standards
- Non-spill flush face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Optional sleeve lock guards against accidental disconnection

Applications:
- Skid loader attachments
- Hydraulic tools
- Constuction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines



Technical Specifications

Application: Hydraulic, non-spill, Hydraulic | non-spill
Body Size: 1/4, 3/8, 1/2, 5/8, 3/4, 1 inch
Maximum Operating Pressure: Up to 4568 psi, 315 bar
Brand: Parker
Fitting Connection Type: various
Interchange Type: ISO 16028
Materials of Construction: Steel
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Flow Rate: Up to 50 Gal/min
Seal Material: Nitrile | Polyurethane and Nitrile
Media: Hydraulic
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Valve Type: Non-spill
Plating Type: Zinc with clear trivalent chromate
Sleeve Type: Push to connect
Lock Type: Locking balls
Specifications Met: ISO 16028



HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers 型号

Part Connection Thread Size (inch) Connection Type Thread Style Body Size (inch)
FEM-1001-16FO-NL 1 5/16 - 12 UNF Female 1
FEM-1001-16FP-NL 1 - 11 1/2 NPSF Female 1
FEM-251-4FP-NL 1/4 - 18 NPSF Female 1/4
FEM-251-6FO-NL 9/16 - 18 UNF Female 1/4
FEM-371-6FP-NL 3/8 - 18 NPSF Female 3/8
FEM-371-8FO-NL 3/4 - 16 UNF Female 3/8
FEM-501-10BMF-NL 7/8 - 14 UNF Male bulkhead flare 1/2
FEM-501-10BMS-NL 1 - 14 UNS Male bulkhead face seal 1/2
FEM-501-10FO-NL 7/8 - 14 UNF Female 1/2
FEM-501-12FO-NL 1 1/16 - 12 UNF Female 1/2
FEM-501-8FO-NL 3/4 - 16 UNF Female 1/2
FEM-501-8FP-NL 1/2 - 14 NPSF Female 1/2
FEM-621-12FO-NL 1 1/16 - 12 UNF Female 5/8
FEM-751-12FO-NL 1 1/16 - 12 UNF Female 3/4
FEM-751-12FP-NL 3/4 - 14 NPSF Female 3/4
