Parker Quick Couplings

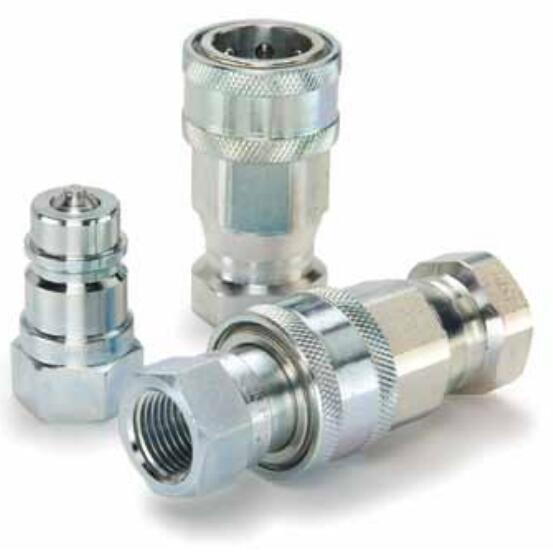

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Nipples
Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.
6600 Series Nipples (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Couplers. Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.
ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Nipples
Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
- Construction
- Mobile equipment
- Agriculture
Features/Benefits:
- Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
- Steel nipple body is hardened for durability
Applications:
- Hydraulic fluid transfer
- Truck trailer connections
- Mobile applications
- Attachments
Technical Specifications
| Body Size: |
1/4, 3/8, 1/2, 3/4, 1 inch, 1/4 to 1 inch |
| Maximum Operating Pressure: |
Up to 5000 psi, Up to 345 bar |
| Application: |
Hydraulic, general purpose, Hydraulic | general purpose |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
ISO 7241-1 Series A |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Flow Rate: |
Up to 50 Gal/min |
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Specifications Met: |
ISO 7241-1 series A |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 °F |
| Valve Type: |
Poppet |
| Thread Size: |
Female |
| Connection Type: |
NPTF | ORB |
| Plating Type: |
Zinc with clear trivalent chromate |
ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Nipples 型号
|
