Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

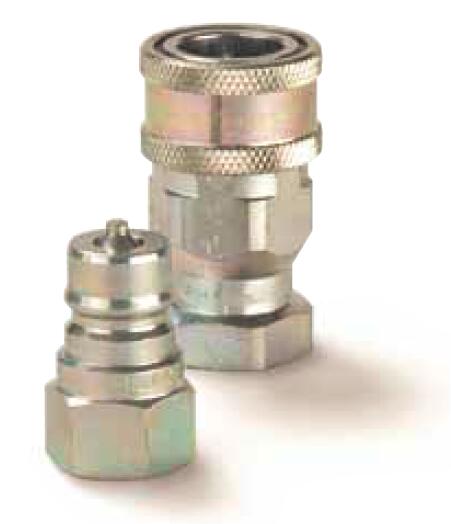

ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.





6600 Series Couplers (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Nipples.
Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.



ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers





Technical Characteristics:
- Sizes: 1/4” – 1”
- Materials: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Other Coupler options include: Sleeve Lock

Markets:
- Construction
- Mobile equipment
- Agriculture

Features/Benefits:
- Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
- Steel coupler sleeve is hardened for durability
- Optional sleeve lock helps to prevent accidental disconnection

Applications:
- Hydraulic fluid transfer
- Truck trailer connections
- Mobile applications
- Attachments



Technical Specifications

Body Size: 1/4 to 1 inch
Maximum Operating Pressure: Up to 5000 psi, Up to 345 bar
Application: Hydraulic, general purpose
Brand: Parker
Fitting Connection Type: Female Thread
Interchange Type: ISO 7241-1 Series A
Materials of Construction: Steel
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Flow Rate: Up to 50 Gal/min
Seal Material: Nitrile
Media: Hydraulic
Specifications Met: ISO 7241-1 series A
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Valve Type: Poppet
Sleeve Type: Manual sleeve
Lock Type: Locking balls
Thread Size: Female
Connection Type: NPTF | ORB
Plating Type: Zinc with clear trivalent chromate



ISO 7241 series A Interchange, Steel Quick Couplings (hydraulic) up to 5000 psi - 6600 Series Couplers 型号

Part Connection Thread Size (inch)
6601-12-12 3/4 - 14
