Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
HTMA (ISO 16028) Non-Spill, Flush Face Quick Couplings (hydraulic, up to 4568 psi) - FEM Series Couplers

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

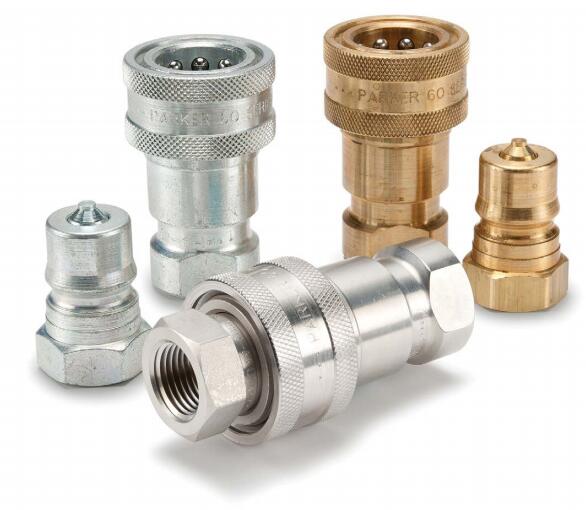

60 Series Couplers (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 series B, 60 Series Nipples.
Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series B.

These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi.

Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is Ethylene Propylene and the 3/8" size has a grip-ring sleeve for easy operation when wearing gloves.

Technical Characteristics:
- Sizes: 1/8” – 2-1/2”
- Materials: Steel, Brass, 302 Stainless Steel, 316 Stainless Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
- Coupler options include: Sleeve Lock, Valve Actuator, Steam compatibility

ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Couplers

Markets:
- Industrial
- Construction
- Chemical Processing
- Commercial Cleaning
- Agriculture

Features/Benefits:
- Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
- Multi-purpose coupling, widely used in varied applications
- Steel couplers have a hardened sleeve for strength and durability
- Metal valve stop prevents flow checking to provide steady performance
- Steam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8" has a grip-ring sleeve for easy operation when wearing gloves
- Brass couplers have double O-rings for redundant sealing and stainless steel locking balls for corrosion resistance
- 316 Stainless steel couplers have Fluorocarbon seals for chemical compatibility
- Optional coupler sleeve lock helps to prevent accidental disconnection

Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- High pressure fluid transfer
- High temperature fluid transfer
- Mobile equipment
- Cleaning equipment
- Dry cleaning
- Steam systems

Technical Specifications

ISO 7241 series B Interchange, Multi-Purpose Quick Couplings (hydraulic, fluids, gas, steam) up to 5000 psi - 60 Series Couplers 型号
