Parker Quick Couplings

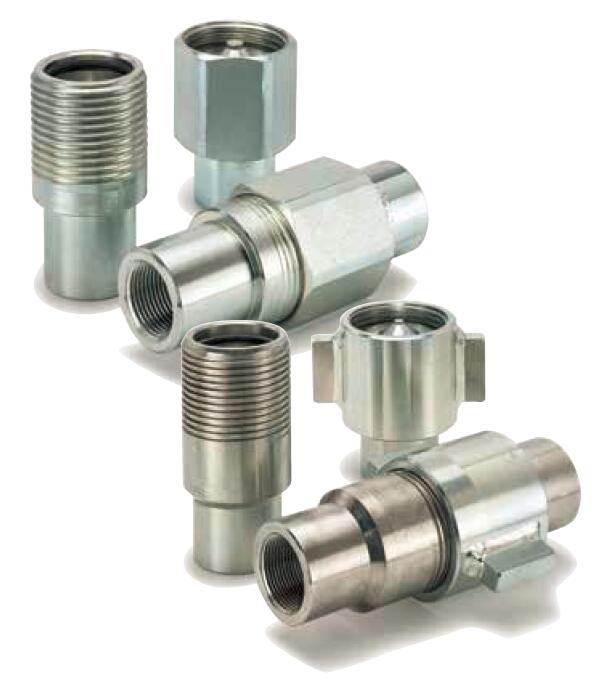

Thread to Connect Wing Nut, API 16D, Heavy Duty High Pressure Couplings (hyd) up to 5000 psi - Snap-tite 75 Series Nipples

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Snap-tite design, 75 Series Nipples (hydraulic) up to 5,000 psi connect with Snap-tite 75 Series Couplers.
Parker's Snap-tite 75 Series are double shut-off, connect under pressure, thread-to-connect quick couplings. The 3/4" size has a hex nut sleeve. All other sizes have a wing nut style connection. Couplers and nipples are available in a wide range of sizes and steel or stainless steel materials.

API 16D BOP version is available in 3/4" to 2" sizes. Contact us for availability.

Thread to Connect Wing Nut, API 16D, Heavy Duty High Pressure Couplings (hyd) up to 5000 psi - Snap-tite 75 Series Nipples

Technical Characteristics:
- Sizes: 3/4” – 4”
- Materials: Steel plated, 316 Stainless Steel
- Port Ends: Female Pipe NPTF for Steel, NPT for 316 Stainless Steel
- Seal Options: Nitrile, Fluorocarbon
- Other Nipple options include: "Fire Safe" BOP version 3/4" - 2" steel sizes only

Markets:
- Oil and gas
- Construction

Features/Benefits:
- Thread to connect wing nut makes a secure connection in rugged conditions
- Connect fluid lines under residual pressure
- Steel or corrosion resistant 316 stainless steel construction
- API 16D option for BOP use

Applications:
- High pressure hydraulic systems
- Oil fields and offshore drilling rigs
- Cranes
- Power tongs
- Horizontal boring
- Dewatering

Technical Specifications

Thread to Connect Wing Nut, API 16D, Heavy Duty High Pressure Couplings (hyd) up to 5000 psi - Snap-tite 75 Series Nipples 型号
