Parker 快速接头和附件
Parker Quick Couplings and Accessories

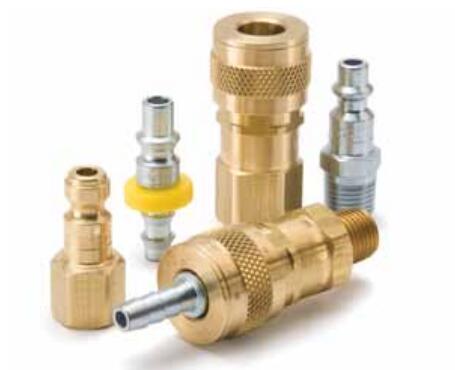

Parker Quick Couplings
Push to Connect Air Hose and Tool, Multiple Interchange Quick Couplings (pneumatic, air) - UC (Universal) Series Couplers

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.





UC Series Universal Couplers (pneumatic, air) up to 150 psi connect with Industrial Interchange, 10 Series (Tru-Flate), and 50 Series (ARO 210) style nipples. Parker's UC Series are push-to-connect, single shut off quick couplings. While the best performance is obtained by matching like series couplers and nipples, the Universal Coupler permits multiple series nipples to mate with one coupler. Couplers are available in 1/4" size only with a pressure rating of 150 psi.



Push to Connect Air Hose and Tool, Multiple Interchange Quick Couplings (pneumatic, air) - UC (Universal) Series Couplers



Technical Characteristics:
- Size: 1/4”
- Material: Brass
- Port Ends: Female NPSF, Male NPTF
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits:
- Connects with three nipple styles - Industrial Interchange, 10 Series (Tru-Flate), 50 Series (ARO 210 style)
- Push to connect for easy single handed operation
- High flow valve with minimal pressure drop for efficient performance
- Sleeve guard helps to prevent accidental disconnection when in use

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns



Technical Specifications

Maximum Operating Pressure: 150 psi, 10 bar
Maximum Operating Temperature: 121 °C, 250 °F
Materials of Construction: Brass
Valve Type: High Flow Air, Tubular
Brand: Parker
Vacuum Pressure Rating: No
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: ISO 6150 B, ARO, Tru-Flate
Body Size: 1/4 inch
Media: Low pressure fluids and compressed air
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Seal Material: Nitrile
Application: Pneumatic
Specifications Met: Connects with Industrial Interchange, 10 series (Tru-Flate), and 50 series (ARO 210) style nipples
Sleeve Type: Push to connect
Lock Type: Locking balls



Push to Connect Air Hose and Tool, Multiple Interchange Quick Couplings (pneumatic, air) - UC (Universal) Series Couplers 型号

Part Connection Thread Size (inch) Thread Style Connection Type
UC-251-4FP 1/4 - 18 Female NPTF
UC-251-4MP 1/4 - 18 Male NPTF
UC-251-6FP 3/8 - 18 Female NPTF
UC-251-6MP 3/8 - 18 Male NPTF
