Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
Air Hose and Tool Quick Couplings (pneumatic, air), A-A-59439, MIL-C-4109F, ISO 6150-B - Industrial Interchange Nipples

Parker's general purpose pneumatic quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.





Industrial Interchange Nipples (pneumatic, air) connect with Parker's 20 Series, 30 Series, HF Series, Universal or E-z-mate Couplers. These air hose connectors are unvalved and conform to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards to be globally interchangeable with other products manufactured to the same requirements. Parker's steel pneumatic nipples have hardened wear points and load bearing areas for increased endurance. Nipples are available in a range of sizes, materials, and fitting ends.

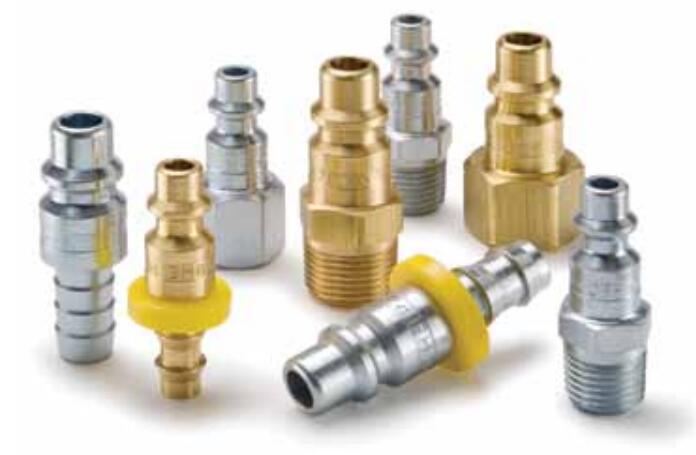

Air Hose and Tool Quick Couplings (pneumatic, air), A-A-59439, MIL-C-4109F, ISO 6150-B - Industrial Interchange Nipples



Technical Characteristics:
- Sizes: 1/4” – 3/4"
- Materials: Brass, Steel, 303 Stainless Steel
- Port Ends: Female NPTF, Male NPTF, Standard Hose Barb,
Push-Lok Hose Barb

Markets :
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits :
- Steel nipples have hardened wear points and load-bearing areas for increased durability
- Non-valved nipples connect with valved couplers for a single shut-off connection
- Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns



Technical Specifications

Body Size: 1/4, 3/8, 1/2, 3/4 inch
Maximum Operating Pressure: 300 psi, 20 bar
Maximum Operating Temperature: 121 °C, 250 °F
Materials of Construction: Steel, Brass, Stainless steel
Valve Type: No Valve, Unvalved
Brand: Parker
Vacuum Pressure Rating: No
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: ISO 6150 B
Media: Low pressure fluids and compressed air
Coupling Half: Nipple
Application: Pneumatic
Plating Type: Zinc with clear trivalent chromate
Specifications Met: A-A-59439 (MIL-C-4109F, ISO 6150-B)



Air Hose and Tool Quick Couplings (pneumatic, air), A-A-59439, MIL-C-4109F, ISO 6150-B - Industrial Interchange Nipples 型号

Part Body Size (inch) Body Material Connection Type Thread Style Connection Thread Size (inch) Connection Hose I.D. (inch)
BH2C 1/4 Brass NPTF Male 1/4 - 18 na
BH2E 3/8 Brass NPTF Male 3/8 - 18 na
BH2F 1/2 Brass NPTF Male 1/2 - 14 na
BH2G 3/4 Brass NPTF Male 3/4 - 14 na
BH3C 1/4 Brass NPTF Female 1/4 - 18 na
BH3E 3/8 Brass NPTF Female 3/8 - 18 na
BH3F 1/2 Brass NPTF Female 1/2 - 14 na
BH5G 3/4 Brass Hose barb na na 3/4
BH8CP 1/4 Brass Push-Lok hose barb na na 1/4
H00E 3/8 Steel NPTF Male 1/8 - 27 na
H0C 1/4 Steel NPTF Male 1/8 - 27 na
H0E 3/8 Steel NPTF Male 1/4 - 18 na
H0F 1/2 Steel NPTF Male 3/8 - 18 na
H1C 1/4 Steel NPTF Female 1/8 - 27 na
H1E 3/8 Steel NPTF Female 1/4 - 18 na
H1F 1/2 Steel NPTF Female 3/8 - 18 na
H2C 1/4 Steel NPTF Male 1/4 - 18 na
H2C-E 1/4 Steel NPTF Male 3/8 - 18 na
H2E 3/8 Steel NPTF Male 3/8 - 18 na
H2E-F 3/8 Steel NPTF Male 1/2 - 14 na
H2F 1/2 Steel NPTF Male 1/2 - 14 na
H2F-G 1/2 Steel NPTF Male 3/4 - 14 na
H2G 3/4 Steel NPTF Male 3/4 - 14 na
H2G-F 3/4 Steel NPTF Male 1/2 - 14 na
H2G-J 3/4 Steel NPTF Male 1 - 11 1/2 na
H3C 1/4 Steel NPTF Female 1/4 - 18 na
H3C-E 1/4 Steel NPTF Female 3/8 - 18 na
H3E 3/8 Steel NPTF Female 3/8 - 18 na
H3E-F 3/8 Steel NPTF Female 1/2 - 14 na
H3F 1/2 Steel NPTF Female 1/2 - 14 na
H3F-G 1/2 Steel NPTF Female 3/4 - 14 na
H3G 3/4 Steel NPTF Female 3/4 - 14 na
H3G-F 3/4 Steel NPTF Female 1/2 - 14 na
H3G-J 3/4 Steel NPTF Female 1 - 11 1/2 na
H4EP 3/8 Steel Push-Lok hose barb na na 1/4
H4F 1/2 Steel Hose barb na na 3/8
H4FP 1/2 Steel Push-Lok hose barb na na 3/8
H5E 3/8 Steel Hose barb na na 3/8
H5EP 3/8 Steel Push-Lok hose barb na na 3/8
H5F 1/2 Steel Hose barb na na 1/2
H5F-G 1/2 Steel Hose barb na na 3/4
H5FP 1/2 Steel Push-Lok hose barb na na 1/2
H5G 3/4 Steel Hose barb na na 3/4
H5G-F 3/4 Steel Hose barb na na 1/2
H5G-J 3/4 Steel Hose barb na na 1
H6E 3/8 Steel Hose barb na na 1/2
H6EP 3/8 Steel Push-Lok hose barb na na 1/2
H6FP 1/2 Steel Push-Lok hose barb na na 5/8
H8C 1/4 Steel Hose barb na na 1/4
H8C-D 1/4 Steel Hose barb na na 5/16
H8CP 1/4 Steel Push-Lok hose barb na na 1/4
H9C 1/4 Steel Hose barb na na 3/8
H9CP 1/4 Steel Push-Lok hose barb na na 3/8
SH2C 1/4 Stainless steel (303) NPTF Male 1/4 - 18 na
SH2C-E 1/4 Stainless steel (303) NPTF Male 3/8 - 18 na
SH3C 1/4 Stainless steel (303) NPTF Female 1/4 - 18 na
SH3C-E 1/4 Stainless steel (303) NPTF Female 3/8 - 18 na
SH8C 1/4 Stainless steel (303) Hose barb na na 1/4
SH9C 1/4 Stainless steel (303) Hose barb na na 3/8
