Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

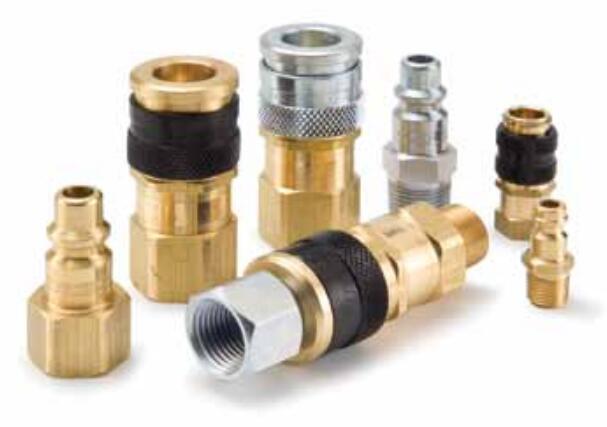

High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Parker's high flow pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.





HF Series Couplers (pneumatic, air) up to 300 psi connect with Industrial Interchange Nipples except for the 1/8" size that connects only with HF Series Nipples. Parker's HF Series Couplers are push to connect, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. These couplers have a slim profile and are corrosion resistant with stainless steel locking balls and valve spring. The sleeve guard protects against accidental disconnection. Heavy duty version has steel sleeve and valve body. Couplers are available in a range of sizes and materials suitable for pressure up to 300 psi.



High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers



Technical Characteristics:
- Sizes: 1/8” – 1/2”
- Materials: Brass, Steel, Stainless Steel
- Port Ends: Female NPTF, Female NPSF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits:
- Corrosion resistant valve with stainless steel locking balls and valve spring
- Heavy duty version has steel body and sleeve for durability
- Easy push to connect operation
- Slim profile is compact in confined spaces
- Sleeve guard protects against accidental disconnection
- Sizes 1/4" through 1/2" connect with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability.

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns



Technical Specifications

Body Size: 1/8, 1/4, 3/8, 1/2 inch
Application: Pneumatic, high flow, Pneumatic
Maximum Operating Pressure: Up to 300 psi, Up to 20 bar
Media: Low pressure fluids and compressed air, Low pressure fluids and compressed air
Valve Type: High Flow Air, Tubular
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: ISO 6150 B
Materials of Construction: Brass
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Seal Material: Nitrile
Plating Type: Zinc with clear trivalent chromate on steel body and sleeve
Specifications Met: Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Sleeve Type: Push to connect
Lock Type: Locking balls



High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers 型号

Part Body Size (inch) Body Material Connection Type Thread Style Connection Thread Size (inch) Hose I.D. (inch)
HF-121-2FP 1/8 Brass NPTF Female 1/8 - 27 na
HF-121-2MP 1/8 Brass NPTF Male 1/8 - 27 na
HF-121-4FP 1/8 Brass NPTF Female 1/4 - 18 na
HF-121-4MP 1/8 Brass NPTF Male 1/4 - 18 na
HF-251-4FP 1/4 Brass NPSF Female 1/4 - 18 na
HF-251-4FP-S 1/4 Steel and brass NPSF Female 1/4 - 18 na
HF-251-4HB 1/4 Brass Hose barb na na 1/4
HF-251-4HB-S 1/4 Steel and brass Hose barb na na 1/4
HF-251-4MP 1/4 Brass NPTF Male 1/4 - 18 na
HF-251-4MP-S 1/4 Steel and brass NPTF Male 1/4 - 18 na
HF-251-4PL 1/4 Brass Push-Lok hose barb na na 1/4
HF-251-4PL-S 1/4 Steel and brass Push-Lok hose barb na na 1/4
HF-251-6FP 1/4 Brass NPSF Female 3/8 - 18 na
HF-251-6FP-S 1/4 Steel and brass NPSF Female 3/8 - 18 na
HF-251-6HB 1/4 Brass Hose barb na na 3/8
HF-251-6HB-S 1/4 Steel and brass Hose barb na na 3/8
HF-251-6MP 1/4 Brass NPTF Male 3/8 - 18 na
HF-251-6MP-S 1/4 Steel and brass NPTF Male 3/8 - 18 na
HF-251-6PL 1/4 Brass Push-Lok hose barb na na 3/8
HF-251-6PL-S 1/4 Steel and brass Push-Lok hose barb na na 3/8
HF-371-4FP 3/8 Brass NPSF Female 1/4 - 18 na
HF-371-4FP-S 3/8 Steel and brass NPSF Female 1/4 - 18 na
HF-371-4MP 3/8 Brass NPTF Male 1/4 - 18 na
HF-371-4MP-S 3/8 Steel and brass NPTF Male 1/4 - 18 na
HF-371-6FP 3/8 Brass NPSF Female 3/8 - 18 na
HF-371-6FP-S 3/8 Steel and brass NPSF Female 3/8 - 18 na
HF-371-6HB 3/8 Brass Hose barb na na 3/8
HF-371-6HB-S 3/8 Steel and brass Hose barb na na 3/8
HF-371-6MP 3/8 Brass NPTF Male 3/8 - 18 na
HF-371-6MP-S 3/8 Steel and brass NPTF Male 3/8 - 18 na
HF-371-6PL 3/8 Brass Push-Lok hose barb na na 3/8
HF-371-6PL-S 3/8 Steel and brass Push-Lok hose barb na na 3/8
HF-371-8FP 3/8 Brass NPTF Female 1/2 - 14 na
HF-371-8FP-S 3/8 Steel and brass NPTF Female 1/2 - 14 na
HF-371-8HB 3/8 Brass Hose barb na na 1/2
HF-371-8HB-S 3/8 Steel and brass Hose barb na na 1/2
HF-371-8MP 3/8 Brass NPTF Male 1/2 - 14 na
HF-371-8MP-S 3/8 Steel and brass NPTF Male 1/2 - 14 na
HF-371-8PL 3/8 Brass Push-Lok hose barb na na 1/2
HF-371-8PL-S 3/8 Steel and brass Push-Lok hose barb na na 1/2
HF-501-8FP 1/2 Brass NPTF Female 1/2 - 14 na
HF-501-8MP 1/2 Brass NPTF Male 1/2 - 14 na
