Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
Non-Marking, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers

Parker's non-marking, lightweight, pneumatic, air quick couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

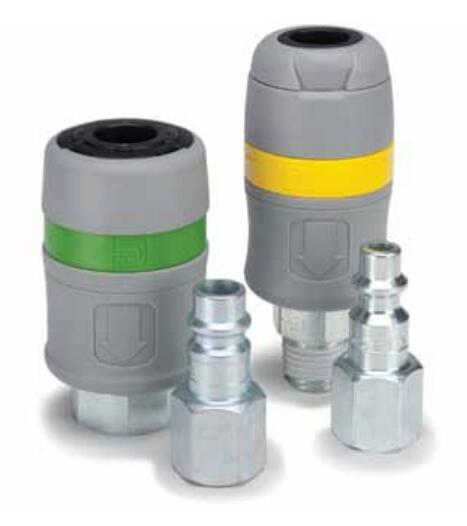

Tool-Mate Series (Standard) Couplers (pneumatic) up to 300 psi, are available in two connection styles to accept either Industrial Interchange Nipples or RF Series (European High Flow profile) Nipples. The connection style is visually indicated by a colored band on the sleeve. Yellow designates Industrial Interchange and green designates European High Flow style. Parker's Tool-Mate Series are non-marking, push-to-connect, single shut off couplers. Coupler bodies are lightweight Polyamide material. Tool-Mate PBH and PER part numbers are NOT pressure venting.



Non-Marking, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers



Technical Characteristics:
- Sizes: 1/4”, 3/8”
- Materials: Polyamide material with galvanized steel port ends
- Port Ends: Female NPTF, Male NPTF
- Seal Options: Nitrile

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits:
- Easy push to connect operation
- Lightweight non-marring body helps to prevent damage to surface finishes and painted coatings during assembly operations
- Yellow band visually indicates Industrial Interchange connection style. Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B).
- Green band visually indicates European High Flow connection style. Connects with Parker's RF Series Nipples and other high flow profile nipples.

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Drop-down air lines
- Blow guns



Technical Specifications

Body Size: 1/4, 3/8 inch
Maximum Operating Pressure: 300 psi, 20 bar
Maximum Operating Temperature: 71 °C, 160 °F
Materials of Construction: Polyamide
Application: Pneumatic, high flow, Pneumatic
Valve Type: High Flow Air
Brand: Parker
Vacuum Pressure Rating: No
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: ISO 6150 B, Rectus Profile
Media: Compressed air
Coupling Half: Coupler
Minimum Operating Temperature: 0 °F
Seal Material: Nitrile
Plating Type: Galvanized steel port ends
Specifications Met: Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B), Connects with RF style nipples
Sleeve Type: Push to connect
Lock Type: Polyacetate locking fingers



Non-Marking, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers 型号

Part Industry Standards Body Size (inch) Thread Style Connection Thread Size (inch) Connection Type
PBH-251-4FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Female 1/4 - 18 NPTF
PBH-251-4MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Male 1/4 - 18 NPTF
PBH-251-6FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Female 3/8 - 18 NPTF
PBH-251-6MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Male 3/8 - 18 NPTF
PBH-371-4FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Female 1/4 - 18 NPTF
PBH-371-4MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Male 1/4 - 18 NPTF
PBH-371-6FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Female 3/8 - 18 NPTF
PBH-371-6MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Male 3/8 - 18 NPTF
PBH-371-8FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Female 1/2 - 14 NPTF
PER-251-4FP Connects with RF style nipples 1/4 Female 1/4 - 18 NPTF
PER-251-4MP Connects with RF style nipples 1/4 Male 1/4 - 18 NPTF
PER-251-6FP Connects with RF style nipples 1/4 Female 3/8 - 18 NPTF
PER-251-6MP Connects with RF style nipples 1/4 Male 3/8 - 18 NPTF
