Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

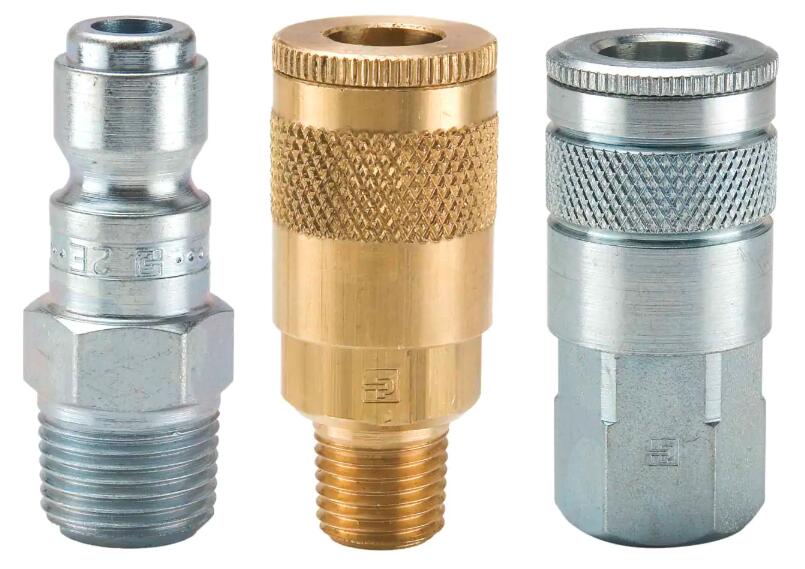

Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate interchange - 10 Series Couplers

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.





10 Series Couplers (pneumatic) up to 300 psi connect with 10 Series Nipples, Tru-Flate design, also known as the automotive interchange. They have manual sleeves and are single shut off quick couplings. Couplers have an integral sleeve guard to resist accidental disconnection. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a range of sizes and materials to be versatile for use in a variety of applications with air or fluid pressures up to 300 psi.





Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate interchange - 10 Series Couple



Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Materials: Brass, Steel
- Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
- Seal Options: Nitrile, Ethylene Propylene, Fluorocarbon

Markets:
- Automotive service and repair
- Industrial
- Construction
- Factory automation

Features/Benefits:
- Original Tru-Flate design, developed for the automotive industry
- High flow valves with minimal pressure drop for efficient performance
- Sleeve guard helps to prevent accidental disconnection when in use
- Optional sleeve-lock adds additional protection against accidental disconnection
- Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn
- Stainless steel springs, locking balls and brass valves are also offered for corrosion resistance
- Steel sleeve option is available for increased durability

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Water lines
- Grease guns
- Cleaning equipment
- Paint applicators
- Drop-down air lines
- Blow guns



Technical Specifications

Media: Low pressure fluids and compressed air
Minimum Operating Temperature: -40 °F
Application: Pneumatic
Plating Type: Zinc with clear trivalent chromate
Sleeve Type: Manual
Lock Type: Locking balls
Maximum Operating Pressure: 300 psi, 20 bar
Coupling Half: Coupler
Specifications Met: Tru-Flate design
Seal Material: Nitrile
Body Size: 1/4, 3/8, 1/2 inch
Maximum Operating Temperature: 250M2:N43 °F, 121 °C
Valve Type: High Flow Air
Brand: Parker
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Tru-Flate
Materials of Construction: Steel, Brass
Vacuum Pressure Rating: No



Automotive Air Hose and Tool Quick Couplings (pneumatic, air) Tru-Flate interchange - 10 Series Couplers 型号

Part Body Size (inch) Body Material Connection Type Thread Style Connection Thread Size (inch) Connection Hose I.D. (inch)
14 3/8 Steel NPTF Male 3/8 - 18 na
14-5B 3/8 Steel Hose barb na na 3/8
14-5BP 3/8 Steel Push-Lok hose barb na na 3/8
14-6B 3/8 Steel Hose barb na na 1/2
14C 3/8 Steel NPTF Male 1/4 - 18 na
14F 3/8 Steel NPTF Male 1/2 - 14 na
15 3/8 Steel NPTF Female 3/8 - 18 na
15C 3/8 Steel NPTF Female 1/4 - 18 na
15F 3/8 Steel NPTF Female 1/2 - 14 na
B10-3B 1/4 Brass Hose barb na na 1/4
B10-3BP 1/4 Brass Push-Lok hose barb na na 1/4
B10-4B 1/4 Brass Hose barb na na 5/16
B10-5B 1/4 Brass Hose barb na na 3/8
B10-5BP 1/4 Brass Push-Lok hose barb na na 3/8
B12 1/4 Brass NPTF Male 1/4 - 18 na
B12A 1/4 Brass NPTF Male 1/8 - 27 na
B12E 1/4 Brass NPTF Male 3/8 - 18 na
B13 1/4 Brass NPTF Female 1/4 - 18 na
B13A 1/4 Brass NPTF Female 1/8 - 27 na
B13E 1/4 Brass NPTF Female 3/8 - 18 na
B14 3/8 Brass NPTF Male 3/8 - 18 na
B15 3/8 Brass NPTF Female 3/8 - 18 na
