Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
PPA Series Nipples - OBSOLETE

Note: This product is no longer available from Parker. Parker's thermoplastic quick couplers and nipples are ideal for use across a broad range of low pressure applications where fluid or gas lines require fast and easy connection and disconnection.





Note: This product is no longer available from Parker.

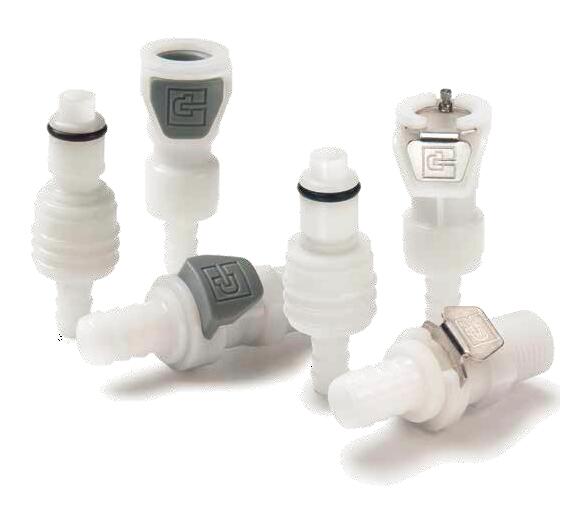

PPA Series Nipples (thermoplastic) vacuum up to 120 psi, connect with PPA Series Couplers.
Parker's PPA Series are low pressure, push-to-connect couplings with a plastic latch push button release. The fully plastic exterior makes them non-marring to most surfaces and resistant to many chemicals. PPA Series will interconnect with other similar plastic latch push button couplings. The couplers and nipples are available with or without valves and can be used in any combination. Couplers and nipples are available in 1/4" size.



PPA Series Nipples - OBSOLETE



Technical Characteristics:
- Size: 1/4”
- Materials: Body: Acetal Copolymer, Spring: Stainless Steel
- Port Ends: Hose Barb
- Seal Material: Nitrile

Markets:
- Medical
- Testing
- Chemical Processing
- Food and Beverage
- Industrial

Features/Benefits:
- Push button release guards against accidental disconnection
- Acetal body material and stainless springs are compatible with many chemicals
- Valved and unvalved couplers and nipples can be used together in any combination to provide the ability to mix and match flow functions
- Quick, intuitive operation with an audible "click" and tactile feedback to confirm a full connection
- More cost-effective than metal couplings

Applications:
- Medical devices
- Laboratory equipment
- Fluid conveyance
- Food and beverage processing and packaging
- Industrial
- Process equipment



Technical Specifications

Maximum Operating Pressure: 120 psi, 8 bar
Maximum Operating Temperature: 82 °C, 180 °F
Materials of Construction: Delrin Acetal
Application: Fluids and gases, vacuum to low pressure, Vacuum to low pressure fluids and gases
Valve Type: Poppet, No Valve, Poppet, unvalved
Brand: Parker
Vacuum Pressure Rating: Yes
Fitting Connection Type: Hose Barb
Body Size: 1/4 inch
Flow Rate: 0.42 to 1.40 with same valve configuration in mating half Cv
Seal Material: Nitrile
Media: Air, fluids and chemicals
Coupling Half: Nipple
Minimum Operating Temperature: -40 °F
Connection Type: Hose barb
Spring Material: Stainless steel



PPA Series Nipples - OBSOLETE 型号

Part Connection Tube I.D. (inch) Valve Style
PPA-252-4HB 1/4 Poppet
PPA-252-6HB 3/8 Poppet
PPA-254-4HB 1/4 Unvalved
PPA-254-6HB 3/8 Unvalved
