Parker Fittings接头
Hose Fittings

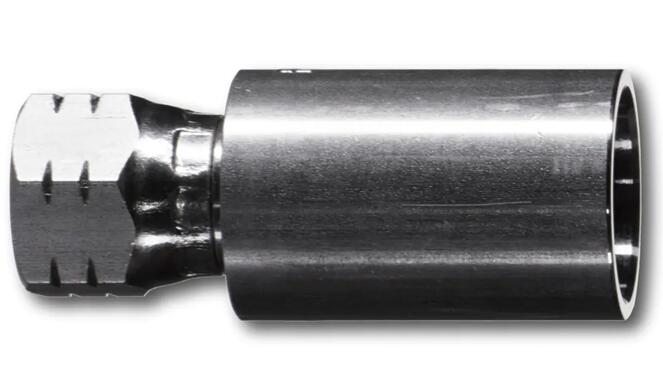

Crimped Thermoplastic Oil & Gas Hose Fittings, RX Series

Parker RX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose types with working pressure up to 43 MPa.





Parker RX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient.





Markets:
- Oil & Gas
- Marine

Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.

Applications:
- Long length subsea umbilicals
- for use with chemical fluids
- for use with medium pressure, high temperature, low volumentric expansion hoses
- Suitable for hose types with working pressure up to 43 MPa (5.000 psi)





Technical Specifications

Length: 2,24, 2,17, 1,85, 1,77, 1,89 inch
Maximum Operating Pressure: 6250 psi
Shape: Straight
Materials of Construction: Stainless Steel

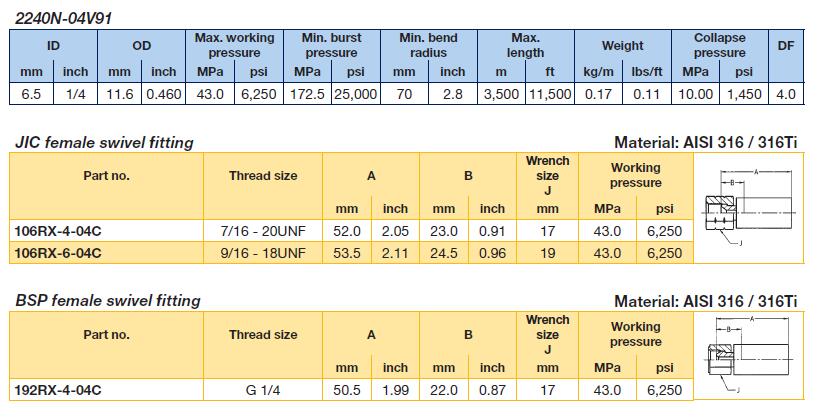

Crimped Thermoplastic Oil & Gas Hose Fittings, RX Series 型号

Part Maximum Working Pressure (MPa) Style Fitting Type Connection Thread Size (inch) Length (mm)
106RX-4-04C 43 JIC female swivel fitting 6 7/16 - 20UNF 57
106RX-6-04C 43 JIC female swivel fitting 6 9/16 - 18UNF 55
106RX-6-06C 43 JIC female swivel fitting 6 9/16 - 18UNF 47
192RX-4-04C 43 BSP female swivel fitting 92 G 1/4 45
192RX-6-06C 43 BSP female swivel fitting 92 G3/8 48
