Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

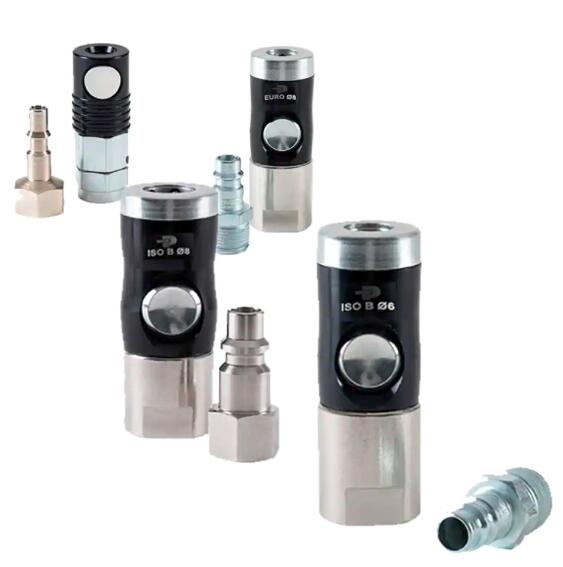

Safety Push Button Quick Coupling, Series KP

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.





Parker's Safety Quick Coupling Series KP is a safety coupling with pushing button integrating self-venting system according to ISO 6150 B, ISO 6150 C and EURO. The self-venting takes place during disconnection in 2 steps – no risk of pressurized hoses being tossed around. When the pushing buttind is pressed one time, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by pressing the button again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place and make the use easy.



Safety Push Button Quick Coupling, Series KP



The right plug for self-venting series KP can be found as followings :
- ISO 6150 B; DN 5,5 : Plug series 23
- ISO 6150 B; DN 8 : Plug series 30
- ISO 6150 C; DN 5,5 : Plug series 18
- ISO 6150 B; DN 8 : Plug series 84
- EURO; DN 7,4 : Plug series 25

Markets:
- Machinery Construction
- Automotive
- Industrial process factory

Features/Benefits:
- Safety coupling with self-venting mechanism
- No whiplash effect due to the self-venting which takes place during disconnection
- Easy to connect and discconnet with one hand

Applications:
- Workshops
- Cleaning
- Blowing
- Pneumatics
- Air-Operated Tools
- Ring Main Circuits
- Packaging



Technical Specifications

Body Material: ANODISED ALUMINIUM, NICKEL-PLATED BRASS
Maximum Operating Pressure: 12 bar
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 100 °C
Quantity per Box: 5
Weight: 0,13 to 0,18 kg
Industry Application: Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging
Media: Compressed air
Specifications Met: REACH, ROHS, ISO 4414
O-Ring Material: NBR



Safety Push Button Quick Coupling, Series KP 型号

Part Profile Connection Type Connection Size Nominal Inside Diameter
18KPAW13APX ISO C Male BSPP G1/4 5.5mm
18KPAW17APX ISO C Male BSPP G3/8 5.5mm
18KPAW21APX ISO C Male BSPP G1/2 5.5mm
18KPIW13APX ISO C Female BSPP G1/4 5.5mm
18KPIW17APX ISO C Female BSPP G3/8 5.5mm
18KPIW21APX ISO C Female BSPP G1/2 5.5mm
18KPTF06APX ISO C With Hose Barb ? 6 mm 5.5mm
18KPTF08APX ISO C With Hose Barb ? 8 mm 5.5mm
18KPTF09APX ISO C With Hose Barb ? 9 mm 5.5mm
18KPTF13APX ISO C With Hose Barb ? 13 mm 5.5mm
24KPAW13APX ISO B Male BSPP G1/4 5.5mm
24KPAW17APX ISO B Male BSPP G3/8 5.5mm
24KPAW21APX ISO B Male BSPP G1/2 5.5mm
24KPIW13APX ISO B Female BSPP G1/4 5.5mm
24KPIW17APX ISO B Female BSPP G3/8 5.5mm
24KPIW21APX ISO B Female BSPP G1/2 5.5mm
24KPTF06APX ISO B With Hose Barb ? 6 mm 5.5mm
24KPTF08APX ISO B With Hose Barb ? 8 mm 5.5mm
24KPTF10APX ISO B With Hose Barb ? 10 mm 5.5mm
26KPAW13APX EURO Male BSPP G1/4 7.4mm
26KPAW17APX EURO Male BSPP G3/8 7.4mm
26KPAW21APX EURO Male BSPP G1/2 7.4mm
26KPIW13APX EURO Female BSPP G1/4 7.4mm
26KPIW17APX EURO Female BSPP G3/8 7.4mm
26KPIW21APX EURO Female BSPP G1/2 7.4mm
26KPTF06APX EURO With Hose Barb ? 6 mm 7.4mm
26KPTF08APX EURO With Hose Barb ? 8 mm 7.4mm
26KPTF10APX EURO With Hose Barb ? 10 mm 7.4mm
26KPTF13APX EURO With Hose Barb ? 13 mm 7.4mm
30KPAW13APX ISO B Male BSPP G1/4 8mm
30KPAW17APX ISO B Male BSPP G3/8 8mm
30KPAW21APX ISO B Male BSPP G1/2 8mm
30KPIW13APX ISO B Female BSPP G1/4 8mm
30KPIW17APX ISO B Female BSPP G3/8 8mm
30KPIW21APX ISO B Female BSPP G1/2 8mm
30KPTF08APX ISO B With Hose Barb ? 8 mm 8mm
30KPTF10APX ISO B With Hose Barb ? 10 mm 8mm
84KPAW13APX ISO C Male BSPP G1/4 8mm
84KPAW17APX ISO C Male BSPP G3/8 8mm
84KPAW21APX ISO C Male BSPP G1/2 8mm
84KPIW13APX ISO C Female BSPP G1/4 8mm
84KPIW17APX ISO C Female BSPP G3/8 8mm
84KPIW21APX ISO C Female BSPP G1/2 8mm
84KPTF10APX ISO C With Hose Barb ? 10 mm 8mm
84KPTF13APX ISO C With Hose Barb ? 13 mm 8mm
