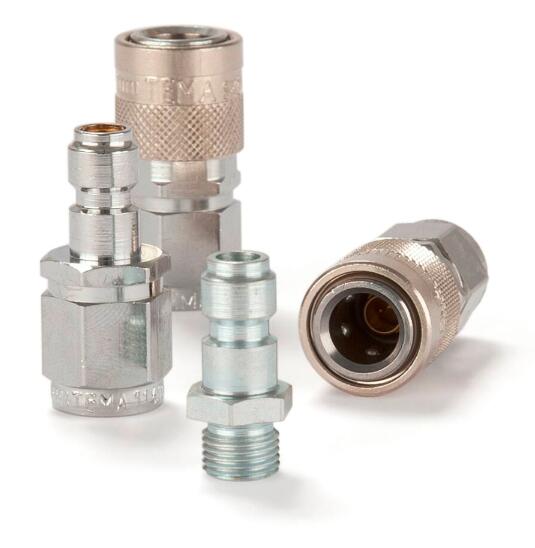

Premium Plus Quick Coupling with Scandinavian Profile, Series 1100
Premium plus quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 30 bar. Coupling system with Scandinavian profile. Available made of brass/steel.
Parker's series 1100 is used mainly for applications in the area of compressed air and liquids. Robust design with small dimensions. Optimally suited to smaller pneumatic systems and to compressed air tools with a consumption of up to 900 litres per minute.
Coupling systems with two-hand operation, i.e. both hands are required when connect/disconnect.
Premium Plus Quick Coupling with Scandinavian Profile, Series 1100
Markets:
- Machinery Construction
- Automotive
- Aerospace
- Mobile Hydraulics
Features/Benefits:
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Robust design with small dimensions
- Two-hand operation
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5.5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Flow Rate: |
114, 153 Gal/min, 430, 580 L/min |
| Interchange Type: |
Scandinavia |
| Maximum Operating Pressure: |
290, 430 psi, 20, 30 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes, No |
| Length: |
27, 33, 36, 37, 38 mm |
| Hex Size: |
na, 12, 15 mm |
| Outside Diameter: |
na, 18 mm |
| Materials of Construction: |
Brass, Steel |
Premium Plus Quick Coupling with Scandinavian Profile, Series 1100 型号
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
| 1100KAAW13MPC |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
| 1100KAIW10MPC |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
| 1100KBAW13MPC |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
| 1100KBIW10MPC |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
| 1100SBIW10MPC |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/8 |
na |
| 1100SFAW10SXZ |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
| 1100SFIW10SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
| 1100SFTF05SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
5 |
| 1100SFTF06SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
6 |
|
