Parker Quick Couplings

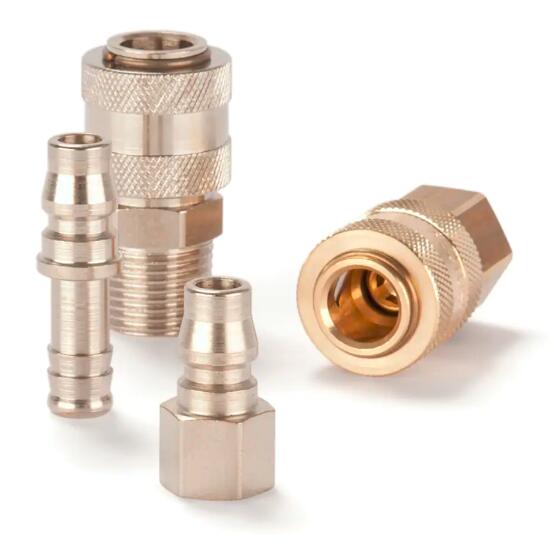

Quick Coupling with Japanese Industrial Profile, Series 13
Quick coupling system with nominal diameter 7.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Japanese industrial profile. Available made of brass.
Parker's Series 13 is a robust brass coupling with Japanese industrial profile.
The coupling system is developed for single-hand operation. Series 13 stands out for its above average flow volumes and structure resistant to the effects of external forces.
Quick Coupling with Japanese Industrial Profile, Series 13
Markets:
- Machinery Construction
- Automotive
- Industrial
Features/Benefits:
- Single-hand operation for easy and fast connection
- Above average flow volumes
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 7,5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Asia |
| Materials of Construction: |
Brass |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
37 to 62 mm |
| Hex Size: |
14 to 24 mm |
| Outside Diameter: |
15 to 27 mm |
| Flow Rate: |
1150 L/min |
Quick Coupling with Japanese Industrial Profile, Series 13 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 13KAAK13MPN |
Coupling |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 13KAAK13MPX |
Coupling |
Male Thread - tapered |
1/4 |
na |
Brass |
| 13KAAK17MPN |
Coupling |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 13KAAK17MPX |
Coupling |
Male Thread - tapered |
3/8 |
na |
Brass |
| 13KAAK21MPN |
Coupling |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 13KAAK21MPX |
Coupling |
Male Thread - tapered |
1/2 |
na |
Brass |
| 13KAIW13MPN |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 13KAIW13MPX |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass |
| 13KAIW17MPN |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 13KAIW17MPX |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass |
| 13KAIW21MPN |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 13KAIW21MPX |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass |
| 13KATF06MPN |
Coupling |
Hose Barb |
na |
6 |
Brass nickel plated |
| 13KATF06MPX |
Coupling |
Hose Barb |
na |
6 |
Brass |
| 13KATF08MPN |
Coupling |
Hose Barb |
na |
8 |
Brass nickel plated |
| 13KATF08MPX |
Coupling |
Hose Barb |
na |
8 |
Brass |
| 13KATF10MPN |
Coupling |
Hose Barb |
na |
10 |
Brass nickel plated |
| 13KATF10MPX |
Coupling |
Hose Barb |
na |
10 |
Brass |
| 13KATF13MPN |
Coupling |
Hose Barb |
na |
13 |
Brass nickel plated |
| 13KATF13MPX |
Coupling |
Hose Barb |
na |
13 |
Brass |
| 13SFAK13SXN |
Plug |
Male Thread - tapered |
1/4 |
na |
Steel nickel plated |
| 13SFAK17SXN |
Plug |
Male Thread - tapered |
3/8 |
na |
Steel nickel plated |
| 13SFAK21SXN |
Plug |
Male Thread - tapered |
1/2 |
na |
Steel nickel plated |
| 13SFIW13SXN |
Plug |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 13SFIW17SXN |
Plug |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 13SFTF06SXN |
Plug |
Hose Barb |
na |
6 |
Steel nickel plated |
| 13SFTF08SXN |
Plug |
Hose Barb |
na |
8 |
Steel nickel plated |
| 13SFTF10SXN |
Plug |
Hose Barb |
na |
10 |
Steel nickel plated |
| 13SFTF13SXN |
Plug |
Hose Barb |
na |
13 |
Steel nickel plated |
|
