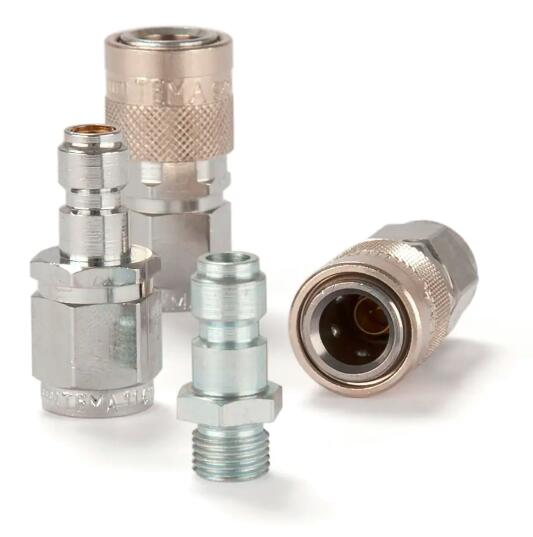

Premium Plus Quick Coupling with Scandinavian Profile, Series 1300
Premium plus quick coupling system with nominal diameter 7.4 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Scandinavian profile. Available made of brass/steel or stainless steel.
Parker's series 1300 is used mainly for applications in the area of compressed air and liquids. Optimally suited to smaller to medium-sized pneumatic systems and to compressed air tools. The coupling series stands out for its compact design and high flow rates with the Ultra HighFlow valve. Coupling body made of nitrocarburized steel.
Premium Plus Quick Coupling with Scandinavian Profile, Series 1300
Markets:
- Machinery Construction
- Automotive
- Aerospace
- Mobile Hydraulic
Features/Benefits:
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Compact design
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20, -25 °C |
| Diameter: |
Nominal: 7.4 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Flow Rate: |
201, 304 Gal/min, 760, 1150 L/min |
| Interchange Type: |
Scandinavia |
| Materials of Construction: |
Brass, Stainless Steel |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212, 392 °F, 100, 200 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Valve Included: |
Yes, No |
| Hex Size: |
13 up to 27 mm |
| Outside Diameter: |
na, 12, 22, 26 mm |
| Seal Material: |
NBR, FKM |
Premium Plus Quick Coupling with Scandinavian Profile, Series 1300 型号
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Length (mm) |
Material |
| 1300KAAK13MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
58 |
Brass nickel plated |
| 1300KAAK17MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
56 |
Brass nickel plated |
| 1300KAAK21MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
59 |
Brass nickel plated |
| 1300KAIW13EVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
49 |
AISI 316 |
| 1300KAIW13MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
55 |
Brass nickel plated |
| 1300KAIW17MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
55 |
Brass nickel plated |
| 1300KATF06MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
78 |
Brass nickel plated |
| 1300KATF08MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
8 |
78 |
Brass nickel plated |
| 1300KATF10MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
10 |
78 |
Brass nickel plated |
| 1300KATF13MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
13 |
77 |
Brass nickel plated |
| 1300KBAW17MPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
49 |
Brass nickel plated |
| 1300KBIW13EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
49 |
AISI 316 |
| 1300KBIW13MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
49 |
Brass nickel plated |
| 1300KBIW17MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
50 |
Brass nickel plated |
| 1300SBIW13EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
44 |
AISI 316 |
| 1300SBIW13MPC |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
44 |
Brass nickel plated |
| 1300SFAK10SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/8 |
na |
35 |
Brass nickel plated |
| 1300SFAK13SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
38 |
Brass nickel plated |
| 1300SFAK17SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
38 |
Brass nickel plated |
| 1300SFAK21SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
40 |
Brass nickel plated |
| 1300SFAW13SXZ |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
35 |
Brass nickel plated |
| 1300SFIW10SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
32 |
Brass nickel plated |
| 1300SFIW13EXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
36 |
AISI 316 |
| 1300SFIW13SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
36 |
Brass nickel plated |
| 1300SFIW17SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
36 |
Brass nickel plated |
| 1300SFIW21SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
39 |
Brass nickel plated |
| 1300SFTF06SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
6 |
44 |
Brass nickel plated |
| 1300SFTF08SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
8 |
44 |
Brass nickel plated |
| 1300SFTF10SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
10 |
44 |
Brass nickel plated |
| 1300SFTF12SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
12 |
47 |
Brass nickel plated |
| 1300SRIW13SXZ |
Plug |
Single Shut-Off |
Recoil Eliminator, with Female Thread |
1/4 |
na |
53 |
Brass nickel plated |
|
