Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

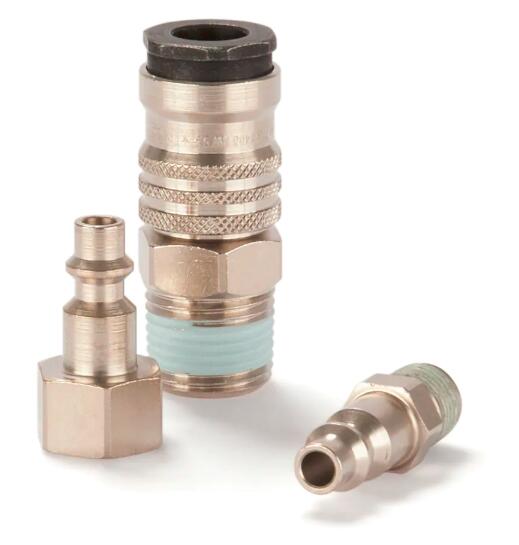

Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400

Premium plus quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.





Parker's Premium Plus Quick Coupling Series 1400 is an industrial coupling 1/4" with a plug profile according to ISO 6150 B. This coupling system is suitable for compressed air applications with greater than average air consumption.
The series 1400 is developed for single-hand operation. The Ultra HighFlow valve guarantees optimum flow and low pressure drop.

The right plug for series 1400 can be found under series 23.



Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400



Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Single-hand operation for easy and fast connection

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 5,5 mm
Application: Pneumatic & Fluid Handling
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Specifications Met: ISO 6150 B, MIL
Interchange Type: ISO 6150 B
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: High Flow Air, Poppet
Valve Included: Yes
Version: Single Shut-Off
Length: 59 to 80 mm
Hex Size: 19 to 24 mm
Outside Diameter: 23 mm
Materials of Construction: Brass
Seal Material: NBR
Flow Rate: 940 L/min



Premium Plus Quick Coupling with ISO 6150 B Profile, Series 1400 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
1400KAAK13SPN Coupling Male Thread - tapered 1/4 na
1400KAAK17SPN Coupling Male Thread - tapered 3/8 na
1400KAAK21SPN Coupling Male Thread - tapered 1/2 na
1400KAIW13SPN Coupling Female Thread - parallel 1/4 na
1400KAIW17SPN Coupling Female Thread - parallel 3/8 na
1400KAIW21SPN Coupling Female Thread - parallel 1/2 na
1400KATF06SPN Coupling Hose Barb na 6
1400KATF08SPN Coupling Hose Barb na 8
1400KATF10SPN Coupling Hose Barb na 10
1400KATF13SPN Coupling Hose Barb na 13
