Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

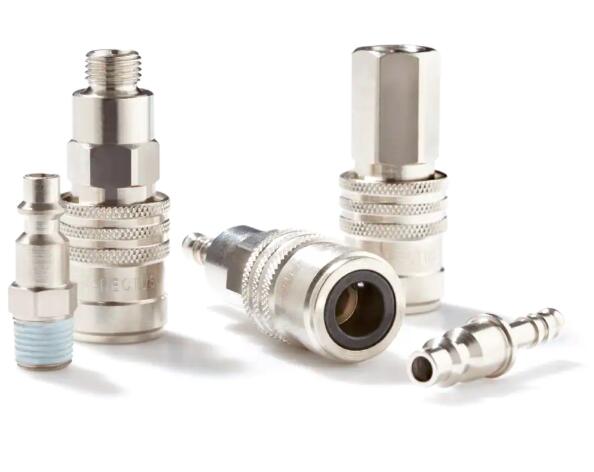

Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1400

Premium plus self-venting quick coupling system with nominal diameter 5.5 for pneumatic applications up to 12 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.





Parker's Premium Plus Safety Quick Coupling Series 1400 is a safety coupling 1/4" with a self-venting system according to ISO 6150 B. The self-venting takes place during disconnection – no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place. The Ultra HighFlow valve guarantees optimum flow and low pressure drop.

The right plug for self-venting series 1400 can be found under series 23.



Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1400



Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- Safety Coupling with self-venting mechanism according to ISO 6150 B
- No whiplash effect due to the self-venting which takes place during disconnection
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Compact & robust design due to the hardened valve body
- Low connection forces

Applications:
- Pneumatic Tools
- Pneumatic Airline Systems
- Assembly Lines



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 5,5 mm
Application: Pneumatic
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Specifications Met: ISO 6150 B, MIL
Interchange Type: ISO 6150 B
Maximum Operating Pressure: 170 psi, 12 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: High Flow Air, Poppet
Seal Material: NBR
Valve Included: Yes or No acc. to the version
Version: Self-Venting
Length: 36 to 82,5 mm
Hex Size: 13 to 24 mm
Outside Diameter: 25 to 26 mm
Materials of Construction: Steel



Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1400 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
1400KEAW13SPN Coupling Male Thread - parallel 1/4 na
1400KEAW17SPN Coupling Male Thread - parallel 3/8 na
1400KEAW21SPN Coupling Male Thread - parallel 1/2 na
1400KEIW13SPN Coupling Female Thread - parallel 1/4 na
1400KEIW17SPN Coupling Female Thread - parallel 3/8 na
1400KEIW21SPN Coupling Female Thread - parallel 1/2 na
1400KETF06SPN Coupling Hose Barb na 6
1400KETF08SPN Coupling Hose Barb na 8
1400KETF10SPN Coupling Hose Barb na 10
1400KETF13SPN Coupling Hose Barb na 13
