Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

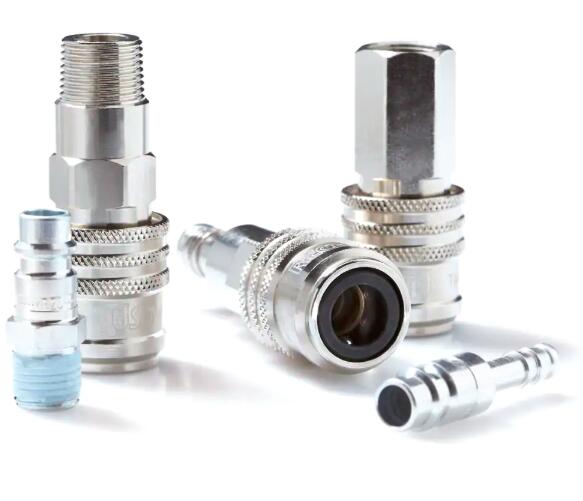

Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1600

Premium plus self-venting quick coupling system with nominal diameter 7.8 for pneumatic applications up to 12 bar. Coupling system with European standard profile. Available made of brass/steel.





Parker's Premium Plus Safety Quick Coupling Series 1600 is a safety coupling with a self-venting system. The self-venting takes place during disconnection – no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place. The Ultra HighFlow valve guarantees optimum flow and low pressure drop.

The right plug for self-venting series 1600 can be found under series 25.



Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1600



Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- Safety Coupling with self-venting mechanism
- No whiplash effect due to the self-venting which takes place during disconnection
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Compact & robust design due to the hardened valve body
- Low connection forces

Applications:
- Pneumatic Tools
- Pneumatic Airline Systems
- Assembly Lines



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 7.8 mm
Application: Pneumatic
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Europe
Maximum Operating Pressure: 170 psi, 12 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: High Flow Air, Poppet
Valve Included: Yes
Version: Self-Venting
Length: 59 up to 79,5 mm
Hex Size: 19 up to 24 mm
Outside Diameter: 26 mm
Materials of Construction: Steel
Seal Material: NBR
Safety Features: Self-Venting



Premium Plus Safety Quick Coupling with a Self-Venting System, Series 1600 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
1600KEAK13SPN Coupling Male Thread - tapered 1/4 na
1600KEAK17SPN Coupling Male Thread - tapered 3/8 na
1600KEAK21SPN Coupling Male Thread - tapered 1/2 na
1600KEIW13SPN Coupling Female Thread - parallel 1/4 na
1600KEIW17SPN Coupling Female Thread - parallel 3/8 na
1600KEIW21SPN Coupling Female Thread - parallel 1/2 na
1600KETF06SPN Coupling Hose Barb na 6
1600KETF09SPN Coupling Hose Barb na 9
1600KETF10SPN Coupling Hose Barb na 10
1600KETF13SPN Coupling Hose Barb na 13
