Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

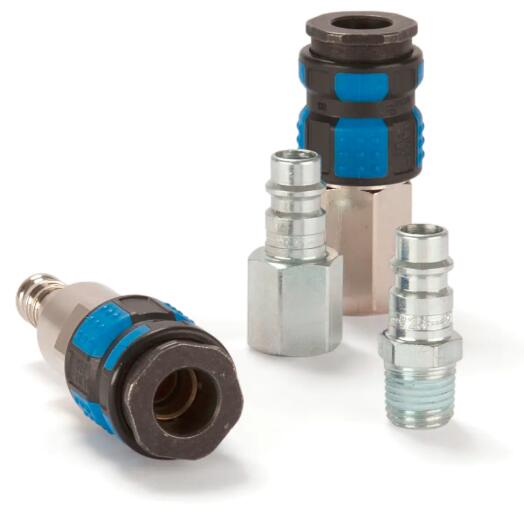

Premium Plus Quick Coupling with European Standard Profile, Series 1625

Premium plus quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard profile. Available made of brass/steel with 2-component plastic sleeve.





Parker's premium industrial coupling 3/8" with European standard profile. Suitable for compressed air applications with greater than average air consumption.
Coupling system with single-hand operation. Ultra HighFlow valve for optimum flow and low pressure drop. Extremely robust and ergonomically shaped, 2-component plastic sleeve.

The right plug for series 1625 can be found under series 25.



Premium Plus Quick Coupling with European Standard Profile, Series 1625



Markets:
- Machinery Construction
- Automotive
- Life Science
- Process
- Food & Beverage
- Rescue Equipment
- Aerospace
- Mobile Hydraulics
- Industrial
- Machine Tooling
- Material Handling

Features/Benefits:
- Premium Industrial Coupling with European Standard Profile
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Robust valve body made of steel for heavy duty applications
- Available with ergonomic 2 component plastic sleeve
- Low connecting forces (ball locking)

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 7.8 mm
Application: Pneumatic & Fluid Handling
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Europe
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 104 °F, 40 °C
Media: Pneumatic Media
Valve Type: High Flow Air, Poppet
Valve Included: Yes
Version: Single Shut-Off
Length: 59 up to 80 mm
Hex Size: 19 to 24 mm
Outside Diameter: 26 mm
Materials of Construction: Steel
Seal Material: NBR
Flow Rate: 2200 L/min



Premium Plus Quick Coupling with European Standard Profile, Series 1625 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
1625KAAK13SPN Coupling Male Thread - tapered 1/4 na
1625KAAK17SPN Coupling Male Thread - tapered 3/8 na
1625KAAK21SPN Coupling Male Thread - tapered 1/2 na
1625KAIW13SPN Coupling Female Thread - parallel 1/4 na
1625KAIW17SPN Coupling Female Thread - parallel 3/8 na
1625KAIW21SPN Coupling Female Thread - parallel 1/2 na
1625KATF06SPN Coupling Hose Barb na 6
1625KATF08SPN Coupling Hose Barb na 8
1625KATF09SPN Coupling Hose Barb na 9
1625KATF10SPN Coupling Hose Barb na 10
1625KATF13SPN Coupling Hose Barb na 13
