Parker Quick Couplings

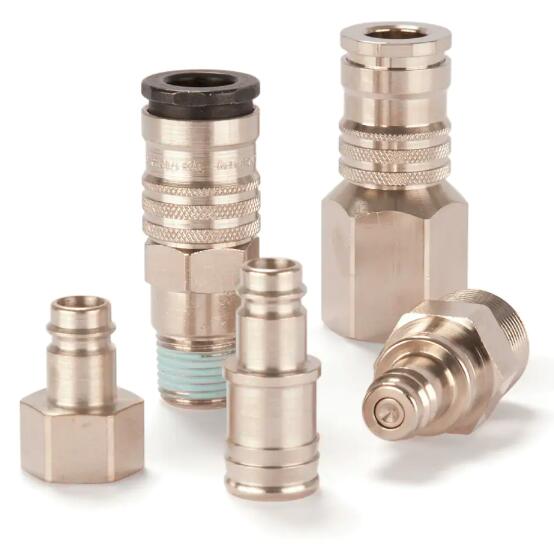

Premium Plus Quick Coupling with European Standard Profile, Series 1700
Premium plus quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with standard European profile. Available made of brass/steel.
Parker's Premium Plus Quick Coupling Series 1700 is an industrial coupling 1/2" with standard European profile. This coupling system is suitable for compressed air applications with greater than average air consumption. It achieves above-average flow values compared with standard market products.
The coupling system is developed for single-hand operation. The Ultra HighFlow valve guarantees optimum flow and low pressure drop.
The right plug for series 1700 can be found under series 27.
Premium Plus Quick Coupling with European Standard Profile, Series 1700
Markets:
- Machinery Construction
- Automotive
- Life Science
- Process
- Food & Beverage
- Aerospace
- Mobile Hydraulics
- Industrial
- Machine Tooling
- Material Handling
Features/Benefits:
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Single-hand operation for easy and fast connection
- Above-average flow values compared with standard market products
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 10 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Europe |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Valve Included: |
Yes |
| Length: |
64 up to 80 mm |
| Hex Size: |
24 up to 32 mm |
| Outside Diameter: |
27 mm |
| Materials of Construction: |
Brass |
| Seal Material: |
NBR |
| Flow Rate: |
1054 to 3580 L/min |
Premium Plus Quick Coupling with European Standard Profile, Series 1700 型号
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
| 1700KAAK17SPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
| 1700KAAK21SPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
| 1700KAAK26SPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
3/4 |
na |
| 1700KAIW17SPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
| 1700KAIW21SPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
| 1700KAIW26SPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
| 1700KATF10SPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
10 |
| 1700KATF13SPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
13 |
| 1700KATF16SPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
16 |
| 1700KBAW17BPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
| 1700KBAW21BPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
| 1700KBAW26BPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
3/4 |
na |
| 1700KBIW17BPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
| 1700KBIW21BPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
| 1700KBIW26BPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
| 1700KBTF10BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
10 |
| 1700KBTF13BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
| 1700KBTF16BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
16 |
| 1700KBTF19BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
|
