Parker Quick Couplings

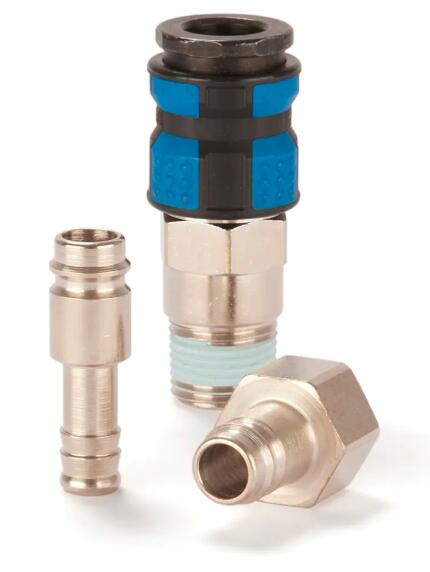

Premium Plus Quick Coupling with European Standard Profile, Series 1727
Premium plus quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard profile. Available made of brass/steel with 2-component plastic sleeve.
Parker's premium industrial coupling 1/2" with standard European profile. This coupling system is suitable for compressed air applications with greater than average air consumption. It achieves above-average flow values compared with standard market products.
Coupling system with single-hand operation. The used Ultra HighFlow valve guarantees optimum flow and low pressure drop. Coupling system with extremely robust and ergonomically shaped, 2-component plastic sleeve.
The right plug for series 1727 can be found under series 27.
Premium Plus Quick Coupling with European Standard Profile, Series 1727
Markets:
- Machinery Construction
- Automotive
- Life Science
- Process
- Food & Beverage
- Aerospace
- Mobile Hydraulics
- Industrial
- Machine Tooling
- Material Handling
Features/Benefits:
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Single-hand operation for easy and fast connection
- Higher working pressure and above-average flow values compared with standard market products
- Very low connecting forces
- Available with ergonomic 2 component plastic sleeve
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 10 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Europe |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
104 °F, 40 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Valve Included: |
Yes |
| Version: |
Single Shut-Off |
| Length: |
64 to 80 mm |
| Hex Size: |
24 to 32 mm |
| Outside Diameter: |
30 mm |
| Materials of Construction: |
Steel |
| Seal Material: |
NBR |
| Flow Rate: |
3580 L/min |
Premium Plus Quick Coupling with European Standard Profile, Series 1727 型号
|
