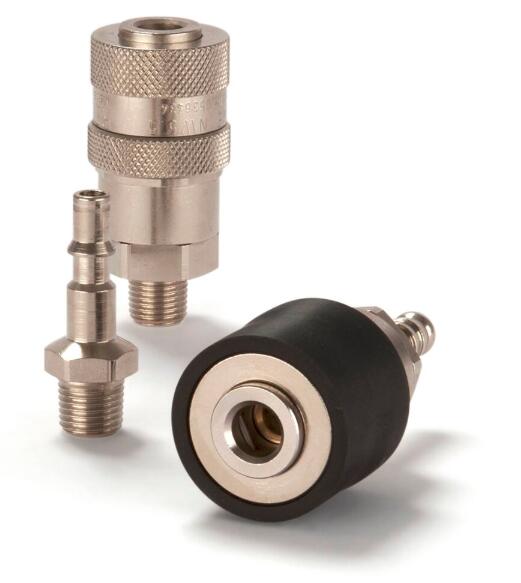

Premium Safety Quick Coupling with a Self-Venting System, Series 18
Premium self-venting quick coupling system with nominal diameter 5.5 for pneumatic applications up to 8 bar. Coupling system with ISO C profile. Available made of brass/steel.
Parker's Premium Safety Quick Coupling Series 18 is a safety coupling with a self-venting system. The self-venting takes place during disconnection – no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place.
The right plug for self-venting series 18 can be found under series 18.
Premium Safety Quick Coupling with a Self-Venting System, Series 18
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- Safety coupling with self-venting mechanism
- No whiplash effect due to the self-venting which takes place during disconnection
Applications:
- Pneumatic Tools
- Pneumatic Airline Systems
- Assembly Lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5,5 mm |
| Application: |
Pneumatic |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO C |
| Interchange Type: |
ISO C |
| Maximum Operating Pressure: |
110 psi, 8 bar |
| Maximum Operating Temperature: |
140 °F, 60 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Self-Venting |
| Length: |
41 to 81 mm |
| Hex Size: |
17 to 24 mm |
| Outside Diameter: |
13 to 30 mm |
| Materials of Construction: |
Brass, Steel |
Premium Safety Quick Coupling with a Self-Venting System, Series 18 型号
|
