Parker Quick Couplings

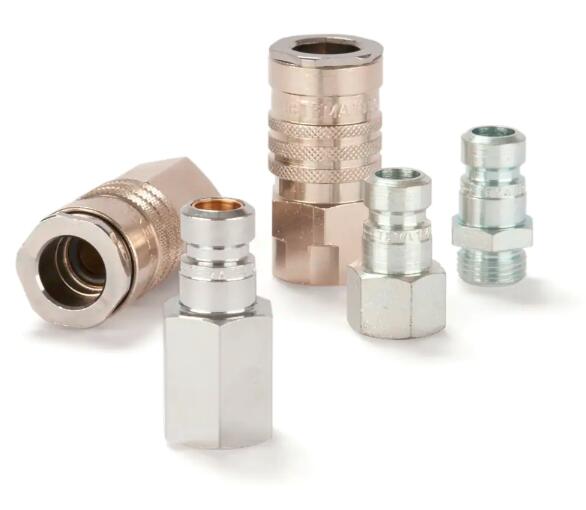

Premium Plus Quick Coupling with Scandinavian Profile, Series 1800
Premium plus quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Scandinavian profile. Available made of brass/steel or stainless steel.
Parker's series 1800 is used mainly for applications in the area of compressed air and liquids. The coupling system stands out for its robust, compact design and its high corrosion resistance. The Ultra HighFlow valve guaranteed an optimum flow and low pressure drop.
Premium Plus Quick Coupling with Scandinavian Profile, Series 1800
Markets:
- Machinery Construction
- Automotive
- Life Science
- Process
- Food Technology
- Aerospace
- Mobile Hydraulics
Features/Benefits:
- Robust and Compact design
- Ultra HighFlow valve for optimum flow and low pressure drop - Energy Saver
- Corrosion resistant
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
Technical Specifications
| Minimum Operating Temperature: |
-20, -25 °C |
| Diameter: |
Nominal: 10 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Flow Rate: |
436, 608 Gal/min, 1650, 2300 L/min |
| Interchange Type: |
Scandinavia |
| Materials of Construction: |
Brass, Stainless Steel |
| Maximum Operating Pressure: |
500, 720 psi, 35, 50 bar |
| Maximum Operating Temperature: |
212, 392 °F, 100, 200 °C |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR, FKM |
| Valve Included: |
Yes, No |
| Length: |
35 up to 82 mm |
| Hex Size: |
17 up to 30 mm |
| Outside Diameter: |
16 up to 27 mm |
Premium Plus Quick Coupling with Scandinavian Profile, Series 1800 型号
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 1800KAAK17MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 1800KAAK21MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 1800KAAK26MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
3/4 |
na |
Brass nickel plated |
| 1800KAAW21EVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 316 |
| 1800KAIW17EVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 |
| 1800KAIW17MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 1800KAIW21EVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 316 |
| 1800KAIW21MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 1800KAIW26MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 1800KATF10MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
10 |
Brass nickel plated |
| 1800KATF13MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 1800KATF16MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
16 |
Brass nickel plated |
| 1800KATF19MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 1800KBAW21EVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 316 |
| 1800KBAW21MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 1800KBIW17EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 |
| 1800KBIW17MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 1800KBIW21EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 316 |
| 1800KBIW21MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 1800KBIW26MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 1800SBAN21MPC |
Plug |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass chrome plated |
| 1800SBIW17EVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 |
| 1800SBIW17MPC |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass chrome plated |
| 1800SBIW21EVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 316 |
| 1800SBIW26MPC |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass chrome plated |
| 1800SFAK10SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/8 |
na |
Steel zinc plated |
| 1800SFAK13SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
Steel zinc plated |
| 1800SFAK17SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Steel zinc plated |
| 1800SFAK21SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Steel zinc plated |
| 1800SFAK26SXZ |
Plug |
Single Shut-Off |
Male Thread - tapered |
3/4 |
na |
Steel zinc plated |
| 1800SFAW13SXZ |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
Steel zinc plated |
| 1800SFAW17EXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 316 |
| 1800SFAW17SXZ |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
Steel zinc plated |
| 1800SFIW13SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Steel zinc plated |
| 1800SFIW17EXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 |
| 1800SFIW17SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Steel zinc plated |
| 1800SFIW21SXZ |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Steel zinc plated |
| 1800SFTF06RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
6 |
AISI 303 |
| 1800SFTF06SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
6 |
Steel zinc plated |
| 1800SFTF08SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
8 |
Steel zinc plated |
| 1800SFTF10SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
10 |
Steel zinc plated |
| 1800SFTF12SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
13 |
Steel zinc plated |
| 1800SFTF16SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
16 |
Steel zinc plated |
| 1800SFTF19SXZ |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
Steel zinc plated |
|
