Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
Premium Plus Quick Coupling with Scandinavian Profile, Series 1900

Premium quick coupling system with nominal diameter 12.4 for pneumatic and fluid handling applications up to 50 bar. Coupling system with Scandinavian profile. Available made of brass.





Parker's robust, corrosion resistant coupling system in brass with high flow values for use with liquids in the pressure range up to 50 bar.
Two-hand operation, i.e. both hands are required when connect/disconnect. The main seal of the coupling has a special disc shape, which extends the durability of the coupling. To guarantee greater flexibility, we also offer plugs with no valve.

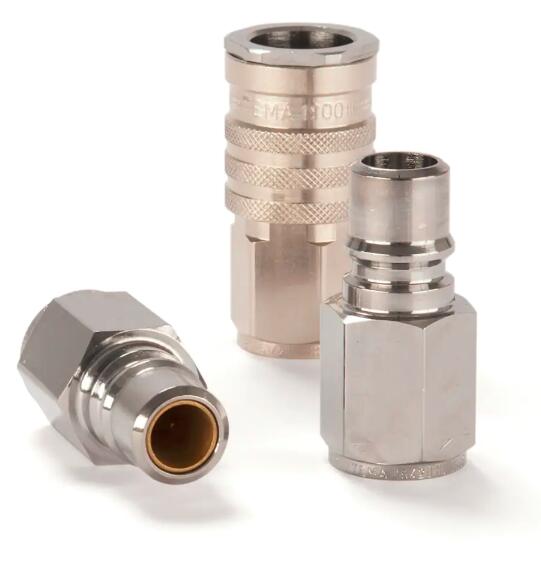

Premium Plus Quick Coupling with Scandinavian Profile, Series 1900



Markets:
- Machinery Construction
- Rescue Equipment
- Aerospace
- Mobile Hydraulics

Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Coupling system made of brass for corrosion resistance
- Main seal with special disc shape for extended durability of the coupling

Applications:
- Air compressors



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 12.4 mm
Application: Pneumatic & Fluid Handling
Brand: Tema
Fitting Connection Type: Female Thread
Flow Rate: 740, 925 Gal/min, 2800, 3500 L/min
Interchange Type: Scandinavia
Maximum Operating Pressure: 725.2 psi, 50 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Gases, Pneumatic Media, Steam, Water
Valve Type: Poppet
Seal Material: NBR
Valve Included: Yes, No
Hex Size: 27, 30 mm
Outside Diameter: na, 33 mm
Materials of Construction: Brass



Premium Plus Quick Coupling with Scandinavian Profile, Series 1900 型号

Part Type Version Connection Type Connection Thread Size (inch) Length (mm)
1900KBIW21MPN Coupling Double Shut-Off Female Thread 1/2 67
1900KBIW26MPN Coupling Double Shut-Off Female Thread 3/4 68
1900SBIW21MPC Plug Double Shut-Off Female Thread 1/2 60
1900SBIW26MPC Plug Double Shut-Off Female Thread 3/4 62
1900SFIW21MXC Plug Single Shut-Off Female Thread 1/2 60
1900SFIW26MXC Plug Single Shut-Off Female Thread 3/4 62
