Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

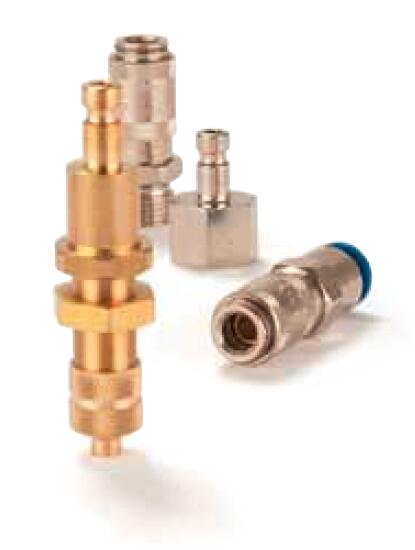

Quick Coupling with an Internationally Used Profile, Series 20

Quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with an internationally used profile. Available made of brass or stainless steel.





Parker's Series 20 is a mini industrial coupling with internationally used profile. It's especially suitable for use in medical technology and chemistry/pharmacy.
The coupling system is developed for single-hand operation. This series has a high flow rate despite its small dimensions, it can be used in various applications and a variety of different media.



Quick Coupling with an Internationally Used Profile, Series 20



Markets:
- Industrial
- Life Sciences
- Transportation
- Machinery Construction
- Automotive
- Process
- Electrical Engineering

Features/Benefits:
- Mini Industrial coupling
- Single hand operation for easy and fast connection
- Worldwide used profile
- Higher flow rates and lower connection/disconnection force compared to competitors

Applications:
- NIBP
- Automation



Technical Specifications

Minimum Operating Temperature: -15 to -20 °C
Diameter: Nominal: 2.7 mm
Application: Pneumatic & Fluid Handling
Brand: Rectus
Fitting Connection Type: various
Flow Rate: 34 to 44 Gal/min, 130, 165 L/min
Interchange Type: Rectus Profile
Materials of Construction: Brass, Stainless Steel
Maximum Operating Pressure: 500 psi, 35 bar
Media: Chemical Fluids, Gases, Pneumatic Media, Steam, Water
Valve Type: Poppet
Seal Material: NBR, FKM
Valve Included: Yes or No acc. to the version
Length: 17 up to 52,5 mm
Outside Diameter: 7 up to 10 mm
Maximum Operating Temperature: 212 to 392 °C



Quick Coupling with an Internationally Used Profile, Series 20 型号

Part Type Version Connection Type Connection Thread Size (inch) Connection Thread Size (mm) Hose I.D. (mm) External Hex (mm) Material
20KAAM05EVX Coupling Single Shut-Off Male Thread - metric na 5 na 9 AISI 316 L
20KAAM05MPN Coupling Single Shut-Off Male Thread - metric na 5 na 9 Brass nickel plated
20KAAM05MPX Coupling Single Shut-Off Male Thread - metric na 5 na 9 Brass
20KAAM05RVX Coupling Single Shut-Off Male Thread - metric na 5 na 9 AISI 303
20KAAW10EVX Coupling Single Shut-Off Male Thread - parallel 1/8 na na 11 AISI 316 L
20KAAW10MPN Coupling Single Shut-Off Male Thread - parallel 1/8 na na 11 Brass nickel plated
20KAAW10MPX Coupling Single Shut-Off Male Thread - parallel 1/8 na na 11 Brass
20KAAW10RVX Coupling Single Shut-Off Male Thread - parallel 1/8 na na 11 AISI 303
20KAIM05EVX Coupling Single Shut-Off Female Thread - metric na 5 na 9 AISI 316 L
20KAIM05MPN Coupling Single Shut-Off Female Thread - metric na 5 na 9 Brass nickel plated
20KAIM05MPX Coupling Single Shut-Off Female Thread - metric na 5 na 9 Brass
20KAIM05RVX Coupling Single Shut-Off Female Thread - metric na 5 na 9 AISI 303
20KAIW10EVX Coupling Single Shut-Off Female Thread - parallel 1/8 na na 12 AISI 316 L
20KAIW10MPN Coupling Single Shut-Off Female Thread - parallel 1/8 na na 12 Brass nickel plated
20KAIW10MPX Coupling Single Shut-Off Female Thread - parallel 1/8 na na 12 Brass
20KAIW10RVX Coupling Single Shut-Off Female Thread - parallel 1/8 na na 12 AISI 303
20KAKO04EVX Coupling Single Shut-Off with Plastic Hose Connection na na 3x4 9 AISI 316 L
20KAKO04MPN Coupling Single Shut-Off with Plastic Hose Connection na na 3x4 9 Brass nickel plated
20KAKO04MPX Coupling Single Shut-Off with Plastic Hose Connection na na 3x4 9 Brass
20KAKO04RVX Coupling Single Shut-Off with Plastic Hose Connection na na 3x4 9 AISI 303
20KAKO05EVX Coupling Single Shut-Off with Plastic Hose Connection na na 3x5 9 AISI 316 L
20KAKO05MPN Coupling Single Shut-Off with Plastic Hose Connection na na 3x5 9 Brass nickel plated
20KAKO05MPX Coupling Single Shut-Off with Plastic Hose Connection na na 3x5 9 Brass
20KAKO05RVX Coupling Single Shut-Off with Plastic Hose Connection na na 3x5 9 AISI 303
20KAKO06EVX Coupling Single Shut-Off with Plastic Hose Connection na na 4x6 9 AISI 316 L
20KAKO06MPN Coupling Single Shut-Off with Plastic Hose Connection na na 4x6 9 Brass nickel plated
20KAKO06MPX Coupling Single Shut-Off with Plastic Hose Connection na na 4x6 9 Brass
20KAKO06RVX Coupling Single Shut-Off with Plastic Hose Connection na na 4x6 9 AISI 303
20KAKS04MPN Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 Brass nickel plated
20KAKS04MPX Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 Brass
20KAKS04RVX Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 AISI 303
20KAKS05MPN Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 Brass nickel plated
20KAKS05MPX Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 Brass
20KAKS05RVX Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 AISI 303
20KAKS06MPN Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass nickel plated
20KAKS06MPX Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass
20KAKS06RVX Coupling Single Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 AISI 303
20KARP04MPN Coupling Single Shut-Off Push-In na na 4 10 Brass nickel plated
20KATF03MPN Coupling Single Shut-Off Hose Barb na na 3 na Brass nickel plated
20KATF03MPX Coupling Single Shut-Off Hose Barb na na 3 na Brass
20KATF03RVX Coupling Single Shut-Off Hose Barb na na 3 na AISI 303
20KATF04EVX Coupling Single Shut-Off Hose Barb na na 4 na AISI 316 L
20KATF04MPN Coupling Single Shut-Off Hose Barb na na 4 na Brass nickel plated
20KATF04MPX Coupling Single Shut-Off Hose Barb na na 4 na Brass
20KATF04RVX Coupling Single Shut-Off Hose Barb na na 4 na AISI 303
20KATF05MPN Coupling Single Shut-Off Hose Barb na na 5 na Brass nickel plated
20KATF05MPX Coupling Single Shut-Off Hose Barb na na 5 na Brass
20KATF05RVX Coupling Single Shut-Off Hose Barb na na 5 na AISI 303
20KATS03MPN Coupling Single Shut-Off Panel Mount with Hose Barb na na 3 12 Brass nickel plated
20KATS03MPX Coupling Single Shut-Off Panel Mount with Hose Barb na na 3 12 Brass
20KATS04MPN Coupling Single Shut-Off Panel Mount with Hose Barb na na 4 12 Brass nickel plated
20KATS04MPX Coupling Single Shut-Off Panel Mount with Hose Barb na na 4 12 Brass
20KATS06MPN Coupling Single Shut-Off Panel Mount with Hose Barb na na 6 12 Brass nickel plated
20KATS06MPX Coupling Single Shut-Off Panel Mount with Hose Barb na na 6 12 Brass
20KBAM05EVX Coupling Double Shut-Off Male Thread - metric na 5 na 9 AISI 316 L
20KBAM05MPN Coupling Double Shut-Off Male Thread - metric na 5 na 9 Brass nickel plated
20KBAM05MPX Coupling Double Shut-Off Male Thread - metric na 5 na 9 Brass
20KBAM05RVX Coupling Double Shut-Off Male Thread - metric na 5 na 9 AISI 303
20KBAW10EVX Coupling Double Shut-Off Male Thread - parallel 1/8 na na 11 AISI 316 L
20KBAW10MPN Coupling Double Shut-Off Male Thread - parallel 1/8 na na 11 Brass nickel plated
20KBAW10MPX Coupling Double Shut-Off Male Thread - parallel 1/8 na na 11 Brass
20KBAW10RVX Coupling Double Shut-Off Male Thread - parallel 1/8 na na 11 AISI 303
20KBIM05EVX Coupling Double Shut-Off Female Thread - metric na 5 na 9 AISI 316 L
20KBIM05MPN Coupling Double Shut-Off Female Thread - metric na 5 na 9 Brass nickel plated
20KBIM05MPX Coupling Double Shut-Off Female Thread - metric na 5 na 9 Brass
20KBIM05RVX Coupling Double Shut-Off Female Thread - metric na 5 na 9 AISI 303
20KBIW10EVX Coupling Double Shut-Off Female Thread - parallel 1/8 na na 12 AISI 316 L
20KBIW10MPN Coupling Double Shut-Off Female Thread - parallel 1/8 na na 12 Brass nickel plated
20KBIW10MPX Coupling Double Shut-Off Female Thread - parallel 1/8 na na 12 Brass
20KBIW10RVX Coupling Double Shut-Off Female Thread - parallel 1/8 na na 12 AISI 303
20KBKO04EVX Coupling Double Shut-Off with Plastic Hose Connection na na 3x4 9 AISI 316 L
20KBKO04MPN Coupling Double Shut-Off with Plastic Hose Connection na na 3x4 9 Brass nickel plated
20KBKO04MPX Coupling Double Shut-Off with Plastic Hose Connection na na 3x4 9 Brass
20KBKO04RVX Coupling Double Shut-Off with Plastic Hose Connection na na 3x4 9 AISI 303
20KBKO05EVX Coupling Double Shut-Off with Plastic Hose Connection na na 3x5 9 AISI 316 L
20KBKO05MPN Coupling Double Shut-Off with Plastic Hose Connection na na 3x5 9 Brass nickel plated
20KBKO05MPX Coupling Double Shut-Off with Plastic Hose Connection na na 3x5 9 Brass
20KBKO05RVX Coupling Double Shut-Off with Plastic Hose Connection na na 3x5 9 AISI 303
20KBKO06EVX Coupling Double Shut-Off with Plastic Hose Connection na na 4x6 9 AISI 316 L
20KBKO06MPN Coupling Double Shut-Off with Plastic Hose Connection na na 4x6 9 Brass nickel plated
20KBKO06MPX Coupling Double Shut-Off with Plastic Hose Connection na na 4x6 9 Brass
20KBKO06RVX Coupling Double Shut-Off with Plastic Hose Connection na na 4x6 9 AISI 303
20KBKS04MPN Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 Brass nickel plated
20KBKS04MPX Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 Brass
20KBKS04RVX Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 AISI 303
20KBKS05MPN Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 Brass nickel plated
20KBKS05MPX Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 Brass
20KBKS05RVX Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 AISI 303
20KBKS06MPN Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass nickel plated
20KBKS06MPX Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass
20KBKS06RVX Coupling Double Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 AISI 303
20KBTF03MPN Coupling Double Shut-Off Hose Barb na na 3 na Brass nickel plated
20KBTF03MPX Coupling Double Shut-Off Hose Barb na na 3 na Brass
20KBTF03RVX Coupling Double Shut-Off Hose Barb na na 3 na AISI 303
20KBTF04EVX Coupling Double Shut-Off Hose Barb na na 4 na AISI 316 L
20KBTF04MPN Coupling Double Shut-Off Hose Barb na na 4 na Brass nickel plated
20KBTF04MPX Coupling Double Shut-Off Hose Barb na na 4 na Brass
20KBTF04RVX Coupling Double Shut-Off Hose Barb na na 4 na AISI 303
20KBTF05MPN Coupling Double Shut-Off Hose Barb na na 5 na Brass nickel plated
20KBTF05MPX Coupling Double Shut-Off Hose Barb na na 5 na Brass
20KBTF05RVX Coupling Double Shut-Off Hose Barb na na 5 na AISI 303
20KBTS03MPN Coupling Double Shut-Off Panel Mount with Hose Barb na na 3 12 Brass nickel plated
20KBTS03MPX Coupling Double Shut-Off Panel Mount with Hose Barb na na 3 12 Brass
20KBTS04MPN Coupling Double Shut-Off Panel Mount with Hose Barb na na 4 12 Brass nickel plated
20KBTS04MPX Coupling Double Shut-Off Panel Mount with Hose Barb na na 4 12 Brass
20SBAM05EVX Plug Double Shut-Off Male Thread - metric na 5 na 9 AISI 316 L
20SBAM05MPN Plug Double Shut-Off Male Thread - metric na 5 na 9 Brass nickel plated
20SBAM05MPX Plug Double Shut-Off Male Thread - metric na 5 na 9 Brass
20SBAM05RVX Plug Double Shut-Off Male Thread - metric na 5 na 9 AISI 303
20SBAW10EVX Plug Double Shut-Off Male Thread - parallel 1/8 na na 11 AISI 316 L
20SBAW10MPN Plug Double Shut-Off Male Thread - parallel 1/8 na na 11 Brass nickel plated
20SBAW10MPX Plug Double Shut-Off Male Thread - parallel 1/8 na na 11 Brass
20SBAW10RVX Plug Double Shut-Off Male Thread - parallel 1/8 na na 11 AISI 303
20SBIM05EVX Plug Double Shut-Off Female Thread - metric na 5 na 9 AISI 316 L
20SBIM05MPN Plug Double Shut-Off Female Thread - metric na 5 na 9 Brass nickel plated
20SBIM05MPX Plug Double Shut-Off Female Thread - metric na 5 na 9 Brass
20SBIM05RVX Plug Double Shut-Off Female Thread - metric na 5 na 9 AISI 303
20SBIW10EVX Plug Double Shut-Off Female Thread - parallel 1/8 na na 12 AISI 316 L
20SBIW10MPN Plug Double Shut-Off Female Thread - parallel 1/8 na na 12 Brass nickel plated
20SBIW10MPX Plug Double Shut-Off Female Thread - parallel 1/8 na na 12 Brass
20SBIW10RVX Plug Double Shut-Off Female Thread - parallel 1/8 na na 12 AISI 303
20SBKO04EVX Plug Double Shut-Off with Plastic Hose Connection na na 3x4 9 AISI 316 L
20SBKO04MPN Plug Double Shut-Off with Plastic Hose Connection na na 3x4 9 Brass nickel plated
20SBKO04MPX Plug Double Shut-Off with Plastic Hose Connection na na 3x4 9 Brass
20SBKO04RVX Plug Double Shut-Off with Plastic Hose Connection na na 3x4 9 AISI 303
20SBKO05EVX Plug Double Shut-Off with Plastic Hose Connection na na 3x5 9 AISI 316 L
20SBKO05MPN Plug Double Shut-Off with Plastic Hose Connection na na 3x5 9 Brass nickel plated
20SBKO05MPX Plug Double Shut-Off with Plastic Hose Connection na na 3x5 9 Brass
20SBKO05RVX Plug Double Shut-Off with Plastic Hose Connection na na 3x5 9 AISI 303
20SBKO06EVX Plug Double Shut-Off with Plastic Hose Connection na na 4x6 9 AISI 316 L
20SBKO06MPN Plug Double Shut-Off with Plastic Hose Connection na na 4x6 9 Brass nickel plated
20SBKO06MPX Plug Double Shut-Off with Plastic Hose Connection na na 4x6 9 Brass
20SBKO06RVX Plug Double Shut-Off with Plastic Hose Connection na na 4x6 9 AISI 303
20SBKS04MPN Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 Brass nickel plated
20SBKS04MPX Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 Brass
20SBKS04RVX Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 12 AISI 303
20SBKS05MPN Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 Brass nickel plated
20SBKS05MPX Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 Brass
20SBKS05RVX Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 12 AISI 303
20SBKS06MPN Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass nickel plated
20SBKS06MPX Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass
20SBKS06RVX Plug Double Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 AISI 303
20SBTF03MPN Plug Double Shut-Off Hose Barb na na 3 8 Brass nickel plated
20SBTF03MPX Plug Double Shut-Off Hose Barb na na 3 8 Brass
20SBTF03RVX Plug Double Shut-Off Hose Barb na na 3 8 AISI 303
20SBTF04EVX Plug Double Shut-Off Hose Barb na na 4 8 AISI 316 L
20SBTF04MPN Plug Double Shut-Off Hose Barb na na 4 8 Brass nickel plated
20SBTF04MPX Plug Double Shut-Off Hose Barb na na 4 8 Brass
20SBTF04RVX Plug Double Shut-Off Hose Barb na na 4 8 AISI 303
20SBTF05MPN Plug Double Shut-Off Hose Barb na na 5 8 Brass nickel plated
20SBTF05MPX Plug Double Shut-Off Hose Barb na na 5 8 Brass
20SBTF05RVX Plug Double Shut-Off Hose Barb na na 5 8 AISI 303
20SBTS03MPN Plug Double Shut-Off Panel Mount with Hose Barb na na 3 12 Brass nickel plated
20SBTS03MPX Plug Double Shut-Off Panel Mount with Hose Barb na na 3 12 Brass
20SBTS04MPN Plug Double Shut-Off Panel Mount with Hose Barb na na 4 12 Brass nickel plated
20SBTS04MPX Plug Double Shut-Off Panel Mount with Hose Barb na na 4 12 Brass
20SBTS06MPN Plug Double Shut-Off Panel Mount with Hose Barb na na 6 12 Brass nickel plated
20SBTS06MPX Plug Double Shut-Off Panel Mount with Hose Barb na na 6 12 Brass
20SFAM05EXX Plug Single Shut-Off Male Thread - metric na 5 na 7 AISI 316 L
20SFAM05MXN Plug Single Shut-Off Male Thread - metric na 5 na 7 Brass nickel plated
20SFAM05MXX Plug Single Shut-Off Male Thread - metric na 5 na 7 Brass
20SFAM05RXX Plug Single Shut-Off Male Thread - metric na 5 na 7 AISI 303
20SFAW10EXX Plug Single Shut-Off Male Thread - parallel 1/8 na na 11 AISI 316 L
20SFAW10MXN Plug Single Shut-Off Male Thread - parallel 1/8 na na 11 Brass nickel plated
20SFAW10MXX Plug Single Shut-Off Male Thread - parallel 1/8 na na 11 Brass
20SFAW10RXX Plug Single Shut-Off Male Thread - parallel 1/8 na na 11 AISI 303
20SFIM05EXX Plug Single Shut-Off Female Thread - metric na 5 na 7 AISI 316 L
20SFIM05MXN Plug Single Shut-Off Female Thread - metric na 5 na 7 Brass nickel plated
20SFIM05MXX Plug Single Shut-Off Female Thread - metric na 5 na 7 Brass
20SFIM05RXX Plug Single Shut-Off Female Thread - metric na 5 na 7 AISI 303
20SFIW10EXX Plug Single Shut-Off Female Thread - parallel 1/8 na na 12 AISI 316 L
20SFIW10MXN Plug Single Shut-Off Female Thread - parallel 1/8 na na 12 Brass nickel plated
20SFIW10MXX Plug Single Shut-Off Female Thread - parallel 1/8 na na 12 Brass
20SFIW10RXX Plug Single Shut-Off Female Thread - parallel 1/8 na na 12 AISI 303
20SFKO04EXX Plug Single Shut-Off with Plastic Hose Connection na na 3x4 8 AISI 316 L
20SFKO04MXN Plug Single Shut-Off with Plastic Hose Connection na na 3x4 7 Brass nickel plated
20SFKO04MXX Plug Single Shut-Off with Plastic Hose Connection na na 3x4 7 Brass
20SFKO04RXX Plug Single Shut-Off with Plastic Hose Connection na na 3x4 8 AISI 303
20SFKO05EXX Plug Single Shut-Off with Plastic Hose Connection na na 3x5 8 AISI 316 L
20SFKO05MXN Plug Single Shut-Off with Plastic Hose Connection na na 3x5 7 Brass nickel plated
20SFKO05MXX Plug Single Shut-Off with Plastic Hose Connection na na 3x5 7 Brass
20SFKO05RXX Plug Single Shut-Off with Plastic Hose Connection na na 3x5 8 AISI 303
20SFKO06EXX Plug Single Shut-Off with Plastic Hose Connection na na 4x6 8 AISI 316 L
20SFKO06MXN Plug Single Shut-Off with Plastic Hose Connection na na 4x6 8 Brass nickel plated
20SFKO06MXX Plug Single Shut-Off with Plastic Hose Connection na na 4x6 8 Brass
20SFKO06RXX Plug Single Shut-Off with Plastic Hose Connection na na 4x6 8 AISI 303
20SFKS04MXN Plug Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 11 Brass nickel plated
20SFKS04MXX Plug Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x4 11 Brass
20SFKS05MXN Plug Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 11 Brass nickel plated
20SFKS05MXX Plug Single Shut-Off Panel Mount with Plastic Hose Connection na na 3x5 11 Brass
20SFKS06MXN Plug Single Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass nickel plated
20SFKS06MXX Plug Single Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 Brass
20SFKS06RXX Plug Single Shut-Off Panel Mount with Plastic Hose Connection na na 4x6 12 AISI 303
20SFRP04MPN Plug Single Shut-Off Push-In na na 4 10 Brass nickel plated
20SFTF03EXX Plug Single Shut-Off Hose Barb na na 3 na AISI 316 L
20SFTF03MXN Plug Single Shut-Off Hose Barb na na 3 na Brass nickel plated
20SFTF03MXX Plug Single Shut-Off Hose Barb na na 3 na Brass
20SFTF03RXX Plug Single Shut-Off Hose Barb na na 3 na AISI 303
20SFTF04EXX Plug Single Shut-Off Hose Barb na na 4 na AISI 316 L
20SFTF04MXN Plug Single Shut-Off Hose Barb na na 4 na Brass nickel plated
20SFTF04MXX Plug Single Shut-Off Hose Barb na na 4 na Brass
20SFTF04RXX Plug Single Shut-Off Hose Barb na na 4 na AISI 303
20SFTF05EXX Plug Single Shut-Off Hose Barb na na 5 na AISI 316 L
20SFTF05MXN Plug Single Shut-Off Hose Barb na na 5 na Brass nickel plated
20SFTF05MXX Plug Single Shut-Off Hose Barb na na 5 na Brass
20SFTF05RXX Plug Single Shut-Off Hose Barb na na 5 na AISI 303
20SFTS03MXN Plug Single Shut-Off Panel Mount with Hose Barb na na 3 12 Brass nickel plated
20SFTS03MXX Plug Single Shut-Off Panel Mount with Hose Barb na na 3 12 Brass
20SFTS04MXN Plug Single Shut-Off Panel Mount with Hose Barb na na 4 12 Brass nickel plated
20SFTS04MXX Plug Single Shut-Off Panel Mount with Hose Barb na na 4 12 Brass








信德迈科技（北京）有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编：100102
电话：010-84282935；84283983
手机：13910962635 （ 微信号）
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真：010-84288762


京ICP备08000876号-6
京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
