Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
Dry Break Quick Coupling with Parker Profile, Series 206

Dry break quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications in sensitive environments up to 15 bar. Available made of brass or stainless steel.





Parker's dry break coupling system has been developed for applications in sensitive environments, for example in analysis technology, in cooling systems, in transport systems and many applications with aggressive media.
This coupling system with single-hand operation has extremely low leakage rates and minimal dead space volume. The design allows absolutely no air pockets when coupling and only a barely noticeable film of the medium being channeled on the valve bodies when uncoupling.

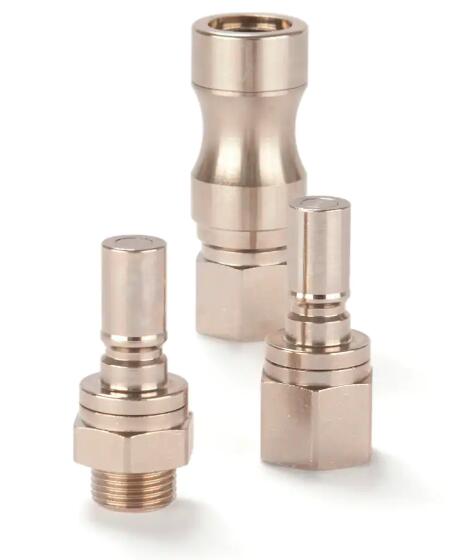

Dry Break Quick Coupling with Parker Profile, Series 206



Markets:
- Life Science
- Process
- Electronic Cooling
- Industrial
- Food & Beverage

Features/Benefits:
- Dry break – extremely low dead volume remaining
- Single-handed operation for easy and fast connection
- Ergonomic sleeve shape for easy handling
- Low connecting forces
- Valve body protected by collar design
- Clean, deposit free surface (RZ16)
- High vacuum rating

Applications:
- Laboratory Gas Supply
- Cooling of Electronic Components
- Vacuum Applications
- Food and chemical processing
- Water and coolant lines



Technical Specifications

Minimum Operating Temperature: -15 °C
Diameter: Nominal: 6.0 mm
Application: Pneumatic & Fluid Handling
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: Rectus Profile
Materials of Construction: Brass, Stainless Steel
Maximum Operating Pressure: 210 psi, 15 bar
Maximum Operating Temperature: 212 to 392 °F, 100 to 200 °C
Media: Chemical Fluids, Gases, Pneumatic Media, Steam, Water
Valve Type: Non-Spill / FlatFace
Valve Included: Yes
Version: Flat-sealing
Length: 51 to 71,5 mm
Hex Size: 22 to 24 mm
Outside Diameter: 25,5 mm
Seal Material: NBR, FKM
Flow Rate: 685 L/min



Dry Break Quick Coupling with Parker Profile, Series 206 型号

Part Type Connection Type Connection Thread Size (inch) Material
206KLAW17EVX Coupling Male Thread - parallel 3/8 AISI 316 L
206KLAW17MPN Coupling Male Thread - parallel 3/8 Brass nickel plated
206KLAW21EVX Coupling Male Thread - parallel 1/2 AISI 316 L
206KLAW21MPN Coupling Male Thread - parallel 1/2 Brass nickel plated
206KLIW17EVX Coupling Female Thread - parallel 3/8 AISI 316 L
206KLIW17MPN Coupling Female Thread - parallel 3/8 Brass nickel plated
206KLIW21EVX Coupling Female Thread - parallel 1/2 AISI 316 L
206KLIW21MPN Coupling Female Thread - parallel 1/2 Brass nickel plated
206SLAW17EVX Plug Male Thread - parallel 3/8 AISI 316 L
206SLAW17MPN Plug Male Thread - parallel 3/8 Brass nickel plated
206SLAW21EVX Plug Male Thread - parallel 1/2 AISI 316 L
206SLAW21MPN Plug Male Thread - parallel 1/2 Brass nickel plated
206SLIW17EVX Plug Female Thread - parallel 3/8 AISI 316 L
206SLIW17MPN Plug Female Thread - parallel 3/8 Brass nickel plated
206SLIW21EVX Plug Female Thread - parallel 1/2 AISI 316 L
206SLIW21MPN Plug Female Thread - parallel 1/2 Brass nickel plated
