Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

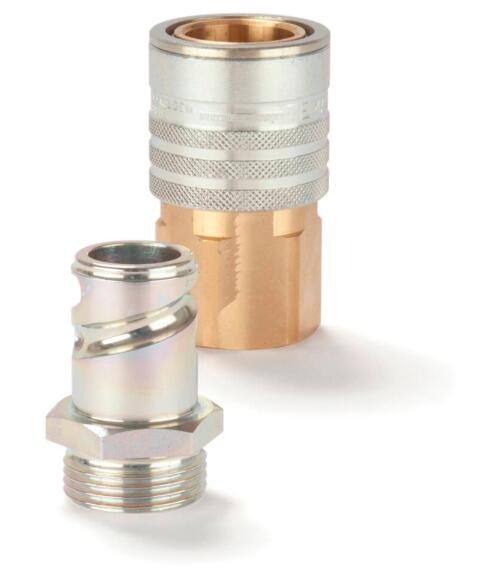

Premium Plus Quick Coupling with Scandinavian Profile, Series 2100

Premium plus quick coupling system with nominal diameter 22 for pneumatic and fluid handling applications up to 20 bar. Coupling system with Scandinavian profile. Available made of brass/steel.





Parker's series 2100 is used mainly in the area of compressed air. The system is particularly suited to large pneumatic plants and compressed air tools with a very high flow. This series has a special safety function, which requires a turn and push/pull movement during connection and disconnection. It also has an automatic pressure release function, which facilitates easy handling. A coupling system with very high flow rates, robust design, high corrosion resistance and a safety function.



Premium Plus Quick Coupling with Scandinavian Profile, Series 2100



Markets:
- Machinery Construction
- Automotive
- Aerospace
- Mobile Hydraulics

Features/Benefits:
- Corrosion resistant
- High flow rates
- Robust design
- Available with safety function

Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 22 mm
Application: Pneumatic & Fluid Handling
Brand: Tema
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Flow Rate: 3170.074497 Gal/min, 12000 L/min
Interchange Type: Scandinavia
Maximum Operating Pressure: 290.08 psi, 20 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: Poppet
Seal Material: NBR
Valve Included: Yes, No
Version: Single Shut-Off
Length: 40 up to 82 mm
Hex Size: na, 36, 41 mm
Outside Diameter: na, 48 mm
Materials of Construction: Brass/Steel, Steel



Premium Plus Quick Coupling with Scandinavian Profile, Series 2100 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
2100KAIW33MPX Coupling Female Thread - parallel 1 na
2100SFAW33SXZ Plug Male Thread - parallel 1 na
2100SFTF19SXZ Plug Hose Barb na 19

2100SFTF25

SXZ

Plug Hose Barb na 25
