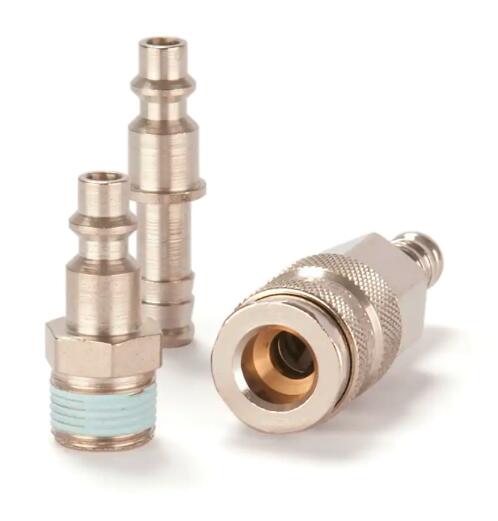

Premium Quick Coupling with ISO 6150 B Profile, Series 23
Premium quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass/steel.
Parker's Premium Quick Coupling Series 23 is a 1/4" industrial coupling according to ISO 6150 B and US MIL-SPE+D13C 4109. It's especially suitable for use with gaseous media in industry.
The coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. The steel sleeve counters oscillating forces and the high insertion depth is guaranteed by an optimized plug guide.
Premium Quick Coupling with ISO 6150 B Profile, Series 23
Markets:
- Machinery Construction
- Automotive
- Aerospace
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Steel sleeve counters oscillating forces
- Single-hand operation for easy and fast connection
- Coupling system according to ISO 6150 B and US MIL-SPEC 4109
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 5.5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO 6150 B, MIL |
| Interchange Type: |
ISO 6150 B |
| Materials of Construction: |
Brass / Steel |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
High Flow Air, Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
36 up to 163 mm |
| Hex Size: |
13 up to 24 mm |
| Outside Diameter: |
14 to 23 mm |
| Flow Rate: |
900 L/min |
Premium Quick Coupling with ISO 6150 B Profile, Series 23 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 23FAAK13SPN |
Plug |
Flex Joint, Male Thread |
1/4 |
na |
Steel nickel plated |
| 23KAAK13MPN |
Coupling |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 23KAAK17MPN |
Coupling |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 23KAAK21MPN |
Coupling |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 23KAIW13MPN |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 23KAIW17MPN |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 23KAIW21MPN |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 23KAKK12MPN |
Coupling |
Plastic Hose Connection with Spring Guard |
na |
9x12 |
Brass nickel plated |
| 23KAKO10MPN |
Coupling |
with Plastic Hose Connection |
na |
8x10 |
Brass nickel plated |
| 23KATF06MPN |
Coupling |
Hose Barb |
na |
6 |
Brass nickel plated |
| 23KATF08MPN |
Coupling |
Hose Barb |
na |
8 |
Brass nickel plated |
| 23KATF09MPN |
Coupling |
Hose Barb |
na |
9 |
Brass nickel plated |
| 23KATF10MPN |
Coupling |
Hose Barb |
na |
10 |
Brass nickel plated |
| 23KATF13MPN |
Coupling |
Hose Barb |
na |
13 |
Brass nickel plated |
| 23SFAK10SXN |
Plug |
Male Thread - tapered |
1/8 |
na |
Steel nickel plated |
| 23SFAK13SXN |
Plug |
Male Thread - tapered |
1/4 |
na |
Steel nickel plated |
| 23SFAK17SXN |
Plug |
Male Thread - tapered |
3/8 |
na |
Steel nickel plated |
| 23SFAK21SXN |
Plug |
Male Thread - tapered |
1/2 |
na |
Steel nickel plated |
| 23SFAW13MXX |
Plug |
Male Thread - parallel |
1/4 |
na |
Brass |
| 23SFAW17MXX |
Plug |
Male Thread - parallel |
3/8 |
na |
Brass |
| 23SFIW10SXN |
Plug |
Female Thread - parallel |
1/8 |
na |
Steel nickel plated |
| 23SFIW13MXX |
Plug |
Female Thread - parallel |
1/4 |
na |
Brass |
| 23SFIW13SXN |
Plug |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 23SFIW17MXX |
Plug |
Female Thread - parallel |
3/8 |
na |
Brass |
| 23SFIW17SXN |
Plug |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 23SFIW21SXN |
Plug |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 23SFTF06MXX |
Plug |
Hose Barb |
na |
6 |
Brass |
| 23SFTF06SXN |
Plug |
Hose Barb |
na |
6 |
Steel nickel plated |
| 23SFTF08MXX |
Plug |
Hose Barb |
na |
8 |
Brass |
| 23SFTF08SXN |
Plug |
Hose Barb |
na |
8 |
Steel nickel plated |
| 23SFTF09MXX |
Plug |
Hose Barb |
na |
9 |
Brass |
| 23SFTF09SXN |
Plug |
Hose Barb |
na |
9 |
Steel nickel plated |
| 23SFTF10MXX |
Plug |
Hose Barb |
na |
10 |
Brass |
| 23SFTF10SXN |
Plug |
Hose Barb |
na |
10 |
Steel nickel plated |
| 23SFTF13SXN |
Plug |
Hose Barb |
na |
13 |
Steel nickel plated |
|
