Basic Quick Coupling with ISO 6150 B Profile, Series 24

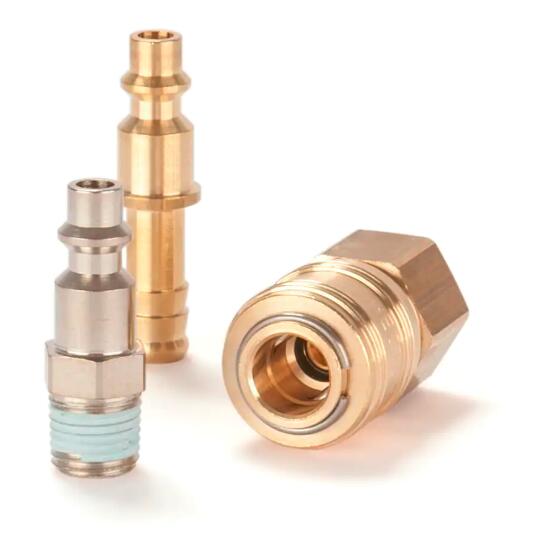

Basic quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.
Parker's Basic Quick Coupling Series 24 is a 1/4" industrial brass coupling according to ISO 6150 B and US MIL-SPEC 4109.
The coupling system is developed for single-hand operation. Series 24 stands out for its solid brass design and corresponding sleeve design. The hardened steel plug counters vibrations and effects of external forces.
The right plug for series 24 can be found under series 23.
Basic Quick Coupling with ISO 6150 B Profile, Series 24
Markets:
- Machinery Construction
- Industrial
Features/Benefits:
- Plug profile according to ISO 6150 B and US MIL-SPEC 4109
- Single-hand operation for easy and fast connection
- Counters vibration due to the hardened steel plug
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 7.8 mm |
| Application: |
Rescue |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Materials of Construction: |
Brass, Brass / Steel |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Length: |
33 up to 74 mm |
| Hex Size: |
13 up to 22 mm |
| Outside Diameter: |
12 up to 30 mm |
| Flow Rate: |
710 to 1800 L/min |
Basic Quick Coupling with ISO 6150 B Profile, Series 24 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 24KAAW13MPN |
Coupling |
Male Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 24KAAW13MPX |
Coupling |
Male Thread - parallel |
1/4 |
na |
Brass |
| 24KAAW17MPN |
Coupling |
Male Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 24KAAW17MPX |
Coupling |
Male Thread - parallel |
3/8 |
na |
Brass |
| 24KAAW21MPN |
Coupling |
Male Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 24KAAW21MPX |
Coupling |
Male Thread - parallel |
1/2 |
na |
Brass |
| 24KAIW13MPN |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 24KAIW13MPX |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass |
| 24KAIW17MPN |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 24KAIW17MPX |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass |
| 24KAIW21MPN |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 24KAIW21MPX |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass |
| 24KATF06MPX |
Coupling |
Hose Barb |
na |
6 |
Brass |
| 24KATF08MPN |
Coupling |
Hose Barb |
na |
8 |
Brass nickel plated |
| 24KATF08MPX |
Coupling |
Hose Barb |
na |
8 |
Brass |
| 24KATF09MPX |
Coupling |
Hose Barb |
na |
9 |
Brass |
| 24KATF10MPX |
Coupling |
Hose Barb |
na |
10 |
Brass |
| 24KATF13MPX |
Coupling |
Hose Barb |
na |
13 |
Brass |
|
