Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

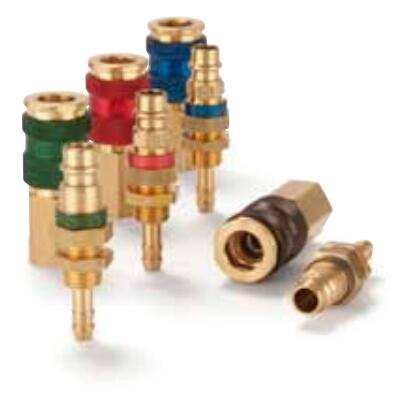

Premium Coded Quick Coupling, Series 25

Premium coded industrial quick coupling system with nominal diameter 7.8 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 25. Available made of brass.





Parker's Premium Coded Quick Coupling Series 25 is an industrial coupling system developed on the basis of series 25. This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. The mechanical coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling, which is complemented by the color coding of the anodized sleeves. Double shut-off and straight-through couplings are available upon request. The plug cannot be interconnected with the Rectus standard 25 series.



Premium Coded Quick Coupling, Series 25



Markets:
- Machinery Construction
- Life Science
- Process
- Aerospace

Features/Benefits:
- No mix-ups between media due to the color and mechanical coding of coupling and plug
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection

Applications:
- Laboratory equipment
- Control panels
- Calibration systems
- Portable analyzers
- Gas chromatographs
- Micro-contamination devices



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 7.8 mm
Application: Fluid Handling
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Rectus Profile
Materials of Construction: Brass
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Chemical Fluids, Gases, Pneumatic Media, Water
Valve Type: High Flow Air
Seal Material: NBR
Valve Included: Yes or No acc. to the version
Version: Single Shut-Off
Length: 36,5 up to 74 mm
Hex Size: 17 up to 24 mm
Outside Diameter: 14 up to 23 mm
Flow Rate: 1800 L/min



Premium Coded Quick Coupling, Series 25 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D. Material Color
25KAAW13BPN0 Coupling Male Thread - parallel 1/4 na Brass nickel plated green - 0
25KAAW13BPN3 Coupling Male Thread - parallel 1/4 na Brass nickel plated brown - 3
25KAAW13BPN6 Coupling Male Thread - parallel 1/4 na Brass nickel plated blue - 6
25KAAW13BPN8 Coupling Male Thread - parallel 1/4 na Brass nickel plated red - 8
25KAAW13BPX0 Coupling Male Thread - parallel 1/4 na Brass green - 0
25KAAW13BPX3 Coupling Male Thread - parallel 1/4 na Brass brown - 3
25KAAW13BPX6 Coupling Male Thread - parallel 1/4 na Brass blue - 6
25KAAW13BPX8 Coupling Male Thread - parallel 1/4 na Brass red - 8
25KAAW17BPN0 Coupling Male Thread - parallel 3/8 na Brass nickel plated green - 0
25KAAW17BPN3 Coupling Male Thread - parallel 3/8 na Brass nickel plated brown - 3
25KAAW17BPN6 Coupling Male Thread - parallel 3/8 na Brass nickel plated blue - 6
25KAAW17BPN8 Coupling Male Thread - parallel 3/8 na Brass nickel plated red - 8
25KAAW17BPX0 Coupling Male Thread - parallel 3/8 na Brass green - 0
25KAAW17BPX3 Coupling Male Thread - parallel 3/8 na Brass brown - 3
25KAAW17BPX6 Coupling Male Thread - parallel 3/8 na Brass blue - 6
25KAAW17BPX8 Coupling Male Thread - parallel 3/8 na Brass red - 8
25KAAW21BPN0 Coupling Male Thread - parallel 1/2 na Brass nickel plated green - 0
25KAAW21BPN3 Coupling Male Thread - parallel 1/2 na Brass nickel plated brown - 3
25KAAW21BPN6 Coupling Male Thread - parallel 1/2 na Brass nickel plated blue - 6
25KAAW21BPN8 Coupling Male Thread - parallel 1/2 na Brass nickel plated red - 8
25KAAW21BPX0 Coupling Male Thread - parallel 1/2 na Brass green - 0
25KAAW21BPX3 Coupling Male Thread - parallel 1/2 na Brass brown - 3
25KAAW21BPX6 Coupling Male Thread - parallel 1/2 na Brass blue - 6
25KAAW21BPX8 Coupling Male Thread - parallel 1/2 na Brass red - 8
25KAIW13BPN0 Coupling Female Thread - parallel 1/4 na Brass nickel plated green - 0
25KAIW13BPN3 Coupling Female Thread - parallel 1/4 na Brass nickel plated brown - 3
25KAIW13BPN6 Coupling Female Thread - parallel 1/4 na Brass nickel plated blue - 6
25KAIW13BPN8 Coupling Female Thread - parallel 1/4 na Brass nickel plated red - 8
25KAIW13BPX0 Coupling Female Thread - parallel 1/4 na Brass green - 0
25KAIW13BPX3 Coupling Female Thread - parallel 1/4 na Brass brown - 3
25KAIW13BPX6 Coupling Female Thread - parallel 1/4 na Brass blue - 6
25KAIW13BPX8 Coupling Female Thread - parallel 1/4 na Brass red - 8
25KAIW17BPN0 Coupling Female Thread - parallel 3/8 na Brass nickel plated green - 0
25KAIW17BPN3 Coupling Female Thread - parallel 3/8 na Brass nickel plated brown - 3
25KAIW17BPN6 Coupling Female Thread - parallel 3/8 na Brass nickel plated blue - 6
25KAIW17BPN8 Coupling Female Thread - parallel 3/8 na Brass nickel plated red - 8
25KAIW17BPX0 Coupling Female Thread - parallel 3/8 na Brass green - 0
25KAIW17BPX3 Coupling Female Thread - parallel 3/8 na Brass brown - 3
25KAIW17BPX6 Coupling Female Thread - parallel 3/8 na Brass blue - 6
25KAIW17BPX8 Coupling Female Thread - parallel 3/8 na Brass red - 8
25KAIW21BPN0 Coupling Female Thread - parallel 1/2 na Brass nickel plated green - 0
25KAIW21BPN3 Coupling Female Thread - parallel 1/2 na Brass nickel plated brown - 3
25KAIW21BPN6 Coupling Female Thread - parallel 1/2 na Brass nickel plated blue - 6
25KAIW21BPN8 Coupling Female Thread - parallel 1/2 na Brass nickel plated red - 8
25KAIW21BPX0 Coupling Female Thread - parallel 1/2 na Brass green - 0
25KAIW21BPX3 Coupling Female Thread - parallel 1/2 na Brass brown - 3
25KAIW21BPX6 Coupling Female Thread - parallel 1/2 na Brass blue - 6
25KAIW21BPX8 Coupling Female Thread - parallel 1/2 na Brass red - 8
25KAKO08BPN0 Coupling with Plastic Hose Connection na 6x8 Brass nickel plated green - 0
25KAKO08BPN3 Coupling with Plastic Hose Connection na 6x8 Brass nickel plated brown - 3
25KAKO08BPN6 Coupling with Plastic Hose Connection na 6x8 Brass nickel plated blue - 6
25KAKO08BPN8 Coupling with Plastic Hose Connection na 6x8 Brass nickel plated red - 8
25KAKO08BPX0 Coupling with Plastic Hose Connection na 6x8 Brass green - 0
25KAKO08BPX3 Coupling with Plastic Hose Connection na 6x8 Brass brown - 3
25KAKO08BPX6 Coupling with Plastic Hose Connection na 6x8 Brass blue - 6
25KAKO08BPX8 Coupling with Plastic Hose Connection na 6x8 Brass red - 8
25KAKO10BPN0 Coupling with Plastic Hose Connection na 8x10 Brass nickel plated green - 0
25KAKO10BPN3 Coupling with Plastic Hose Connection na 8x10 Brass nickel plated brown - 3
25KAKO10BPN6 Coupling with Plastic Hose Connection na 8x10 Brass nickel plated blue - 6
25KAKO10BPN8 Coupling with Plastic Hose Connection na 8x10 Brass nickel plated red - 8
25KAKO10BPX0 Coupling with Plastic Hose Connection na 8x10 Brass green - 0
25KAKO10BPX3 Coupling with Plastic Hose Connection na 8x10 Brass brown - 3
25KAKO10BPX6 Coupling with Plastic Hose Connection na 8x10 Brass blue - 6
25KAKO10BPX8 Coupling with Plastic Hose Connection na 8x10 Brass red - 8
25KATF06BPN0 Coupling Hose Barb na 6 Brass nickel plated green - 0
25KATF06BPN3 Coupling Hose Barb na 6 Brass nickel plated brown - 3
25KATF06BPN6 Coupling Hose Barb na 6 Brass nickel plated blue - 6
25KATF06BPN8 Coupling Hose Barb na 6 Brass nickel plated red - 8
25KATF06BPX0 Coupling Hose Barb na 6 Brass green - 0
25KATF06BPX3 Coupling Hose Barb na 6 Brass brown - 3
25KATF06BPX6 Coupling Hose Barb na 6 Brass blue - 6
25KATF06BPX8 Coupling Hose Barb na 6 Brass red - 8
25KATF09BPN0 Coupling Hose Barb na 9 Brass nickel plated green - 0
25KATF09BPN3 Coupling Hose Barb na 9 Brass nickel plated brown - 3
25KATF09BPN6 Coupling Hose Barb na 9 Brass nickel plated blue - 6
25KATF09BPN8 Coupling Hose Barb na 9 Brass nickel plated red - 8
25KATF09BPX0 Coupling Hose Barb na 9 Brass green - 0
25KATF09BPX3 Coupling Hose Barb na 9 Brass brown - 3
25KATF09BPX6 Coupling Hose Barb na 9 Brass blue - 6
25KATF09BPX8 Coupling Hose Barb na 9 Brass red - 8
25KATF13BPN0 Coupling Hose Barb na 13 Brass nickel plated green - 0
25KATF13BPN3 Coupling Hose Barb na 13 Brass nickel plated brown - 3
25KATF13BPN6 Coupling Hose Barb na 13 Brass nickel plated blue - 6
25KATF13BPN8 Coupling Hose Barb na 13 Brass nickel plated red - 8
25KATF13BPX0 Coupling Hose Barb na 13 Brass green - 0
25KATF13BPX3 Coupling Hose Barb na 13 Brass brown - 3
25KATF13BPX6 Coupling Hose Barb na 13 Brass blue - 6
25KATF13BPX8 Coupling Hose Barb na 13 Brass red - 8
26SFAW13MXN0 Plug Male Thread - parallel 1/4 na Brass nickel plated green - 0
26SFAW13MXN3 Plug Male Thread - parallel 1/4 na Brass nickel plated brown - 3
26SFAW13MXN6 Plug Male Thread - parallel 1/4 na Brass nickel plated blue - 6
26SFAW13MXN8 Plug Male Thread - parallel 1/4 na Brass nickel plated red - 8
26SFAW13MXX0 Plug Male Thread - parallel 1/4 na Brass green - 0
26SFAW13MXX3 Plug Male Thread - parallel 1/4 na Brass brown - 3
26SFAW13MXX6 Plug Male Thread - parallel 1/4 na Brass blue - 6
26SFAW13MXX8 Plug Male Thread - parallel 1/4 na Brass red - 8
26SFAW17MXN0 Plug Male Thread - parallel 3/8 na Brass nickel plated green - 0
26SFAW17MXN3 Plug Male Thread - parallel 3/8 na Brass nickel plated brown - 3
26SFAW17MXN6 Plug Male Thread - parallel 3/8 na Brass nickel plated blue - 6
26SFAW17MXN8 Plug Male Thread - parallel 3/8 na Brass nickel plated red - 8
26SFAW17MXX0 Plug Male Thread - parallel 3/8 na Brass green - 0
26SFAW17MXX3 Plug Male Thread - parallel 3/8 na Brass brown - 3
26SFAW17MXX6 Plug Male Thread - parallel 3/8 na Brass blue - 6
26SFAW17MXX8 Plug Male Thread - parallel 3/8 na Brass red - 8
26SFIW13MXN0 Plug Female Thread - parallel 1/4 na Brass nickel plated green - 0
26SFIW13MXN3 Plug Female Thread - parallel 1/4 na Brass nickel plated brown - 3
26SFIW13MXN6 Plug Female Thread - parallel 1/4 na Brass nickel plated blue - 6
26SFIW13MXN8 Plug Female Thread - parallel 1/4 na Brass nickel plated red - 8
26SFIW13MXX0 Plug Female Thread - parallel 1/4 na Brass green - 0
26SFIW13MXX3 Plug Female Thread - parallel 1/4 na Brass brown - 3
26SFIW13MXX6 Plug Female Thread - parallel 1/4 na Brass blue - 6
26SFIW13MXX8 Plug Female Thread - parallel 1/4 na Brass red - 8
26SFIW17MXN0 Plug Female Thread - parallel 3/8 na Brass nickel plated green - 0
26SFIW17MXN3 Plug Female Thread - parallel 3/8 na Brass nickel plated brown - 3
26SFIW17MXN6 Plug Female Thread - parallel 3/8 na Brass nickel plated blue - 6
26SFIW17MXN8 Plug Female Thread - parallel 3/8 na Brass nickel plated red - 8
26SFIW17MXX0 Plug Female Thread - parallel 3/8 na Brass green - 0
26SFIW17MXX3 Plug Female Thread - parallel 3/8 na Brass brown - 3
26SFIW17MXX6 Plug Female Thread - parallel 3/8 na Brass blue - 6
26SFIW17MXX8 Plug Female Thread - parallel 3/8 na Brass red - 8
26SFKO08MXN0 Plug with Plastic Hose Connection na 6x8 Brass nickel plated green - 0
26SFKO08MXN3 Plug with Plastic Hose Connection na 6x8 Brass nickel plated brown - 3
26SFKO08MXN6 Plug with Plastic Hose Connection na 6x8 Brass nickel plated blue - 6
26SFKO08MXN8 Plug with Plastic Hose Connection na 6x8 Brass nickel plated red - 8
26SFKO08MXX0 Plug with Plastic Hose Connection na 6x8 Brass green - 0
26SFKO08MXX3 Plug with Plastic Hose Connection na 6x8 Brass brown - 3
26SFKO08MXX6 Plug with Plastic Hose Connection na 6x8 Brass blue - 6
26SFKO08MXX8 Plug with Plastic Hose Connection na 6x8 Brass red - 8
26SFKO10MXN0 Plug with Plastic Hose Connection na 8x10 Brass nickel plated green - 0
26SFKO10MXN3 Plug with Plastic Hose Connection na 8x10 Brass nickel plated brown - 3
26SFKO10MXN6 Plug with Plastic Hose Connection na 8x10 Brass nickel plated blue - 6
26SFKO10MXN8 Plug with Plastic Hose Connection na 8x10 Brass nickel plated red - 8
26SFKO10MXX0 Plug with Plastic Hose Connection na 8x10 Brass green - 0
26SFKO10MXX3 Plug with Plastic Hose Connection na 8x10 Brass brown - 3
26SFKO10MXX6 Plug with Plastic Hose Connection na 8x10 Brass blue - 6
26SFKO10MXX8 Plug with Plastic Hose Connection na 8x10 Brass red - 8
26SFTF06MXN0 Plug Hose Barb na 6 Brass nickel plated green - 0
26SFTF06MXN3 Plug Hose Barb na 6 Brass nickel plated brown - 3
26SFTF06MXN6 Plug Hose Barb na 6 Brass nickel plated blue - 6
26SFTF06MXN8 Plug Hose Barb na 6 Brass nickel plated red - 8
26SFTF06MXX0 Plug Hose Barb na 6 Brass green - 0
26SFTF06MXX3 Plug Hose Barb na 6 Brass brown - 3
26SFTF06MXX6 Plug Hose Barb na 6 Brass blue - 6
26SFTF06MXX8 Plug Hose Barb na 6 Brass red - 8
26SFTF09MXN0 Plug Hose Barb na 9 Brass nickel plated green - 0
26SFTF09MXN3 Plug Hose Barb na 9 Brass nickel plated brown - 3
26SFTF09MXN6 Plug Hose Barb na 9 Brass nickel plated blue - 6
26SFTF09MXN8 Plug Hose Barb na 9 Brass nickel plated red - 8
26SFTF09MXX0 Plug Hose Barb na 9 Brass green - 0
26SFTF09MXX3 Plug Hose Barb na 9 Brass brown - 3
26SFTF09MXX6 Plug Hose Barb na 9 Brass blue - 6
26SFTF09MXX8 Plug Hose Barb na 9 Brass red - 8
26SFTF13MXN0 Plug Hose Barb na 13 Brass nickel plated green - 0
26SFTF13MXN3 Plug Hose Barb na 13 Brass nickel plated brown - 3
26SFTF13MXN6 Plug Hose Barb na 13 Brass nickel plated blue - 6
26SFTF13MXN8 Plug Hose Barb na 13 Brass nickel plated red - 8
26SFTF13MXX0 Plug Hose Barb na 13 Brass green - 0
26SFTF13MXX3 Plug Hose Barb na 13 Brass brown - 3
26SFTF13MXX6 Plug Hose Barb na 13 Brass blue - 6
26SFTF13MXX8 Plug Hose Barb na 13 Brass red - 8
26SFTS06MXN0 Plug Panel Mount with Hose Barb na 6 Brass nickel plated green - 0
26SFTS06MXN3 Plug Panel Mount with Hose Barb na 6 Brass nickel plated brown - 3
26SFTS06MXN6 Plug Panel Mount with Hose Barb na 6 Brass nickel plated blue - 6
26SFTS06MXN8 Plug Panel Mount with Hose Barb na 6 Brass nickel plated red - 8
26SFTS06MXX0 Plug Panel Mount with Hose Barb na 6 Brass green - 0
26SFTS06MXX3 Plug Panel Mount with Hose Barb na 6 Brass brown - 3
26SFTS06MXX6 Plug Panel Mount with Hose Barb na 6 Brass blue - 6
26SFTS06MXX8 Plug Panel Mount with Hose Barb na 6 Brass red - 8









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
