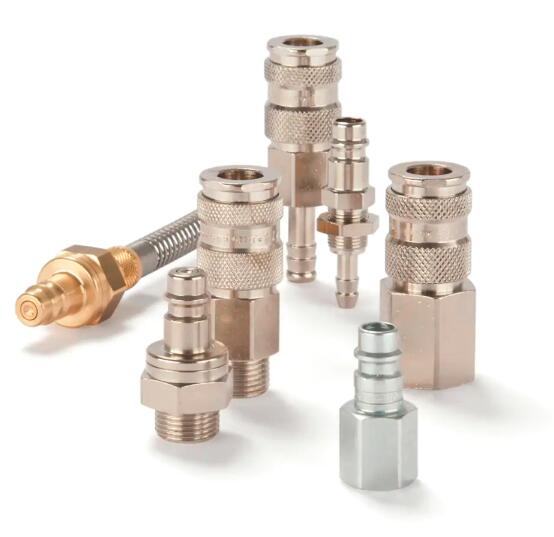

Premium quick coupling system with nominal diameter 7,8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with standard European profile. Available made of brass/steel or stainless steel.
Parker's universal industrial coupling with standard European profile.
Coupling system with single-hand operation. UltraFlo valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use.
| Part |
Version |
Connection Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Hose I.D. |
Material |
Type |
| 25FAAK13SPN |
Single Shut-Off |
Flex Joint, Male Thread |
1/4 |
na |
na |
Steel nickel plated |
Plug |
| 25KAAD14MPN |
Single Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KAAD16MPN |
Single Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KAAD18MPN |
Single Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KAAK13MPN |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
na |
Brass nickel plated |
Coupling |
| 25KAAK17MPN |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
na |
Brass nickel plated |
Coupling |
| 25KAAK21MPN |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
na |
Brass nickel plated |
Coupling |
| 25KAAM18RVX |
Single Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
AISI 303 |
Coupling |
| 25KAAW13EVX |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Coupling |
| 25KAAW13RVX |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Coupling |
| 25KAAW17EVX |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Coupling |
| 25KAAW17RVX |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Coupling |
| 25KAAW21EVX |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Coupling |
| 25KAAW21RVX |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Coupling |
| 25KAIM14MPN |
Single Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KAIM16MPN |
Single Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KAIM18MPN |
Single Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KAIW13EVX |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Coupling |
| 25KAIW13MPN |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
Brass nickel plated |
Coupling |
| 25KAIW13RVX |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Coupling |
| 25KAIW17EVX |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Coupling |
| 25KAIW17MPN |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
Brass nickel plated |
Coupling |
| 25KAIW17RVX |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Coupling |
| 25KAIW21EVX |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Coupling |
| 25KAIW21MPN |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
Brass nickel plated |
Coupling |
| 25KAIW21RVX |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Coupling |
| 25KAKK08MPN |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
Brass nickel plated |
Coupling |
| 25KAKK10MPN |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
Brass nickel plated |
Coupling |
| 25KAKK12MPN |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
Brass nickel plated |
Coupling |
| 25KAKO08EVX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 316 L |
Coupling |
| 25KAKO08MPN |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
Brass nickel plated |
Coupling |
| 25KAKO08RVX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 303 |
Coupling |
| 25KAKO10MPN |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
Brass nickel plated |
Coupling |
| 25KAKO10RVX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
AISI 303 |
Coupling |
| 25KAKO12EVX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
AISI 316 L |
Coupling |
| 25KAKO12MPN |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
Brass nickel plated |
Coupling |
| 25KAKO12RVX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
AISI 303 |
Coupling |
| 25KATF06EVX |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 316 L |
Coupling |
| 25KATF06MPN |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
Brass nickel plated |
Coupling |
| 25KATF06RVX |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 303 |
Coupling |
| 25KATF08EVX |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 316 L |
Coupling |
| 25KATF08MPN |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
Brass nickel plated |
Coupling |
| 25KATF08RVX |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 303 |
Coupling |
| 25KATF09EVX |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 316 L |
Coupling |
| 25KATF09MPN |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
Brass nickel plated |
Coupling |
| 25KATF09RVX |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 303 |
Coupling |
| 25KATF10EVX |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 316 L |
Coupling |
| 25KATF10MPN |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
Brass nickel plated |
Coupling |
| 25KATF10RVX |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 303 |
Coupling |
| 25KATF13EVX |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 316 L |
Coupling |
| 25KATF13MPN |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
Brass nickel plated |
Coupling |
| 25KATF13RVX |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 303 |
Coupling |
| 25KATP06MPN |
Single Shut-Off |
Parker Hose Barb |
na |
na |
6 |
Brass nickel plated |
Coupling |
| 25KATP10MPN |
Single Shut-Off |
Parker Hose Barb |
na |
na |
10 |
Brass nickel plated |
Coupling |
| 25KATP13MPN |
Single Shut-Off |
Parker Hose Barb |
na |
na |
13 |
Brass nickel plated |
Coupling |
| 25KATS06MPN |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
Brass nickel plated |
Coupling |
| 25KATS06RVX |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
AISI 303 |
Coupling |
| 25KATS08MPN |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
Brass nickel plated |
Coupling |
| 25KATS08RVX |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
AISI 303 |
Coupling |
| 25KATS10MPN |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
Brass nickel plated |
Coupling |
| 25KATS10RVX |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
AISI 303 |
Coupling |
| 25KBAD14BPN |
Double Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KBAD14BPX |
Double Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
Brass |
Coupling |
| 25KBAD16BPN |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KBAD16BPX |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
Brass |
Coupling |
| 25KBAD18BPN |
Double Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KBAD18BPX |
Double Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
Brass |
Coupling |
| 25KBAK13BPN |
Double Shut-Off |
Male Thread - tapered |
1/4 |
na |
na |
Brass nickel plated |
Coupling |
| 25KBAK13BPX |
Double Shut-Off |
Male Thread - tapered |
1/4 |
na |
na |
Brass |
Coupling |
| 25KBAK17BPN |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
na |
Brass nickel plated |
Coupling |
| 25KBAK17BPX |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
na |
Brass |
Coupling |
| 25KBAK21BPN |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
na |
Brass nickel plated |
Coupling |
| 25KBAK21BPX |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
na |
Brass |
Coupling |
| 25KBAM16EVX |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
AISI 316 L |
Coupling |
| 25KBAM16RVX |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
AISI 303 |
Coupling |
| 25KBAW13EVX |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Coupling |
| 25KBAW13RVX |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Coupling |
| 25KBAW17EVX |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Coupling |
| 25KBAW17RVX |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Coupling |
| 25KBAW21EVX |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Coupling |
| 25KBAW21RVX |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Coupling |
| 25KBIM14RVX |
Double Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
AISI 303 |
Coupling |
| 25KBIM16BPN |
Double Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KBIM16BPX |
Double Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
Brass |
Coupling |
| 25KBIM16RVX |
Double Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
AISI 303 |
Coupling |
| 25KBIM18BPN |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KBIM18BPX |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
Brass |
Coupling |
| 25KBIM18RVX |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
AISI 303 |
Coupling |
| 25KBIW13BPN |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
Brass nickel plated |
Coupling |
| 25KBIW13BPX |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
Brass |
Coupling |
| 25KBIW13EVX |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Coupling |
| 25KBIW13RVX |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Coupling |
| 25KBIW17BPN |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
Brass nickel plated |
Coupling |
| 25KBIW17BPX |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
Brass |
Coupling |
| 25KBIW17EVX |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Coupling |
| 25KBIW17RVX |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Coupling |
| 25KBIW21BPN |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
Brass nickel plated |
Coupling |
| 25KBIW21BPX |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
Brass |
Coupling |
| 25KBIW21EVX |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Coupling |
| 25KBIW21RVX |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Coupling |
| 25KBKK08BPN |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
Brass nickel plated |
Coupling |
| 25KBKK08BPX |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
Brass |
Coupling |
| 25KBKK12BPN |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
Brass nickel plated |
Coupling |
| 25KBKK12BPX |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
Brass |
Coupling |
| 25KBKO08EVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 316 L |
Coupling |
| 25KBKO08RVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 303 |
Coupling |
| 25KBKO10BPN |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
Brass nickel plated |
Coupling |
| 25KBKO10BPX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
Brass |
Coupling |
| 25KBKO10RVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
AISI 303 |
Coupling |
| 25KBKO12BPN |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
Brass nickel plated |
Coupling |
| 25KBKO12BPX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
Brass |
Coupling |
| 25KBKO12EVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
AISI 316 L |
Coupling |
| 25KBKO12RVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
AISI 303 |
Coupling |
| 25KBTF06BPN |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
Brass nickel plated |
Coupling |
| 25KBTF06BPX |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
Brass |
Coupling |
| 25KBTF06EVX |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 316 L |
Coupling |
| 25KBTF06RVX |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 303 |
Coupling |
| 25KBTF08BPN |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
Brass nickel plated |
Coupling |
| 25KBTF08BPX |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
Brass |
Coupling |
| 25KBTF08EVX |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 316 L |
Coupling |
| 25KBTF08RVX |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 303 |
Coupling |
| 25KBTF09BPN |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
Brass nickel plated |
Coupling |
| 25KBTF09BPX |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
Brass |
Coupling |
| 25KBTF09EVX |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 316 L |
Coupling |
| 25KBTF09RVX |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 303 |
Coupling |
| 25KBTF10BPN |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
Brass nickel plated |
Coupling |
| 25KBTF10BPX |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
Brass |
Coupling |
| 25KBTF10EVX |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 316 L |
Coupling |
| 25KBTF10RVX |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 303 |
Coupling |
| 25KBTF13BPN |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
Brass nickel plated |
Coupling |
| 25KBTF13BPX |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
Brass |
Coupling |
| 25KBTF13EVX |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 316 L |
Coupling |
| 25KBTF13RVX |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 303 |
Coupling |
| 25KBTP10BPN |
Double Shut-Off |
Parker Hose Barb |
na |
na |
10 |
Brass nickel plated |
Coupling |
| 25KBTP10BPX |
Double Shut-Off |
Parker Hose Barb |
na |
na |
10 |
Brass |
Coupling |
| 25KBTP13BPN |
Double Shut-Off |
Parker Hose Barb |
na |
na |
13 |
Brass nickel plated |
Coupling |
| 25KBTP13BPX |
Double Shut-Off |
Parker Hose Barb |
na |
na |
13 |
Brass |
Coupling |
| 25KBTS06BPN |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
Brass nickel plated |
Coupling |
| 25KBTS06BPX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
Brass |
Coupling |
| 25KBTS08BPN |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
Brass nickel plated |
Coupling |
| 25KBTS08BPX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
Brass |
Coupling |
| 25KBTS10BPN |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
Brass nickel plated |
Coupling |
| 25KBTS10BPX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
Brass |
Coupling |
| 25KBTS10RVX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
AISI 303 |
Coupling |
| 25KLAK13BPN |
Flat-Sealing |
Male Thread - tapered |
1/4 |
na |
na |
Brass nickel plated |
Coupling |
| 25KLAK17BPN |
Flat-Sealing |
Male Thread - tapered |
3/8 |
na |
na |
Brass nickel plated |
Coupling |
| 25KLAK21BPN |
Flat-Sealing |
Male Thread - tapered |
1/2 |
na |
na |
Brass nickel plated |
Coupling |
| 25KLAW13EVX |
Flat-Sealing |
Male Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Coupling |
| 25KLAW13RVX |
Flat-Sealing |
Male Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Coupling |
| 25KLAW17EVX |
Flat-Sealing |
Male Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Coupling |
| 25KLAW17RVX |
Flat-Sealing |
Male Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Coupling |
| 25KLAW21EVX |
Flat-Sealing |
Male Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Coupling |
| 25KLAW21RVX |
Flat-Sealing |
Male Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Coupling |
| 25KLIM14BPN |
Flat-Sealing |
Female Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KLIM16BPN |
Flat-Sealing |
Female Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KLIM18BPN |
Flat-Sealing |
Female Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Coupling |
| 25KLIW13BPN |
Flat-Sealing |
Female Thread - parallel |
1/4 |
na |
na |
Brass nickel plated |
Coupling |
| 25KLIW13EVX |
Flat-Sealing |
Female Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Coupling |
| 25KLIW13RVX |
Flat-Sealing |
Female Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Coupling |
| 25KLIW17BPN |
Flat-Sealing |
Female Thread - parallel |
3/8 |
na |
na |
Brass nickel plated |
Coupling |
| 25KLIW17EVX |
Flat-Sealing |
Female Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Coupling |
| 25KLIW17RVX |
Flat-Sealing |
Female Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Coupling |
| 25KLIW21BPN |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
na |
Brass nickel plated |
Coupling |
| 25KLIW21EVX |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Coupling |
| 25KLIW21RVX |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Coupling |
| 25KLKK08BPN |
Flat-Sealing |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
Brass nickel plated |
Coupling |
| 25KLKK10BPN |
Flat-Sealing |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
Brass nickel plated |
Coupling |
| 25KLKK12BPN |
Flat-Sealing |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
Brass nickel plated |
Coupling |
| 25KLKO08BPN |
Flat-Sealing |
with Plastic Hose Connection |
na |
na |
6x8 |
Brass nickel plated |
Coupling |
| 25KLKO10BPN |
Flat-Sealing |
with Plastic Hose Connection |
na |
na |
8x10 |
Brass nickel plated |
Coupling |
| 25KLKO12BPN |
Flat-Sealing |
with Plastic Hose Connection |
na |
na |
9x12 |
Brass nickel plated |
Coupling |
| 25KLTF06BPN |
Flat-Sealing |
Hose Barb |
na |
na |
6 |
Brass nickel plated |
Coupling |
| 25KLTF08BPN |
Flat-Sealing |
Hose Barb |
na |
na |
8 |
Brass nickel plated |
Coupling |
| 25KLTF09BPN |
Flat-Sealing |
Hose Barb |
na |
na |
9 |
Brass nickel plated |
Coupling |
| 25KLTF09EVX |
Flat-Sealing |
Hose Barb |
na |
na |
9 |
AISI 316 L |
Coupling |
| 25KLTF09RVX |
Flat-Sealing |
Hose Barb |
na |
na |
9 |
AISI 303 |
Coupling |
| 25KLTF10BPN |
Flat-Sealing |
Hose Barb |
na |
na |
10 |
Brass nickel plated |
Coupling |
| 25KLTF13BPN |
Flat-Sealing |
Hose Barb |
na |
na |
13 |
Brass nickel plated |
Coupling |
| 25KLTF13EVX |
Flat-Sealing |
Hose Barb |
na |
na |
13 |
AISI 316 L |
Coupling |
| 25KLTF13RVX |
Flat-Sealing |
Hose Barb |
na |
na |
13 |
AISI 303 |
Coupling |
| 25SBAD14MPN |
Double Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Plug |
| 25SBAD14MPX |
Double Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
Brass |
Plug |
| 25SBAD16MPN |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Plug |
| 25SBAD16MPX |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
Brass |
Plug |
| 25SBAD18MPN |
Double Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Plug |
| 25SBAD18MPX |
Double Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
Brass |
Plug |
| 25SBAM16EVX |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
AISI 316 L |
Plug |
| 25SBAM16RVX |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
AISI 303 |
Plug |
| 25SBAM18RVX |
Double Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
AISI 303 |
Plug |
| 25SBAW10EVX |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
AISI 316 L |
Plug |
| 25SBAW10MPN |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
Brass nickel plated |
Plug |
| 25SBAW10MPX |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
Brass |
Plug |
| 25SBAW10RVX |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
AISI 303 |
Plug |
| 25SBAW13EVX |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Plug |
| 25SBAW13MPN |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
Brass nickel plated |
Plug |
| 25SBAW13MPX |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
Brass |
Plug |
| 25SBAW13RVX |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Plug |
| 25SBAW17EVX |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Plug |
| 25SBAW17MPN |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
Brass nickel plated |
Plug |
| 25SBAW17MPX |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
Brass |
Plug |
| 25SBAW17RVX |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Plug |
| 25SBAW21EVX |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Plug |
| 25SBAW21MPN |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
Brass nickel plated |
Plug |
| 25SBAW21MPX |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
Brass |
Plug |
| 25SBAW21RVX |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Plug |
| 25SBIM14MPN |
Double Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Plug |
| 25SBIM14MPX |
Double Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
Brass |
Plug |
| 25SBIM16MPN |
Double Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Plug |
| 25SBIM16MPX |
Double Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
Brass |
Plug |
| 25SBIM18MPN |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Plug |
| 25SBIM18MPX |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
Brass |
Plug |
| 25SBIM18RVX |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
AISI 303 |
Plug |
| 25SBIW13EVX |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Plug |
| 25SBIW13MPN |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
Brass nickel plated |
Plug |
| 25SBIW13MPX |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
Brass |
Plug |
| 25SBIW13RVX |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Plug |
| 25SBIW17EVX |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Plug |
| 25SBIW17MPN |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
Brass nickel plated |
Plug |
| 25SBIW17MPX |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
Brass |
Plug |
| 25SBIW17RVX |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Plug |
| 25SBIW21EVX |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Plug |
| 25SBIW21MPN |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
Brass nickel plated |
Plug |
| 25SBIW21MPX |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
Brass |
Plug |
| 25SBIW21RVX |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Plug |
| 25SBKK06MPN |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
4x6 |
Brass nickel plated |
Plug |
| 25SBKK06MPX |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
4x6 |
Brass |
Plug |
| 25SBKK08MPN |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
Brass nickel plated |
Plug |
| 25SBKK08MPX |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
Brass |
Plug |
| 25SBKK10MPN |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
Brass nickel plated |
Plug |
| 25SBKK10MPX |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
Brass |
Plug |
| 25SBKK12MPN |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
Brass nickel plated |
Plug |
| 25SBKK12MPX |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
Brass |
Plug |
| 25SBKO06MPN |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
Brass nickel plated |
Plug |
| 25SBKO06MPX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
Brass |
Plug |
| 25SBKO06RVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
AISI 303 |
Plug |
| 25SBKO08EVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 316 L |
Plug |
| 25SBKO08MPN |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
Brass nickel plated |
Plug |
| 25SBKO08MPX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
Brass |
Plug |
| 25SBKO08RVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 303 |
Plug |
| 25SBKO10MPN |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
Brass nickel plated |
Plug |
| 25SBKO10MPX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
Brass |
Plug |
| 25SBKO10RVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
AISI 303 |
Plug |
| 25SBKO12EVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
AISI 316 L |
Plug |
| 25SBKO12MPN |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
Brass nickel plated |
Plug |
| 25SBKO12MPX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
Brass |
Plug |
| 25SBKO12RVX |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
AISI 303 |
Plug |
| 25SBTF06EVX |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 316 L |
Plug |
| 25SBTF06MPN |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
Brass nickel plated |
Plug |
| 25SBTF06MPX |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
Brass |
Plug |
| 25SBTF06RVX |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 303 |
Plug |
| 25SBTF08EVX |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 316 L |
Plug |
| 25SBTF08MPN |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
Brass nickel plated |
Plug |
| 25SBTF08MPX |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
Brass |
Plug |
| 25SBTF08RVX |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 303 |
Plug |
| 25SBTF09EVX |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 316 L |
Plug |
| 25SBTF09MPN |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
Brass nickel plated |
Plug |
| 25SBTF09MPX |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
Brass |
Plug |
| 25SBTF09RVX |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 303 |
Plug |
| 25SBTF10EVX |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 316 L |
Plug |
| 25SBTF10MPN |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
Brass nickel plated |
Plug |
| 25SBTF10MPX |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
Brass |
Plug |
| 25SBTF10RVX |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 303 |
Plug |
| 25SBTF13EVX |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 316 L |
Plug |
| 25SBTF13MPN |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
Brass nickel plated |
Plug |
| 25SBTF13MPX |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
Brass |
Plug |
| 25SBTF13RVX |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 303 |
Plug |
| 25SBTP06MPN |
Double Shut-Off |
Parker Hose Barb |
na |
na |
6 |
Brass nickel plated |
Plug |
| 25SBTP06MPX |
Double Shut-Off |
Parker Hose Barb |
na |
na |
6 |
Brass |
Plug |
| 25SBTP10MPN |
Double Shut-Off |
Parker Hose Barb |
na |
na |
10 |
Brass nickel plated |
Plug |
| 25SBTP10MPX |
Double Shut-Off |
Parker Hose Barb |
na |
na |
10 |
Brass |
Plug |
| 25SBTP13MPN |
Double Shut-Off |
Parker Hose Barb |
na |
na |
13 |
Brass nickel plated |
Plug |
| 25SBTP13MPX |
Double Shut-Off |
Parker Hose Barb |
na |
na |
13 |
Brass |
Plug |
| 25SBTS06MPN |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
Brass nickel plated |
Plug |
| 25SBTS06MPX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
Brass |
Plug |
| 25SBTS06RVX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
AISI 303 |
Plug |
| 25SBTS08MPN |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
Brass nickel plated |
Plug |
| 25SBTS08MPX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
Brass |
Plug |
| 25SBTS08RVX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
AISI 303 |
Plug |
| 25SBTS10MPN |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
Brass nickel plated |
Plug |
| 25SBTS10MPX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
Brass |
Plug |
| 25SBTS10RVX |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
AISI 303 |
Plug |
| 25SFAD14SXZ |
Single Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
Steel zinc plated |
Plug |
| 25SFAD16SXZ |
Single Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
Steel zinc plated |
Plug |
| 25SFAD18SXZ |
Single Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
Steel zinc plated |
Plug |
| 25SFAK10SXZ |
Single Shut-Off |
Male Thread - tapered |
1/8 |
na |
na |
Steel zinc plated |
Plug |
| 25SFAK13SXZ |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
na |
Steel zinc plated |
Plug |
| 25SFAK17SXZ |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
na |
Steel zinc plated |
Plug |
| 25SFAK21SXZ |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
na |
Steel zinc plated |
Plug |
| 25SFAW17EXX |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Plug |
| 25SFAW17RXX |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Plug |
| 25SFAW21EXX |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Plug |
| 25SFAW21RXX |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Plug |
| 25SFIM14SXZ |
Single Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
Steel zinc plated |
Plug |
| 25SFIM16RXX |
Single Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
AISI 303 |
Plug |
| 25SFIM16SXZ |
Single Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
Steel zinc plated |
Plug |
| 25SFIM18SXZ |
Single Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
Steel zinc plated |
Plug |
| 25SFIW10EXX |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
AISI 316 L |
Plug |
| 25SFIW10RXX |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
AISI 303 |
Plug |
| 25SFIW10SXZ |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
Steel zinc plated |
Plug |
| 25SFIW13EXX |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Plug |
| 25SFIW13RXX |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Plug |
| 25SFIW13SXZ |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
Steel zinc plated |
Plug |
| 25SFIW17EXX |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Plug |
| 25SFIW17RXX |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Plug |
| 25SFIW17SXZ |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
Steel zinc plated |
Plug |
| 25SFIW21EXX |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Plug |
| 25SFIW21RXX |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Plug |
| 25SFIW21SXZ |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
Steel zinc plated |
Plug |
| 25SFKO06EXX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
AISI 316 L |
Plug |
| 25SFKO06RXX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
AISI 303 |
Plug |
| 25SFKO08EXX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 316 L |
Plug |
| 25SFKO08RXX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
AISI 303 |
Plug |
| 25SFKO10RXX |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
AISI 303 |
Plug |
| 25SFTF06EXX |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 316 L |
Plug |
| 25SFTF06RXX |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
AISI 303 |
Plug |
| 25SFTF06SXZ |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
Steel zinc plated |
Plug |
| 25SFTF08EXX |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 316 L |
Plug |
| 25SFTF08RXX |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
AISI 303 |
Plug |
| 25SFTF08SXZ |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
Steel zinc plated |
Plug |
| 25SFTF09EXX |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 316 L |
Plug |
| 25SFTF09RXX |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
AISI 303 |
Plug |
| 25SFTF09SXZ |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
Steel zinc plated |
Plug |
| 25SFTF10EXX |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 316 L |
Plug |
| 25SFTF10RXX |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
AISI 303 |
Plug |
| 25SFTF10SXZ |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
Steel zinc plated |
Plug |
| 25SFTF13EXX |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 316 L |
Plug |
| 25SFTF13RXX |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
AISI 303 |
Plug |
| 25SFTF13SXZ |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
Steel zinc plated |
Plug |
| 25SLAD14MPN |
Flat-Sealing |
Male Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Plug |
| 25SLAD16MPN |
Flat-Sealing |
Male Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Plug |
| 25SLAD18MPN |
Flat-Sealing |
Male Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Plug |
| 25SLAW13EVX |
Flat-Sealing |
Male Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Plug |
| 25SLAW13MPN |
Flat-Sealing |
Male Thread - parallel |
1/4 |
na |
na |
Brass nickel plated |
Plug |
| 25SLAW13RVX |
Flat-Sealing |
Male Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Plug |
| 25SLAW17EVX |
Flat-Sealing |
Male Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Plug |
| 25SLAW17MPN |
Flat-Sealing |
Male Thread - parallel |
3/8 |
na |
na |
Brass nickel plated |
Plug |
| 25SLAW17RVX |
Flat-Sealing |
Male Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Plug |
| 25SLAW21EVX |
Flat-Sealing |
Male Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Plug |
| 25SLAW21MPN |
Flat-Sealing |
Male Thread - parallel |
1/2 |
na |
na |
Brass nickel plated |
Plug |
| 25SLAW21RVX |
Flat-Sealing |
Male Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Plug |
| 25SLIM14MPN |
Flat-Sealing |
Female Thread - metric |
na |
14x1,5 |
na |
Brass nickel plated |
Plug |
| 25SLIM16MPN |
Flat-Sealing |
Female Thread - metric |
na |
16x1,5 |
na |
Brass nickel plated |
Plug |
| 25SLIM18MPN |
Flat-Sealing |
Female Thread - metric |
na |
18x1,5 |
na |
Brass nickel plated |
Plug |
| 25SLIW13EVX |
Flat-Sealing |
Female Thread - parallel |
1/4 |
na |
na |
AISI 316 L |
Plug |
| 25SLIW13MPN |
Flat-Sealing |
Female Thread - parallel |
1/4 |
na |
na |
Brass nickel plated |
Plug |
| 25SLIW13RVX |
Flat-Sealing |
Female Thread - parallel |
1/4 |
na |
na |
AISI 303 |
Plug |
| 25SLIW17EVX |
Flat-Sealing |
Female Thread - parallel |
3/8 |
na |
na |
AISI 316 L |
Plug |
| 25SLIW17MPN |
Flat-Sealing |
Female Thread - parallel |
3/8 |
na |
na |
Brass nickel plated |
Plug |
| 25SLIW17RVX |
Flat-Sealing |
Female Thread - parallel |
3/8 |
na |
na |
AISI 303 |
Plug |
| 25SLIW21EVX |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
na |
AISI 316 L |
Plug |
| 25SLIW21MPN |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
na |
Brass nickel plated |
Plug |
| 25SLIW21RVX |
Flat-Sealing |
Female Thread - parallel |
1/2 |
na |
na |
AISI 303 |
Plug |
| 25SLKK08MPN |
Flat-Sealing |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
Brass nickel plated |
Plug |
| 25SLKK10MPN |
Flat-Sealing |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
Brass nickel plated |
Plug |
| 25SLKK12MPN |
Flat-Sealing |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
Brass nickel plated |
Plug |
| 25SLKO08MPN |
Flat-Sealing |
with Plastic Hose Connection |
na |
na |
6x8 |
Brass nickel plated |
Plug |
| 25SLKO10MPN |
Flat-Sealing |
with Plastic Hose Connection |
na |
na |
8x10 |
Brass nickel plated |
Plug |
| 25SLKO12MPN |
Flat-Sealing |
with Plastic Hose Connection |
na |
na |
9x12 |
Brass nickel plated |
Plug |
| 25SLTF06RVX |
Flat-Sealing |
Hose Barb |
na |
na |
6 |
AISI 303 |
Plug |
| 25SLTF09EVX |
Flat-Sealing |
Hose Barb |
na |
na |
9 |
AISI 316 L |
Plug |
| 25SLTF09MPN |
Flat-Sealing |
Hose Barb |
na |
na |
9 |
Brass nickel plated |
Plug |
| 25SLTF09RVX |
Flat-Sealing |
Hose Barb |
na |
na |
9 |
AISI 303 |
Plug |
| 25SLTF10MPN |
Flat-Sealing |
Hose Barb |
na |
na |
10 |
Brass nickel plated |
Plug |
| 25SLTF13EVX |
Flat-Sealing |
Hose Barb |
na |
na |
13 |
AISI 316 L |
Plug |
| 25SLTF13MPN |
Flat-Sealing |
Hose Barb |
na |
na |
13 |
Brass nickel plated |
Plug |
| 25SLTF13RVX |
Flat-Sealing |
Hose Barb |
na |
na |
13 |
AISI 303 |
Plug |
| 25SLTS06MPN |
Flat-Sealing |
Panel Mount with Hose Barb |
na |
na |
6 |
Brass nickel plated |
Plug |
| 25SLTS10MPN |
Flat-Sealing |
Panel Mount with Hose Barb |
na |
na |
10 |
Brass nickel plated |
Plug |
