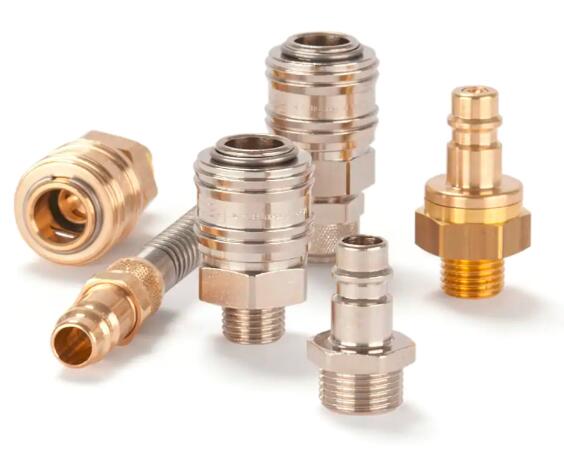

Basic quick coupling system with nominal diameter 7.2 for pneumatic and fluid handling applications up to 35 bar. Coupling system with European standard industrial profile. Available made of brass or stainless steel.
Parker's Basic Quick Coupling Series 26 is an universal brass coupling with European standard industrial profile. It is a coupling system with single-hand operation and standard-valve as well as a small mass size. The ergonomic sleeve design prevents dirt on the valve body.
The right plug for series 26 made of stainless steel can be found under series 25.
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Connection Thread Size (mm) |
Hose I.D. (mm) |
External Hex (mm) |
Material |
| 26KAAD14MPN |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
22 |
Brass nickel plated |
| 26KAAD14MPX |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
22 |
Brass |
| 26KAAD16MPN |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
22 |
Brass nickel plated |
| 26KAAD16MPX |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
22 |
Brass |
| 26KAAD18MPN |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
22 |
Brass nickel plated |
| 26KAAD18MPX |
Coupling |
Single Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
22 |
Brass |
| 26KAAW10MPN |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
22 |
Brass nickel plated |
| 26KAAW10MPX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
22 |
Brass |
| 26KAAW13MPN |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
22 |
Brass nickel plated |
| 26KAAW13MPX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
22 |
Brass |
| 26KAAW13RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
19 |
AISI 303 |
| 26KAAW17MPN |
Coupling |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
22 |
Brass nickel plated |
| 26KAAW17MPX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
22 |
Brass |
| 26KAAW17RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
19 |
AISI 303 |
| 26KAAW21MPN |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
22 |
Brass nickel plated |
| 26KAAW21MPNS_09 |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
24 |
Brass nickel plated |
| 26KAAW21MPX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
22 |
Brass |
| 26KAAW21MPXS_36 |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
24 |
Brass |
| 26KAAW21RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
24 |
AISI 303 |
| 26KAIM14MPN |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
22 |
Brass nickel plated |
| 26KAIM14MPX |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
22 |
Brass |
| 26KAIM16MPN |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
22 |
Brass nickel plated |
| 26KAIM16MPX |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
22 |
Brass |
| 26KAIM18MPN |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
22 |
Brass nickel plated |
| 26KAIM18MPX |
Coupling |
Single Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
22 |
Brass |
| 26KAIW13MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
22 |
Brass nickel plated |
| 26KAIW13MPX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
22 |
Brass |
| 26KAIW13RVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
19 |
AISI 303 |
| 26KAIW17MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
22 |
Brass nickel plated |
| 26KAIW17MPX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
22 |
Brass |
| 26KAIW17RVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
19 |
AISI 303 |
| 26KAIW21MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
24 |
Brass nickel plated |
| 26KAIW21MPX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
24 |
Brass |
| 26KAIW21RVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
24 |
AISI 303 |
| 26KAKK08MPN |
Coupling |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
21 |
Brass nickel plated |
| 26KAKK08MPX |
Coupling |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
21 |
Brass |
| 26KAKK10MPN |
Coupling |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
21 |
Brass nickel plated |
| 26KAKK10MPX |
Coupling |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
21 |
Brass |
| 26KAKK12MPN |
Coupling |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
21 |
Brass nickel plated |
| 26KAKK12MPX |
Coupling |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
21 |
Brass |
| 26KAKO06MPN |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
21 |
Brass nickel plated |
| 26KAKO06MPX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
21 |
Brass |
| 26KAKO08MPN |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
21 |
Brass nickel plated |
| 26KAKO08MPX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
21 |
Brass |
| 26KAKO10MPN |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
21 |
Brass nickel plated |
| 26KAKO10MPX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
21 |
Brass |
| 26KAKO12MPN |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
21 |
Brass nickel plated |
| 26KAKO12MPX |
Coupling |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
21 |
Brass |
| 26KATF06MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
21 |
Brass nickel plated |
| 26KATF06MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
21 |
Brass |
| 26KATF06RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
19 |
AISI 303 |
| 26KATF08MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
21 |
Brass nickel plated |
| 26KATF08MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
21 |
Brass |
| 26KATF08RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
19 |
AISI 303 |
| 26KATF09MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
21 |
Brass nickel plated |
| 26KATF09MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
21 |
Brass |
| 26KATF09RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
19 |
AISI 303 |
| 26KATF10MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
21 |
Brass nickel plated |
| 26KATF10MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
21 |
Brass |
| 26KATF10RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
19 |
AISI 303 |
| 26KATF13MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
21 |
Brass nickel plated |
| 26KATF13MPX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
21 |
Brass |
| 26KATF13RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
19 |
AISI 303 |
| 26KATP06MPN |
Coupling |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
6 |
21 |
Brass nickel plated |
| 26KATP06MPX |
Coupling |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
6 |
21 |
Brass |
| 26KATP10MPN |
Coupling |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
10 |
21 |
Brass nickel plated |
| 26KATP10MPX |
Coupling |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
10 |
21 |
Brass |
| 26KATP13MPN |
Coupling |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
13 |
21 |
Brass nickel plated |
| 26KATP13MPX |
Coupling |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
13 |
21 |
Brass |
| 26KATS06MPN |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
21 |
Brass nickel plated |
| 26KATS06MPX |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
21 |
Brass |
| 26KATS08MPN |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
21 |
Brass nickel plated |
| 26KATS08MPX |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
21 |
Brass |
| 26KATS10MPN |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
21 |
Brass nickel plated |
| 26KATS10MPX |
Coupling |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
21 |
Brass |
| 26KBAD16MPN |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
22 |
Brass nickel plated |
| 26KBAD16MPX |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
22 |
Brass |
| 26KBAD18MPN |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
22 |
Brass nickel plated |
| 26KBAD18MPX |
Coupling |
Double Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
22 |
Brass |
| 26KBAW10MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
22 |
Brass nickel plated |
| 26KBAW10MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
22 |
Brass |
| 26KBAW13MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
22 |
Brass nickel plated |
| 26KBAW13MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
22 |
Brass |
| 26KBAW17MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
22 |
Brass nickel plated |
| 26KBAW17MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
22 |
Brass |
| 26KBAW21MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
24 |
Brass nickel plated |
| 26KBAW21MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
24 |
Brass |
| 26KBIM16MPN |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
22 |
Brass nickel plated |
| 26KBIM16MPX |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
22 |
Brass |
| 26KBIM18MPN |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
22 |
Brass nickel plated |
| 26KBIM18MPX |
Coupling |
Double Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
22 |
Brass |
| 26KBIW13MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
22 |
Brass nickel plated |
| 26KBIW13MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
22 |
Brass |
| 26KBIW17MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
22 |
Brass nickel plated |
| 26KBIW17MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
22 |
Brass |
| 26KBIW21MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
24 |
Brass nickel plated |
| 26KBIW21MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
24 |
Brass |
| 26KBKK08MPN |
Coupling |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
21 |
Brass nickel plated |
| 26KBKK08MPX |
Coupling |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
21 |
Brass |
| 26KBKK10MPN |
Coupling |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
21 |
Brass nickel plated |
| 26KBKK10MPX |
Coupling |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
21 |
Brass |
| 26KBKK12MPN |
Coupling |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
21 |
Brass nickel plated |
| 26KBKK12MPX |
Coupling |
Double Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
21 |
Brass |
| 26KBKO08MPN |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
21 |
Brass nickel plated |
| 26KBKO08MPX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
21 |
Brass |
| 26KBKO10MPN |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
21 |
Brass nickel plated |
| 26KBKO10MPX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
21 |
Brass |
| 26KBKO12MPN |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
21 |
Brass nickel plated |
| 26KBKO12MPX |
Coupling |
Double Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
21 |
Brass |
| 26KBTF06MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
21 |
Brass nickel plated |
| 26KBTF06MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
6 |
21 |
Brass |
| 26KBTF08MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
21 |
Brass nickel plated |
| 26KBTF08MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
8 |
21 |
Brass |
| 26KBTF09MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
21 |
Brass nickel plated |
| 26KBTF09MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
9 |
21 |
Brass |
| 26KBTF10MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
21 |
Brass nickel plated |
| 26KBTF10MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
10 |
21 |
Brass |
| 26KBTF13MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
21 |
Brass nickel plated |
| 26KBTF13MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
na |
13 |
21 |
Brass |
| 26KBTP06MPN |
Coupling |
Double Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
6 |
21 |
Brass nickel plated |
| 26KBTP06MPX |
Coupling |
Double Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
6 |
21 |
Brass |
| 26KBTP10MPN |
Coupling |
Double Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
10 |
21 |
Brass nickel plated |
| 26KBTP10MPX |
Coupling |
Double Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
10 |
21 |
Brass |
| 26KBTP13MPN |
Coupling |
Double Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
13 |
21 |
Brass nickel plated |
| 26KBTP13MPX |
Coupling |
Double Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
13 |
21 |
Brass |
| 26KBTS06MPN |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
21 |
Brass nickel plated |
| 26KBTS06MPX |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
21 |
Brass |
| 26KBTS08MPN |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
21 |
Brass nickel plated |
| 26KBTS08MPX |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
21 |
Brass |
| 26KBTS10MPN |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
21 |
Brass nickel plated |
| 26KBTS10MPX |
Coupling |
Double Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
21 |
Brass |
| 26SFAD14MXN |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
17 |
Brass nickel plated |
| 26SFAD14MXX |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
14x1,5 |
na |
17 |
Brass |
| 26SFAD16MXN |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
19 |
Brass nickel plated |
| 26SFAD16MXX |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
16x1,5 |
na |
19 |
Brass |
| 26SFAD18MXN |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
22 |
Brass nickel plated |
| 26SFAD18MXX |
Plug |
Single Shut-Off |
Male Thread - metric |
na |
18x1,5 |
na |
22 |
Brass |
| 26SFAW10MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
14 |
Brass nickel plated |
| 26SFAW10MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/8 |
na |
na |
14 |
Brass |
| 26SFAW13MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
17 |
Brass nickel plated |
| 26SFAW13MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
na |
17 |
Brass |
| 26SFAW17MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
19 |
Brass nickel plated |
| 26SFAW17MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
na |
19 |
Brass |
| 26SFAW21MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
24 |
Brass nickel plated |
| 26SFAW21MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
na |
24 |
Brass |
| 26SFIM14MXN |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
17 |
Brass nickel plated |
| 26SFIM14MXX |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
14x1,5 |
na |
17 |
Brass |
| 26SFIM16MXN |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
19 |
Brass nickel plated |
| 26SFIM16MXX |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
16x1,5 |
na |
19 |
Brass |
| 26SFIM18MXN |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
22 |
Brass nickel plated |
| 26SFIM18MXX |
Plug |
Single Shut-Off |
Female Thread - metric |
na |
18x1,5 |
na |
22 |
Brass |
| 26SFIW10MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
14 |
Brass nickel plated |
| 26SFIW10MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/8 |
na |
na |
14 |
Brass |
| 26SFIW13MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
17 |
Brass nickel plated |
| 26SFIW13MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
na |
17 |
Brass |
| 26SFIW17MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
19 |
Brass nickel plated |
| 26SFIW17MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
na |
19 |
Brass |
| 26SFIW21MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
24 |
Brass nickel plated |
| 26SFIW21MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
na |
24 |
Brass |
| 26SFKK06MXN |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
4x6 |
na |
Brass nickel plated |
| 26SFKK06MXX |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
4x6 |
na |
Brass |
| 26SFKK08MXN |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
na |
Brass nickel plated |
| 26SFKK08MXX |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
6x8 |
na |
Brass |
| 26SFKK10MXN |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
17 |
Brass nickel plated |
| 26SFKK10MXX |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
8x10 |
17 |
Brass |
| 26SFKK12MXN |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
17 |
Brass nickel plated |
| 26SFKK12MXX |
Plug |
Single Shut-Off |
Plastic Hose Connection with Spring Guard |
na |
na |
9x12 |
17 |
Brass |
| 26SFKO06MXN |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
na |
Brass nickel plated |
| 26SFKO06MXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
4x6 |
na |
Brass |
| 26SFKO08MXN |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
na |
Brass nickel plated |
| 26SFKO08MXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
6x8 |
na |
Brass |
| 26SFKO10MXN |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
17 |
Brass nickel plated |
| 26SFKO10MXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
8x10 |
17 |
Brass |
| 26SFKO12MXN |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
17 |
Brass nickel plated |
| 26SFKO12MXX |
Plug |
Single Shut-Off |
with Plastic Hose Connection |
na |
na |
9x12 |
17 |
Brass |
| 26SFTF04MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass nickel plated |
| 26SFTF04MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
4 |
na |
Brass |
| 26SFTF06MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
na |
Brass nickel plated |
| 26SFTF06MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
6 |
na |
Brass |
| 26SFTF08MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
na |
Brass nickel plated |
| 26SFTF08MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
8 |
na |
Brass |
| 26SFTF09MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
na |
Brass nickel plated |
| 26SFTF09MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
9 |
na |
Brass |
| 26SFTF10MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
na |
Brass nickel plated |
| 26SFTF10MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
10 |
na |
Brass |
| 26SFTF13MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
na |
Brass nickel plated |
| 26SFTF13MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
na |
13 |
na |
Brass |
| 26SFTP06MXN |
Plug |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
6 |
na |
Brass nickel plated |
| 26SFTP06MXX |
Plug |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
6 |
na |
Brass |
| 26SFTP10MXN |
Plug |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
10 |
na |
Brass nickel plated |
| 26SFTP10MXX |
Plug |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
10 |
na |
Brass |
| 26SFTP13MXN |
Plug |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
13 |
na |
Brass nickel plated |
| 26SFTP13MXX |
Plug |
Single Shut-Off |
Hose Barb - for Parker plug-in hose |
na |
na |
13 |
na |
Brass |
| 26SFTS06MXN |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
14 |
Brass nickel plated |
| 26SFTS06MXX |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
6 |
14 |
Brass |
| 26SFTS08MXN |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
17 |
Brass nickel plated |
| 26SFTS08MXX |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
8 |
17 |
Brass |
| 26SFTS10MXN |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
17 |
Brass nickel plated |
| 26SFTS10MXX |
Plug |
Single Shut-Off |
Panel Mount with Hose Barb |
na |
na |
10 |
17 |
Brass |
| 26SRTF06MXN |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
6 |
21 |
Brass nickel plated |
| 26SRTF06MXX |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
6 |
21 |
Brass |
| 26SRTF08MXN |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
8 |
21 |
Brass nickel plated |
| 26SRTF08MXX |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
8 |
21 |
Brass |
| 26SRTF09MXN |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
9 |
21 |
Brass nickel plated |
| 26SRTF09MXX |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
9 |
21 |
Brass |
| 26SRTF10MXN |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
10 |
21 |
Brass nickel plated |
| 26SRTF10MXX |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
10 |
21 |
Brass |
| 26SRTF13MXN |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
13 |
21 |
Brass nickel plated |
| 26SRTF13MXX |
Plug |
Single Shut-Off |
Recoil Eliminator with Hose Barb |
na |
na |
13 |
21 |
Brass |
