Parker Quick Couplings
Premium Quick Coupling with European Profile, Series 27
Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.
Parker's 1/2" universal industrial coupling with standard European profile for use with large pneumatic consumers.
Coupling system with single-hand operation. UltraFlo valve for optimum flow and low pressure drop. The series stands out for its robust design (steel sleeve), extremely high flow and long service life even with the harshest use. The collar design minimises damage to the valve body.

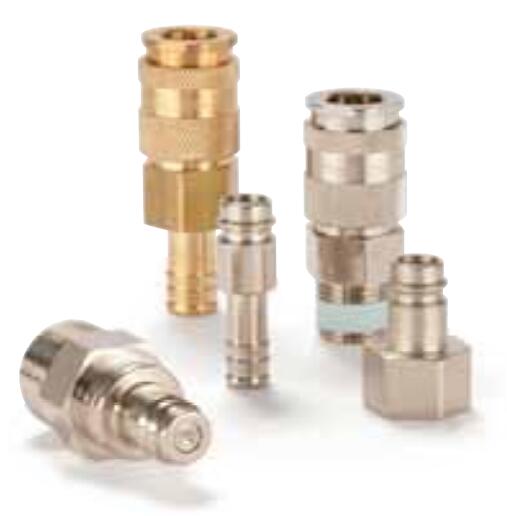

Premium Quick Coupling with European Profile, Series 27
Markets:
- Machinery Construction
- Trade
- Automotive
- Life Science
- Process
- Food & Beverage
- Aerospace
- Mobile Hydraulics
- Industrial
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Higher working pressure compared to competitve products
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
- Labotory Gas Supply
- Cooling of Electronic Components
- Food and chemical processing
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-15 to -20 °C |
| Diameter: |
Nominal: 10 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Flow Rate: |
238 to 634 Gal/min, 900, 2400 L/min |
| Interchange Type: |
Europe |
| Materials of Construction: |
Brass / Steel, Stainless Steel |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
High Flow Air, Poppet |
| Seal Material: |
NBR, FKM |
| Valve Included: |
Yes or No acc. to the version |
| Length: |
33 up to 76 mm |
| Hex Size: |
17 up to 32 mm |
| Outside Diameter: |
15 up to 27 mm |
| Maximum Operating Temperature: |
212 to 392 °C |
Premium Quick Coupling with European Profile, Series 27 型号
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 27KAAK13MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 27KAAK17MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 27KAAK21MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 27KAAK26MPN |
Coupling |
Single Shut-Off |
Male Thread - tapered |
3/4 |
na |
Brass nickel plated |
| 27KAAW13RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
AISI 303 |
| 27KAAW17EVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27KAAW17RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 303 |
| 27KAAW21EVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27KAAW21RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 303 |
| 27KAAW26EVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27KAAW26RVX |
Coupling |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 303 |
| 27KAIW13MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 27KAIW17EVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27KAIW17MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 27KAIW17RVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 303 |
| 27KAIW21EVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27KAIW21MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 27KAIW21RVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 303 |
| 27KAIW26EVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27KAIW26MPN |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 27KAIW26RVX |
Coupling |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 303 |
| 27KATF06MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
6 |
Brass nickel plated |
| 27KATF08EVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
8 |
AISI 316 L |
| 27KATF08MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
8 |
Brass nickel plated |
| 27KATF09EVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
9 |
AISI 316 L |
| 27KATF09MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
9 |
Brass nickel plated |
| 27KATF09RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
9 |
AISI 303 |
| 27KATF10EVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
10 |
AISI 316 L |
| 27KATF10MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
10 |
Brass nickel plated |
| 27KATF13EVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
13 |
AISI 316 L |
| 27KATF13MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 27KATF13RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
13 |
AISI 303 |
| 27KATF16EVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
16 |
AISI 316 L |
| 27KATF16MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
16 |
Brass nickel plated |
| 27KATF16RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
16 |
AISI 303 |
| 27KATF19EVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
19 |
AISI 316 L |
| 27KATF19MPN |
Coupling |
Single Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 27KATF19RVX |
Coupling |
Single Shut-Off |
Hose Barb |
na |
19 |
AISI 303 |
| 27KBAK13BPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 27KBAK13BPX |
Coupling |
Double Shut-Off |
Male Thread - tapered |
1/4 |
na |
Brass |
| 27KBAK17BPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 27KBAK17BPX |
Coupling |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass |
| 27KBAK21BPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 27KBAK21BPX |
Coupling |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass |
| 27KBAK26BPN |
Coupling |
Double Shut-Off |
Male Thread - tapered |
3/4 |
na |
Brass nickel plated |
| 27KBAK26BPX |
Coupling |
Double Shut-Off |
Male Thread - tapered |
3/4 |
na |
Brass |
| 27KBAW13RVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
AISI 303 |
| 27KBAW17EVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27KBAW17RVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 303 |
| 27KBAW21EVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27KBAW21RVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 303 |
| 27KBAW26EVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27KBAW26RVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 303 |
| 27KBIW13BPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 27KBIW13BPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass |
| 27KBIW13EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
AISI 316 L |
| 27KBIW17BPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 27KBIW17BPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass |
| 27KBIW17EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27KBIW17RVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 303 |
| 27KBIW21BPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 27KBIW21BPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass |
| 27KBIW21EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27KBIW21RVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 303 |
| 27KBIW26BPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 27KBIW26BPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass |
| 27KBIW26EVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27KBIW26RVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 303 |
| 27KBTF06BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
6 |
Brass nickel plated |
| 27KBTF06BPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
6 |
Brass |
| 27KBTF08BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
8 |
Brass nickel plated |
| 27KBTF08BPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
8 |
Brass |
| 27KBTF09BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
9 |
Brass nickel plated |
| 27KBTF09BPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
9 |
Brass |
| 27KBTF10BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
10 |
Brass nickel plated |
| 27KBTF10BPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
10 |
Brass |
| 27KBTF13BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 27KBTF13BPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass |
| 27KBTF13EVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
AISI 316 L |
| 27KBTF13RVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
AISI 303 |
| 27KBTF16BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
16 |
Brass nickel plated |
| 27KBTF16BPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
16 |
Brass |
| 27KBTF16EVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
16 |
AISI 316 L |
| 27KBTF16RVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
16 |
AISI 303 |
| 27KBTF19BPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 27KBTF19BPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass |
| 27KBTF19EVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
AISI 316 L |
| 27KBTF19RVX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
AISI 303 |
| 27SBAK13MPN |
Plug |
Double Shut-Off |
Male Thread - tapered |
1/4 |
na |
Brass nickel plated |
| 27SBAK17MPN |
Plug |
Double Shut-Off |
Male Thread - tapered |
3/8 |
na |
Brass nickel plated |
| 27SBAK21MPN |
Plug |
Double Shut-Off |
Male Thread - tapered |
1/2 |
na |
Brass nickel plated |
| 27SBAK26MPN |
Plug |
Double Shut-Off |
Male Thread - tapered |
3/4 |
na |
Brass nickel plated |
| 27SBAW13RVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/4 |
na |
AISI 303 |
| 27SBAW17EVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27SBAW17RVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 303 |
| 27SBAW21EVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27SBAW21RVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 303 |
| 27SBAW26EVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27SBAW26RVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 303 |
| 27SBIW13EVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
AISI 316 L |
| 27SBIW13MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
Brass nickel plated |
| 27SBIW13RVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/4 |
na |
AISI 303 |
| 27SBIW17EVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27SBIW17MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 27SBIW17RVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 303 |
| 27SBIW21EVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27SBIW21MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 27SBIW21RVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 303 |
| 27SBIW26EVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27SBIW26MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 27SBIW26RVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 303 |
| 27SBTF06MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
6 |
Brass nickel plated |
| 27SBTF08MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
8 |
Brass nickel plated |
| 27SBTF09EVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
9 |
AISI 316 L |
| 27SBTF09MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
9 |
Brass nickel plated |
| 27SBTF09RVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
9 |
AISI 303 |
| 27SBTF10MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
10 |
Brass nickel plated |
| 27SBTF13EVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
13 |
AISI 316 L |
| 27SBTF13MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 27SBTF13RVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
13 |
AISI 303 |
| 27SBTF16EVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
16 |
AISI 316 L |
| 27SBTF16MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
16 |
Brass nickel plated |
| 27SBTF16RVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
16 |
AISI 303 |
| 27SBTF19EVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
19 |
AISI 316 L |
| 27SBTF19MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 27SBTF19RVX |
Plug |
Double Shut-Off |
Hose Barb |
na |
19 |
AISI 303 |
| 27SFAK13SXN |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/4 |
na |
Steel nickel plated |
| 27SFAK17SXN |
Plug |
Single Shut-Off |
Male Thread - tapered |
3/8 |
na |
Steel nickel plated |
| 27SFAK21SXN |
Plug |
Single Shut-Off |
Male Thread - tapered |
1/2 |
na |
Steel nickel plated |
| 27SFAK26SXN |
Plug |
Single Shut-Off |
Male Thread - tapered |
3/4 |
na |
Steel nickel plated |
| 27SFAW13EXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
AISI 316 L |
| 27SFAW13RXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/4 |
na |
AISI 303 |
| 27SFAW17EXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27SFAW17RXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/8 |
na |
AISI 303 |
| 27SFAW21EXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27SFAW21RXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
AISI 303 |
| 27SFAW26EXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27SFAW26RXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
AISI 303 |
| 27SFIW13SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 27SFIW17EXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 316 L |
| 27SFIW17RXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
AISI 303 |
| 27SFIW17SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 27SFIW21EXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 316 L |
| 27SFIW21RXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
AISI 303 |
| 27SFIW21SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 27SFIW26EXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 316 L |
| 27SFIW26RXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
AISI 303 |
| 27SFIW26SXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
Steel nickel plated |
| 27SFTF06RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
6 |
AISI 303 |
| 27SFTF06SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
6 |
Steel nickel plated |
| 27SFTF08RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
8 |
AISI 303 |
| 27SFTF08SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
8 |
Steel nickel plated |
| 27SFTF09EXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
9 |
AISI 316 L |
| 27SFTF09RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
9 |
AISI 303 |
| 27SFTF09SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
9 |
Steel nickel plated |
| 27SFTF10RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
10 |
AISI 303 |
| 27SFTF10SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
10 |
Steel nickel plated |
| 27SFTF13EXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
13 |
AISI 316 L |
| 27SFTF13RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
13 |
AISI 303 |
| 27SFTF13SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
13 |
Steel nickel plated |
| 27SFTF16EXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
16 |
AISI 316 L |
| 27SFTF16RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
16 |
AISI 303 |
| 27SFTF16SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
16 |
Steel nickel plated |
| 27SFTF19EXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
AISI 316 L |
| 27SFTF19RXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
AISI 303 |
| 27SFTF19SXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
Steel nickel plated |
|
