Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

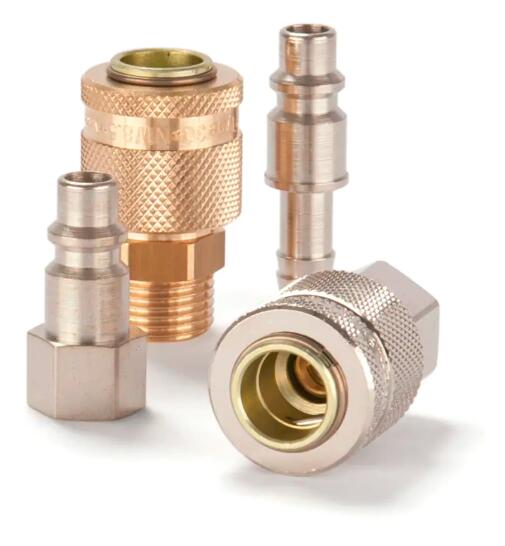

Quick Coupling with ISO 6150 B Profile, Series 30
Quick coupling system with nominal diameter 8.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass/steel.
Parker's Series 30 is a robust steel coupling 3/8" according to ISO 6150 B and US MIL-SPEC 4109. The coupling system stands out for its very robust design with steel valve bodies. The high insertion depth is guaranteed by an optimized plug guide.
Quick Coupling with ISO 6150 B Profile, Series 30
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- Coupling system according to ISO 6150 B and US MIL-SPEC 4109
- Robust design with steel valve bodies
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 8,5 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO 6150 B, MIL |
| Interchange Type: |
ISO 6150 B |
| Materials of Construction: |
Brass / Steel |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
40 to 66 mm |
| Hex Size: |
17 to 24 mm |
| Outside Diameter: |
16 to 30 mm |
| Flow Rate: |
890 L/min |
Quick Coupling with ISO 6150 B Profile, Series 30 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 30KAAW13SPN |
Coupling |
Male Thread - parallel |
1/4 |
na |
Brass / Steel nickel plated |
| 30KAAW13SPX |
Coupling |
Male Thread - parallel |
1/4 |
na |
Brass / Steel |
| 30KAAW17SPN |
Coupling |
Male Thread - parallel |
3/8 |
na |
Brass / Steel nickel plated |
| 30KAAW17SPX |
Coupling |
Male Thread - parallel |
3/8 |
na |
Brass / Steel |
| 30KAAW21SPN |
Coupling |
Male Thread - parallel |
1/2 |
na |
Brass / Steel nickel plated |
| 30KAAW21SPX |
Coupling |
Male Thread - parallel |
1/2 |
na |
Brass / Steel |
| 30KAIW13SPN |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass / Steel nickel plated |
| 30KAIW13SPX |
Coupling |
Female Thread - parallel |
1/4 |
na |
Brass / Steel |
| 30KAIW17SPN |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass / Steel nickel plated |
| 30KAIW17SPX |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass / Steel |
| 30KAIW21SPN |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass / Steel nickel plated |
| 30KAIW21SPX |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass / Steel |
| 30KATF06SPN |
Coupling |
Hose Barb |
na |
6 |
Brass / Steel nickel plated |
| 30KATF06SPX |
Coupling |
Hose Barb |
na |
6 |
Brass / Steel |
| 30KATF08SPN |
Coupling |
Hose Barb |
na |
8 |
Brass / Steel nickel plated |
| 30KATF08SPX |
Coupling |
Hose Barb |
na |
8 |
Brass / Steel |
| 30KATF10SPN |
Coupling |
Hose Barb |
na |
10 |
Brass / Steel nickel plated |
| 30KATF10SPX |
Coupling |
Hose Barb |
na |
10 |
Brass / Steel |
| 30KATF13SPN |
Coupling |
Hose Barb |
na |
13 |
Brass / Steel nickel plated |
| 30KATF13SPX |
Coupling |
Hose Barb |
na |
13 |
Brass / Steel |
| 30SFAW13SXN |
Plug |
Male Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 30SFAW17SXN |
Plug |
Male Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 30SFAW21SXN |
Plug |
Male Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 30SFIW13SXN |
Plug |
Female Thread - parallel |
1/4 |
na |
Steel nickel plated |
| 30SFIW17SXN |
Plug |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 30SFIW21SXN |
Plug |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 30SFTF06SXN |
Plug |
Hose Barb |
na |
6 |
Steel nickel plated |
| 30SFTF08SXN |
Plug |
Hose Barb |
na |
8 |
Steel nickel plated |
| 30SFTF10SXN |
Plug |
Hose Barb |
na |
10 |
Steel nickel plated |
| 30SFTF13SXN |
Plug |
Hose Barb |
na |
13 |
Steel nickel plated |
|
