Parker Quick Couplings

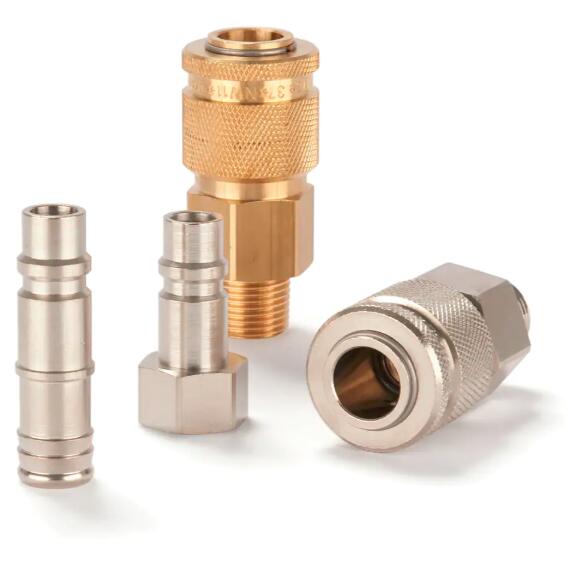

Quick Coupling with ISO 6150 B Profile, Series 37
Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.
Parker's Series 37 is a robust brass coupling system 1/2" according to ISO 6150 B and US MIL-SPEC 4109.
This coupling system is developed for single-hand operation. The high insertion depth is guaranteed by an optimized plug guide.
Quick Coupling with ISO 6150 B Profile, Series 37
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- Coupling system according to ISO 6150 B and US MIL-SPEC 4109
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 11 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Specifications Met: |
ISO 6150 B, MIL |
| Interchange Type: |
ISO 6150 B |
| Materials of Construction: |
Brass |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
22 to 86 mm |
| Hex Size: |
17 to 32 mm |
| Outside Diameter: |
35 mm |
| Flow Rate: |
2350 L/min |
Quick Coupling with ISO 6150 B Profile, Series 37 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 37KAAN21MPN |
Coupling |
Male Thread - tapered |
1/2 |
na |
Brass - nickel plated |
| 37KAAN21MPX |
Coupling |
Male Thread - tapered |
1/2 |
na |
Brass |
| 37KAAN26MPN |
Coupling |
Male Thread - tapered |
3/4 |
na |
Brass - nickel plated |
| 37KAAN26MPX |
Coupling |
Male Thread - tapered |
3/4 |
na |
Brass |
| 37KAAW17MPN |
Coupling |
Male Thread - parallel |
3/8 |
na |
Brass - nickel plated |
| 37KAAW17MPX |
Coupling |
Male Thread - parallel |
3/8 |
na |
Brass |
| 37KAAW21MPN |
Coupling |
Male Thread - parallel |
1/2 |
na |
Brass - nickel plated |
| 37KAAW21MPX |
Coupling |
Male Thread - parallel |
1/2 |
na |
Brass |
| 37KAAW26MPN |
Coupling |
Male Thread - parallel |
3/4 |
na |
Brass - nickel plated |
| 37KAAW26MPX |
Coupling |
Male Thread - parallel |
3/4 |
na |
Brass |
| 37KAIN17MPN |
Coupling |
Female NPSF Thread |
3/8 |
na |
Brass - nickel plated |
| 37KAIN17MPX |
Coupling |
Female NPSF Thread |
3/8 |
na |
Brass |
| 37KAIN21MPN |
Coupling |
Female NPSF Thread |
1/2 |
na |
Brass - nickel plated |
| 37KAIN21MPX |
Coupling |
Female NPSF Thread |
1/2 |
na |
Brass |
| 37KAIN26MPN |
Coupling |
Female NPSF Thread |
3/4 |
na |
Brass - nickel plated |
| 37KAIN26MPX |
Coupling |
Female NPSF Thread |
3/4 |
na |
Brass |
| 37KATF10MPN |
Coupling |
Hose Barb |
na |
10 |
Brass - nickel plated |
| 37KATF10MPX |
Coupling |
Hose Barb |
na |
10 |
Brass |
| 37KATF13MPN |
Coupling |
Hose Barb |
na |
13 |
Brass - nickel plated |
| 37KATF13MPX |
Coupling |
Hose Barb |
na |
13 |
Brass |
| 37KATF16MPN |
Coupling |
Hose Barb |
na |
16 |
Brass - nickel plated |
| 37KATF16MPX |
Coupling |
Hose Barb |
na |
16 |
Brass |
| 37KATF19MPN |
Coupling |
Hose Barb |
na |
19 |
Brass - nickel plated |
| 37KATF19MPX |
Coupling |
Hose Barb |
na |
19 |
Brass |
| 37SFAK21SXN |
Plug |
Male Thread - tapered |
1/2 |
na |
Steel - nickel plated |
| 37SFAK26SXN |
Plug |
Male Thread - tapered |
3/4 |
na |
Steel - nickel plated |
| 37SFIW21SXN |
Plug |
Female Thread - parallel |
1/2 |
na |
Steel - nickel plated |
| 37SFIW26SXN |
Plug |
Female Thread - parallel |
3/4 |
na |
Steel - nickel plated |
| 37SFTF10SXN |
Plug |
Hose Barb |
na |
10 |
Steel - nickel plated |
| 37SFTF13SXN |
Plug |
Hose Barb |
na |
13 |
Steel - nickel plated |
| 37SFTF16SXN |
Plug |
Hose Barb |
na |
16 |
Steel - nickel plated |
| 37SFTF19SXN |
Plug |
Hose Barb |
na |
19 |
Steel - nickel plated |
|
