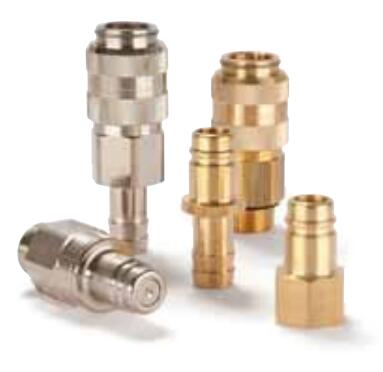

Quick Coupling with Parker own Profile, Series 38
Quick coupling system with nominal diameter 15 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.
Parker's Series 38 is a compact industrial coupling system made of brass for use with numerous gaseous and liquid media. The UltraFlo valve guarantees optimum flow and low pressure drop.
Quick Coupling with Parker own Profile, Series 38
Markets:
- Machinery Construction
- Industrial
- Material Handling
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
- Laboratory Gas Supply
- Cooling of Electronic Components
- Food and chemical processing
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 15 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Materials of Construction: |
Brass |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Gases, Pneumatic Media, Water |
| Valve Type: |
High Flow Air, Poppet |
| Valve Included: |
Yes or No acc. to the version |
| Length: |
49 up to 113 mm |
| Hex Size: |
24 up to 36 mm |
| Outside Diameter: |
30 to 40 mm |
| Seal Material: |
NBR |
| Flow Rate: |
2150 to 7500 L/min |
Quick Coupling with Parker own Profile, Series 38 型号
| Part |
Type |
Version |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 38KBAW21MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 38KBAW21MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass |
| 38KBAW26MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 38KBAW26MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass |
| 38KBAW33MPN |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass nickel plated |
| 38KBAW33MPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass |
| 38KBIW21MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 38KBIW21MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass |
| 38KBIW26MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 38KBIW26MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass |
| 38KBIW33MPN |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass nickel plated |
| 38KBIW33MPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass |
| 38KBTF13MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 38KBTF13MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass |
| 38KBTF16MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
16 |
Brass nickel plated |
| 38KBTF16MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
16 |
Brass |
| 38KBTF19MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 38KBTF19MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass |
| 38KBTF25MPN |
Coupling |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass nickel plated |
| 38KBTF25MPX |
Coupling |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass |
| 38SBAW21MPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 38SBAW21MPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass |
| 38SBAW26MPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 38SBAW26MPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass |
| 38SBAW33MPN |
Plug |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass nickel plated |
| 38SBAW33MPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
1 |
na |
Brass |
| 38SBIW21MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 38SBIW21MPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass |
| 38SBIW26MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 38SBIW26MPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass |
| 38SBIW33MPN |
Plug |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass nickel plated |
| 38SBIW33MPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
1 |
na |
Brass |
| 38SBTF13MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 38SBTF13MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
13 |
Brass |
| 38SBTF16MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
16 |
Brass nickel plated |
| 38SBTF16MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
16 |
Brass |
| 38SBTF19MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 38SBTF19MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
19 |
Brass |
| 38SBTF25MPN |
Plug |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass nickel plated |
| 38SBTF25MPX |
Plug |
Double Shut-Off |
Hose Barb |
na |
25 |
Brass |
| 38SFAW21MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 38SFAW21MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1/2 |
na |
Brass |
| 38SFAW26MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 38SFAW26MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
3/4 |
na |
Brass |
| 38SFAW33MXN |
Plug |
Single Shut-Off |
Male Thread - parallel |
1 |
na |
Brass nickel plated |
| 38SFAW33MXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
1 |
na |
Brass |
| 38SFIW21MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 38SFIW21MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1/2 |
na |
Brass |
| 38SFIW26MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass nickel plated |
| 38SFIW26MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
3/4 |
na |
Brass |
| 38SFIW33MXN |
Plug |
Single Shut-Off |
Female Thread - parallel |
1 |
na |
Brass nickel plated |
| 38SFIW33MXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
1 |
na |
Brass |
| 38SFTF13MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
13 |
Brass nickel plated |
| 38SFTF13MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
13 |
Brass |
| 38SFTF16MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
16 |
Brass nickel plated |
| 38SFTF16MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
16 |
Brass |
| 38SFTF19MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
Brass nickel plated |
| 38SFTF19MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
19 |
Brass |
| 38SFTF25MXN |
Plug |
Single Shut-Off |
Hose Barb |
na |
25 |
Brass nickel plated |
| 38SFTF25MXX |
Plug |
Single Shut-Off |
Hose Barb |
na |
25 |
Brass |
|
