Parker Quick Couplings
Quick Coupling with Parker own Profile, Series 40
Quick coupling system with nominal diameter 9 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.
Parker's Series 40 is a corrosion resistant brass coupling system produced for raw applications. The system is suitable for use with nonaggressive liquid media.
This coupling system is developed for single-hand operation. The ergonomic sleeve design prevents dirt on the valve body.

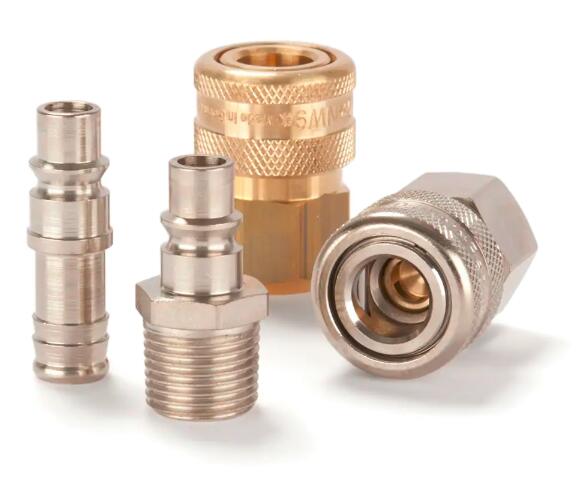

Quick Coupling with Parker own Profile, Series 40
Markets:
- Machinery Construction
- Automotive
Features/Benefits:
- Corrosion resistant
- Single-hand operation for easy and fast connection
- Ergonomic sleeve design prevents dirt on the valve body
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 9.0 mm |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Materials of Construction: |
Brass |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media, Steam, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR |
| Valve Included: |
Yes or No acc. to the version |
| Version: |
Single Shut-Off |
| Length: |
35 to 46 mm |
| Hex Size: |
16 to 27 mm |
| Outside Diameter: |
16 to 32 mm |
| Flow Rate: |
1200 L/min |
Quick Coupling with Parker own Profile, Series 40 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 40KAIW17MPN |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass nickel plated |
| 40KAIW17MPX |
Coupling |
Female Thread - parallel |
3/8 |
na |
Brass |
| 40KAIW21MPN |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass nickel plated |
| 40KAIW21MPX |
Coupling |
Female Thread - parallel |
1/2 |
na |
Brass |
| 40SFAK17SXN |
Plug |
Male Thread - tapered |
3/8 |
na |
Steel nickel plated |
| 40SFAK21SXN |
Plug |
Male Thread - tapered |
1/2 |
na |
Steel nickel plated |
| 40SFAK26SXN |
Plug |
Male Thread - tapered |
3/4 |
na |
Steel nickel plated |
| 40SFIW17SXN |
Plug |
Female Thread - parallel |
3/8 |
na |
Steel nickel plated |
| 40SFIW21SXN |
Plug |
Female Thread - parallel |
1/2 |
na |
Steel nickel plated |
| 40SFTF06SXN |
Plug |
Hose Barb |
na |
6 |
Steel nickel plated |
| 40SFTF08SXN |
Plug |
Hose Barb |
na |
8 |
Steel nickel plated |
| 40SFTF10SXN |
Plug |
Hose Barb |
na |
10 |
Steel nickel plated |
| 40SFTF13SXN |
Plug |
Hose Barb |
na |
13 |
Steel nickel plated |
| 40SFTF19SXN |
Plug |
Hose Barb |
na |
19 |
Steel nickel plated |
|
