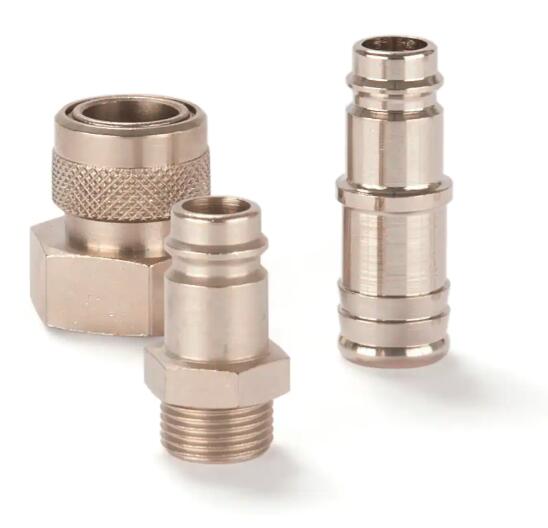

Quick Coupling with Parker own Profile, Series 41
Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass nickel plated.
Parker's Series 41 is a corrosion resistant brass coupling with no valve for applications with liquids in the pressure range up to 35 bar. Series 41 stands out for a high flow with minimal pressure drop.
Quick Coupling with Parker own Profile, Series 41
Markets:
- Machinery Construction
Features/Benefits:
- Corrosion resistant
- High flow with minimal pressure drop
Applications:
- High flow water applications
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 10 mm |
| Application: |
Pneumatic |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
500 psi, 35 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Valve Included: |
No |
| Version: |
Straight-Through |
| Length: |
31 to 48 mm |
| Hex Size: |
24 to 32 mm |
| Outside Diameter: |
15 to 25 mm |
| Flow Rate: |
11 L/min |
| Materials of Construction: |
Brass |
| Seal Material: |
NBR |
Quick Coupling with Parker own Profile, Series 41 型号
|
