Parker Quick Couplings

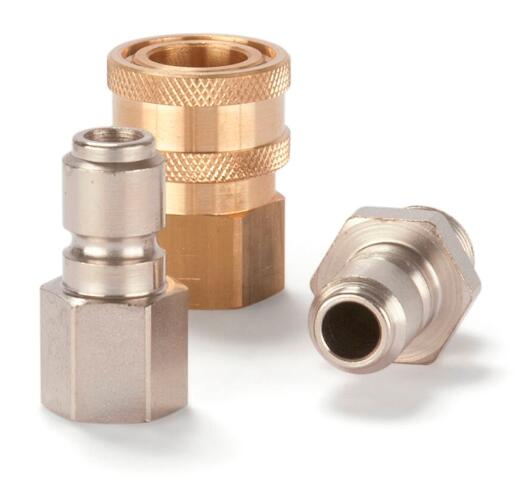

Quick Coupling with Parker own Profile, Series 45
Quick coupling system with nominal diameter 8.5 for pneumatic and fluid handling applications up to 150 bar. Coupling system with Parker own profile. Available made of brass/steel.
Parker's Series 45 is a corrosion resistant brass coupling without valve for applications with non-aggressive liquids in the pressure range up to 150 bar. Series 45 stands out for a high flow with minimal pressure drop.
Quick Coupling with Parker own Profile, Series 45
Markets:
- Machinery Construction
Features/Benefits:
- Corrosion resistant
- High flow with minimal pressure drop
Applications:
- High Flow Water applications
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 8,5 mm |
| Application: |
Pneumatic |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
210 psi, 15 bar |
| Maximum Operating Temperature: |
212 °F, 100 °C |
| Media: |
Pneumatic Media |
| Valve Type: |
Poppet |
| Valve Included: |
No |
| Version: |
Straight-Through |
| Length: |
37 to 43 mm |
| Hex Size: |
19 to 24 mm |
| Outside Diameter: |
28 mm |
| Flow Rate: |
97 L/min |
| Materials of Construction: |
Brass, Steel |
| Seal Material: |
NBR |
Quick Coupling with Parker own Profile, Series 45 型号
|
