Parker Quick Couplings

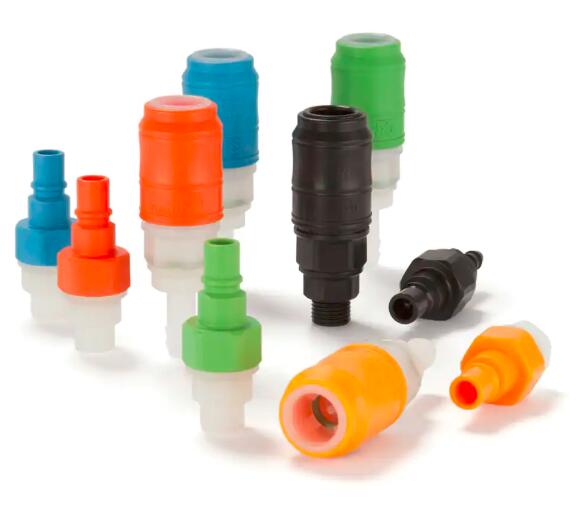

Quick Coupling made of Thermoplastic with Parker Profile, Series 48
Quick coupling system with nominal diameter 7 for pneumatic and fluid handling applications up to 10 bar. Coupling system with Parker profile. Available made of thermoplastic - POM, PVDF or PVDF with peek spring.
Parker's Quick Coupling Series 48 made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The system is also available in a solid plastic design (RectuChem+). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.
The coupling system is developed for single-hand operation. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available with no valve for a straight-through system.
Quick Coupling made of Thermoplastic with Parker Profile, Series 48
Markets:
- Machinery Construction
- Automotive
- Process
- Life Science
- Industrial
Features/Benefits:
- Splash proof design - Plug is sealing prior to opening the valve.
- Only provider of a complete thermoplastic coupling (with PEEK spring)
- No mix-ups between media due to the color coding of coupling and plug
- Single-hand operation for easy and fast connection
Applications:
- Food and chemical processing
- Bio fluid transfer
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
Nominal: 7.0 mm |
| Application: |
Pneumatic & Fluid Handling, Medical Technology |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
Rectus Profile |
| Materials of Construction: |
POM, PVDF |
| Maximum Operating Pressure: |
110 to 140 psi, 8 to 10 bar |
| Maximum Operating Temperature: |
176 to 248 °F, 80 to 120 °C |
| Media: |
Chemical Fluids, Gases, Water |
| Valve Type: |
Poppet |
| Seal Material: |
NBR, FKM |
| Valve Included: |
Yes or No acc. to the version |
| Length: |
35,5 up to 87 mm |
| Hex Size: |
17 up to 24 mm |
| Outside Diameter: |
18 to 26 mm |
| Flow Rate: |
760 to 1100 L/min |
Quick Coupling made of Thermoplastic with Parker Profile, Series 48 型号
| Part |
Type |
Version |
Connection Type |
Color |
Connection Thread Size (inch) |
Hose I.D. |
Material |
| 48KBAW13DPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/4 |
na |
POM |
| 48KBAW13DPXB |
Coupling |
Double Shut-Off |
Male Thread - parallel |
blue |
1/4 |
na |
POM |
| 48KBAW13DPXG |
Coupling |
Double Shut-Off |
Male Thread - parallel |
green |
1/4 |
na |
POM |
| 48KBAW13DPXR |
Coupling |
Double Shut-Off |
Male Thread - parallel |
red |
1/4 |
na |
POM |
| 48KBAW13DPXY |
Coupling |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/4 |
na |
POM |
| 48KBAW13FVP |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/4 |
na |
PVDF (with PEEK spring) |
| 48KBAW13FVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/4 |
na |
PVDF (with metal spring) |
| 48KBAW13FVXB |
Coupling |
Double Shut-Off |
Male Thread - parallel |
blue |
1/4 |
na |
PVDF (with metal spring) |
| 48KBAW13FVXG |
Coupling |
Double Shut-Off |
Male Thread - parallel |
green |
1/4 |
na |
PVDF (with metal spring) |
| 48KBAW13FVXR |
Coupling |
Double Shut-Off |
Male Thread - parallel |
red |
1/4 |
na |
PVDF (with metal spring) |
| 48KBAW13FVXY |
Coupling |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/4 |
na |
PVDF (with metal spring) |
| 48KBAW17DPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
3/8 |
na |
POM |
| 48KBAW17DPXB |
Coupling |
Double Shut-Off |
Male Thread - parallel |
blue |
3/8 |
na |
POM |
| 48KBAW17DPXG |
Coupling |
Double Shut-Off |
Male Thread - parallel |
green |
3/8 |
na |
POM |
| 48KBAW17DPXR |
Coupling |
Double Shut-Off |
Male Thread - parallel |
red |
3/8 |
na |
POM |
| 48KBAW17DPXY |
Coupling |
Double Shut-Off |
Male Thread - parallel |
yellow |
3/8 |
na |
POM |
| 48KBAW17FVP |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
3/8 |
na |
PVDF (with PEEK spring) |
| 48KBAW17FVPB |
Coupling |
Double Shut-Off |
Male Thread - parallel |
blue |
3/8 |
na |
PVDF (with PEEK spring) |
| 48KBAW17FVPG |
Coupling |
Double Shut-Off |
Male Thread - parallel |
green |
3/8 |
na |
PVDF (with PEEK spring) |
| 48KBAW17FVPR |
Coupling |
Double Shut-Off |
Male Thread - parallel |
red |
3/8 |
na |
PVDF (with PEEK spring) |
| 48KBAW17FVPY |
Coupling |
Double Shut-Off |
Male Thread - parallel |
yellow |
3/8 |
na |
PVDF (with PEEK spring) |
| 48KBAW17FVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
3/8 |
na |
PVDF (with metal spring) |
| 48KBAW17FVXB |
Coupling |
Double Shut-Off |
Male Thread - parallel |
blue |
3/8 |
na |
PVDF (with metal spring) |
| 48KBAW17FVXG |
Coupling |
Double Shut-Off |
Male Thread - parallel |
green |
3/8 |
na |
PVDF (with metal spring) |
| 48KBAW17FVXR |
Coupling |
Double Shut-Off |
Male Thread - parallel |
red |
3/8 |
na |
PVDF (with metal spring) |
| 48KBAW17FVXY |
Coupling |
Double Shut-Off |
Male Thread - parallel |
yellow |
3/8 |
na |
PVDF (with metal spring) |
| 48KBAW21DPX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/2 |
na |
POM |
| 48KBAW21DPXB |
Coupling |
Double Shut-Off |
Male Thread - parallel |
blue |
1/2 |
na |
POM |
| 48KBAW21DPXG |
Coupling |
Double Shut-Off |
Male Thread - parallel |
green |
1/2 |
na |
POM |
| 48KBAW21DPXR |
Coupling |
Double Shut-Off |
Male Thread - parallel |
red |
1/2 |
na |
POM |
| 48KBAW21DPXY |
Coupling |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/2 |
na |
POM |
| 48KBAW21FVP |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/2 |
na |
PVDF (with PEEK spring) |
| 48KBAW21FVX |
Coupling |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/2 |
na |
PVDF (with metal spring) |
| 48KBAW21FVXB |
Coupling |
Double Shut-Off |
Male Thread - parallel |
blue |
1/2 |
na |
PVDF (with metal spring) |
| 48KBAW21FVXG |
Coupling |
Double Shut-Off |
Male Thread - parallel |
green |
1/2 |
na |
PVDF (with metal spring) |
| 48KBAW21FVXR |
Coupling |
Double Shut-Off |
Male Thread - parallel |
red |
1/2 |
na |
PVDF (with metal spring) |
| 48KBAW21FVXY |
Coupling |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/2 |
na |
PVDF (with metal spring) |
| 48KBIW13DPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/4 |
na |
POM |
| 48KBIW13DPXB |
Coupling |
Double Shut-Off |
Female Thread - parallel |
blue |
1/4 |
na |
POM |
| 48KBIW13DPXG |
Coupling |
Double Shut-Off |
Female Thread - parallel |
green |
1/4 |
na |
POM |
| 48KBIW13DPXR |
Coupling |
Double Shut-Off |
Female Thread - parallel |
red |
1/4 |
na |
POM |
| 48KBIW13DPXY |
Coupling |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/4 |
na |
POM |
| 48KBIW13FVP |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/4 |
na |
PVDF (with PEEK spring) |
| 48KBIW13FVPB |
Coupling |
Double Shut-Off |
Female Thread - parallel |
blue |
1/4 |
na |
PVDF (with PEEK spring) |
| 48KBIW13FVPG |
Coupling |
Double Shut-Off |
Female Thread - parallel |
green |
1/4 |
na |
PVDF (with PEEK spring) |
| 48KBIW13FVPR |
Coupling |
Double Shut-Off |
Female Thread - parallel |
red |
1/4 |
na |
PVDF (with PEEK spring) |
| 48KBIW13FVPY |
Coupling |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/4 |
na |
PVDF (with PEEK spring) |
| 48KBIW13FVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/4 |
na |
PVDF (with metal spring) |
| 48KBIW13FVXB |
Coupling |
Double Shut-Off |
Female Thread - parallel |
blue |
1/4 |
na |
PVDF (with metal spring) |
| 48KBIW13FVXG |
Coupling |
Double Shut-Off |
Female Thread - parallel |
green |
1/4 |
na |
PVDF (with metal spring) |
| 48KBIW13FVXR |
Coupling |
Double Shut-Off |
Female Thread - parallel |
red |
1/4 |
na |
PVDF (with metal spring) |
| 48KBIW13FVXY |
Coupling |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/4 |
na |
PVDF (with metal spring) |
| 48KBIW17DPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
3/8 |
na |
POM |
| 48KBIW17DPXB |
Coupling |
Double Shut-Off |
Female Thread - parallel |
blue |
3/8 |
na |
POM |
| 48KBIW17DPXG |
Coupling |
Double Shut-Off |
Female Thread - parallel |
green |
3/8 |
na |
POM |
| 48KBIW17DPXR |
Coupling |
Double Shut-Off |
Female Thread - parallel |
red |
3/8 |
na |
POM |
| 48KBIW17DPXY |
Coupling |
Double Shut-Off |
Female Thread - parallel |
yellow |
3/8 |
na |
POM |
| 48KBIW17FVP |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
3/8 |
na |
PVDF (with PEEK spring) |
| 48KBIW17FVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
3/8 |
na |
PVDF (with metal spring) |
| 48KBIW17FVXB |
Coupling |
Double Shut-Off |
Female Thread - parallel |
blue |
3/8 |
na |
PVDF (with metal spring) |
| 48KBIW17FVXG |
Coupling |
Double Shut-Off |
Female Thread - parallel |
green |
3/8 |
na |
PVDF (with metal spring) |
| 48KBIW17FVXR |
Coupling |
Double Shut-Off |
Female Thread - parallel |
red |
3/8 |
na |
PVDF (with metal spring) |
| 48KBIW17FVXY |
Coupling |
Double Shut-Off |
Female Thread - parallel |
yellow |
3/8 |
na |
PVDF (with metal spring) |
| 48KBIW21DPX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/2 |
na |
POM |
| 48KBIW21DPXB |
Coupling |
Double Shut-Off |
Female Thread - parallel |
blue |
1/2 |
na |
POM |
| 48KBIW21DPXG |
Coupling |
Double Shut-Off |
Female Thread - parallel |
green |
1/2 |
na |
POM |
| 48KBIW21DPXR |
Coupling |
Double Shut-Off |
Female Thread - parallel |
red |
1/2 |
na |
POM |
| 48KBIW21DPXY |
Coupling |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/2 |
na |
POM |
| 48KBIW21FVP |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/2 |
na |
PVDF (with PEEK spring) |
| 48KBIW21FVX |
Coupling |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/2 |
na |
PVDF (with metal spring) |
| 48KBIW21FVXB |
Coupling |
Double Shut-Off |
Female Thread - parallel |
blue |
1/2 |
na |
PVDF (with metal spring) |
| 48KBIW21FVXG |
Coupling |
Double Shut-Off |
Female Thread - parallel |
green |
1/2 |
na |
PVDF (with metal spring) |
| 48KBIW21FVXR |
Coupling |
Double Shut-Off |
Female Thread - parallel |
red |
1/2 |
na |
PVDF (with metal spring) |
| 48KBIW21FVXY |
Coupling |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/2 |
na |
PVDF (with metal spring) |
| 48KBKP08FVP |
Coupling |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
6x8 |
PVDF (with PEEK spring) |
| 48KBKP08FVX |
Coupling |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
6x8 |
PVDF (with metal spring) |
| 48KBKP12FVP |
Coupling |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
9x12 |
PVDF (with PEEK spring) |
| 48KBKP12FVPS |
Coupling |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
10x12 |
PVDF (with PEEK spring) |
| 48KBKP12FVX |
Coupling |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
9x12 |
PVDF (with metal spring) |
| 48KBKP12FVXS |
Coupling |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
10x12 |
PVDF (with metal spring) |
| 48KBTF06DPX |
Coupling |
Double Shut-Off |
Hose Barb |
Standard |
na |
6 |
POM |
| 48KBTF06DPXB |
Coupling |
Double Shut-Off |
Hose Barb |
blue |
na |
6 |
POM |
| 48KBTF06DPXG |
Coupling |
Double Shut-Off |
Hose Barb |
green |
na |
6 |
POM |
| 48KBTF06DPXR |
Coupling |
Double Shut-Off |
Hose Barb |
red |
na |
6 |
POM |
| 48KBTF06DPXY |
Coupling |
Double Shut-Off |
Hose Barb |
yellow |
na |
6 |
POM |
| 48KBTF06FVX |
Coupling |
Double Shut-Off |
Hose Barb |
Standard |
na |
6 |
PVDF (with metal spring) |
| 48KBTF06FVXB |
Coupling |
Double Shut-Off |
Hose Barb |
blue |
na |
6 |
PVDF (with metal spring) |
| 48KBTF06FVXG |
Coupling |
Double Shut-Off |
Hose Barb |
green |
na |
6 |
PVDF (with metal spring) |
| 48KBTF06FVXR |
Coupling |
Double Shut-Off |
Hose Barb |
red |
na |
6 |
PVDF (with metal spring) |
| 48KBTF06FVXY |
Coupling |
Double Shut-Off |
Hose Barb |
yellow |
na |
6 |
PVDF (with metal spring) |
| 48KBTF09DPX |
Coupling |
Double Shut-Off |
Hose Barb |
Standard |
na |
9 |
POM |
| 48KBTF09DPXB |
Coupling |
Double Shut-Off |
Hose Barb |
blue |
na |
9 |
POM |
| 48KBTF09DPXG |
Coupling |
Double Shut-Off |
Hose Barb |
green |
na |
9 |
POM |
| 48KBTF09DPXR |
Coupling |
Double Shut-Off |
Hose Barb |
red |
na |
9 |
POM |
| 48KBTF09DPXY |
Coupling |
Double Shut-Off |
Hose Barb |
yellow |
na |
9 |
POM |
| 48KBTF09FVX |
Coupling |
Double Shut-Off |
Hose Barb |
Standard |
na |
9 |
PVDF (with metal spring) |
| 48KBTF09FVXB |
Coupling |
Double Shut-Off |
Hose Barb |
blue |
na |
9 |
PVDF (with metal spring) |
| 48KBTF09FVXG |
Coupling |
Double Shut-Off |
Hose Barb |
green |
na |
9 |
PVDF (with metal spring) |
| 48KBTF09FVXR |
Coupling |
Double Shut-Off |
Hose Barb |
red |
na |
9 |
PVDF (with metal spring) |
| 48KBTF09FVXY |
Coupling |
Double Shut-Off |
Hose Barb |
yellow |
na |
9 |
PVDF (with metal spring) |
| 48KBTF13DPX |
Coupling |
Double Shut-Off |
Hose Barb |
Standard |
na |
13 |
POM |
| 48KBTF13DPXB |
Coupling |
Double Shut-Off |
Hose Barb |
blue |
na |
13 |
POM |
| 48KBTF13DPXG |
Coupling |
Double Shut-Off |
Hose Barb |
green |
na |
13 |
POM |
| 48KBTF13DPXR |
Coupling |
Double Shut-Off |
Hose Barb |
red |
na |
13 |
POM |
| 48KBTF13DPXY |
Coupling |
Double Shut-Off |
Hose Barb |
yellow |
na |
13 |
POM |
| 48KBTF13FVX |
Coupling |
Double Shut-Off |
Hose Barb |
Standard |
na |
13 |
PVDF (with metal spring) |
| 48KBTF13FVXB |
Coupling |
Double Shut-Off |
Hose Barb |
blue |
na |
13 |
PVDF (with metal spring) |
| 48KBTF13FVXG |
Coupling |
Double Shut-Off |
Hose Barb |
green |
na |
13 |
PVDF (with metal spring) |
| 48KBTF13FVXR |
Coupling |
Double Shut-Off |
Hose Barb |
red |
na |
13 |
PVDF (with metal spring) |
| 48KBTF13FVXY |
Coupling |
Double Shut-Off |
Hose Barb |
yellow |
na |
13 |
PVDF (with metal spring) |
| 48SBAW13DPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/4 |
na |
POM |
| 48SBAW13DPXB |
Plug |
Double Shut-Off |
Male Thread - parallel |
blue |
1/4 |
na |
POM |
| 48SBAW13DPXG |
Plug |
Double Shut-Off |
Male Thread - parallel |
green |
1/4 |
na |
POM |
| 48SBAW13DPXR |
Plug |
Double Shut-Off |
Male Thread - parallel |
red |
1/4 |
na |
POM |
| 48SBAW13DPXY |
Plug |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/4 |
na |
POM |
| 48SBAW13FVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/4 |
na |
PVDF |
| 48SBAW13FVXB |
Plug |
Double Shut-Off |
Male Thread - parallel |
blue |
1/4 |
na |
PVDF |
| 48SBAW13FVXG |
Plug |
Double Shut-Off |
Male Thread - parallel |
green |
1/4 |
na |
PVDF |
| 48SBAW13FVXR |
Plug |
Double Shut-Off |
Male Thread - parallel |
red |
1/4 |
na |
PVDF |
| 48SBAW13FVXY |
Plug |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/4 |
na |
PVDF |
| 48SBAW17DPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
Standard |
3/8 |
na |
POM |
| 48SBAW17DPXB |
Plug |
Double Shut-Off |
Male Thread - parallel |
blue |
3/8 |
na |
POM |
| 48SBAW17DPXG |
Plug |
Double Shut-Off |
Male Thread - parallel |
green |
3/8 |
na |
POM |
| 48SBAW17DPXR |
Plug |
Double Shut-Off |
Male Thread - parallel |
red |
3/8 |
na |
POM |
| 48SBAW17DPXY |
Plug |
Double Shut-Off |
Male Thread - parallel |
yellow |
3/8 |
na |
POM |
| 48SBAW17FVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
Standard |
3/8 |
na |
PVDF |
| 48SBAW17FVXB |
Plug |
Double Shut-Off |
Male Thread - parallel |
blue |
3/8 |
na |
PVDF |
| 48SBAW17FVXG |
Plug |
Double Shut-Off |
Male Thread - parallel |
green |
3/8 |
na |
PVDF |
| 48SBAW17FVXR |
Plug |
Double Shut-Off |
Male Thread - parallel |
red |
3/8 |
na |
PVDF |
| 48SBAW17FVXY |
Plug |
Double Shut-Off |
Male Thread - parallel |
yellow |
3/8 |
na |
PVDF |
| 48SBAW21DPX |
Plug |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/2 |
na |
POM |
| 48SBAW21DPXB |
Plug |
Double Shut-Off |
Male Thread - parallel |
blue |
1/2 |
na |
POM |
| 48SBAW21DPXG |
Plug |
Double Shut-Off |
Male Thread - parallel |
green |
1/2 |
na |
POM |
| 48SBAW21DPXR |
Plug |
Double Shut-Off |
Male Thread - parallel |
red |
1/2 |
na |
POM |
| 48SBAW21DPXY |
Plug |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/2 |
na |
POM |
| 48SBAW21FVX |
Plug |
Double Shut-Off |
Male Thread - parallel |
Standard |
1/2 |
na |
PVDF |
| 48SBAW21FVXB |
Plug |
Double Shut-Off |
Male Thread - parallel |
blue |
1/2 |
na |
PVDF |
| 48SBAW21FVXG |
Plug |
Double Shut-Off |
Male Thread - parallel |
green |
1/2 |
na |
PVDF |
| 48SBAW21FVXR |
Plug |
Double Shut-Off |
Male Thread - parallel |
red |
1/2 |
na |
PVDF |
| 48SBAW21FVXY |
Plug |
Double Shut-Off |
Male Thread - parallel |
yellow |
1/2 |
na |
PVDF |
| 48SBIW13DPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/4 |
na |
POM |
| 48SBIW13DPXB |
Plug |
Double Shut-Off |
Female Thread - parallel |
blue |
1/4 |
na |
POM |
| 48SBIW13DPXG |
Plug |
Double Shut-Off |
Female Thread - parallel |
green |
1/4 |
na |
POM |
| 48SBIW13DPXR |
Plug |
Double Shut-Off |
Female Thread - parallel |
red |
1/4 |
na |
POM |
| 48SBIW13DPXY |
Plug |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/4 |
na |
POM |
| 48SBIW13FVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/4 |
na |
PVDF |
| 48SBIW17DPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
Standard |
3/8 |
na |
POM |
| 48SBIW17DPXB |
Plug |
Double Shut-Off |
Female Thread - parallel |
blue |
3/8 |
na |
POM |
| 48SBIW17DPXG |
Plug |
Double Shut-Off |
Female Thread - parallel |
green |
3/8 |
na |
POM |
| 48SBIW17DPXR |
Plug |
Double Shut-Off |
Female Thread - parallel |
red |
3/8 |
na |
POM |
| 48SBIW17DPXY |
Plug |
Double Shut-Off |
Female Thread - parallel |
yellow |
3/8 |
na |
POM |
| 48SBIW17FVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
Standard |
3/8 |
na |
PVDF |
| 48SBIW17FVXB |
Plug |
Double Shut-Off |
Female Thread - parallel |
blue |
3/8 |
na |
PVDF |
| 48SBIW17FVXG |
Plug |
Double Shut-Off |
Female Thread - parallel |
green |
3/8 |
na |
PVDF |
| 48SBIW17FVXR |
Plug |
Double Shut-Off |
Female Thread - parallel |
red |
3/8 |
na |
PVDF |
| 48SBIW17FVXY |
Plug |
Double Shut-Off |
Female Thread - parallel |
yellow |
3/8 |
na |
PVDF |
| 48SBIW21DPX |
Plug |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/2 |
na |
POM |
| 48SBIW21DPXB |
Plug |
Double Shut-Off |
Female Thread - parallel |
blue |
1/2 |
na |
POM |
| 48SBIW21DPXG |
Plug |
Double Shut-Off |
Female Thread - parallel |
green |
1/2 |
na |
POM |
| 48SBIW21DPXR |
Plug |
Double Shut-Off |
Female Thread - parallel |
red |
1/2 |
na |
POM |
| 48SBIW21DPXY |
Plug |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/2 |
na |
POM |
| 48SBIW21FVX |
Plug |
Double Shut-Off |
Female Thread - parallel |
Standard |
1/2 |
na |
PVDF |
| 48SBIW21FVXB |
Plug |
Double Shut-Off |
Female Thread - parallel |
blue |
1/2 |
na |
PVDF |
| 48SBIW21FVXG |
Plug |
Double Shut-Off |
Female Thread - parallel |
green |
1/2 |
na |
PVDF |
| 48SBIW21FVXR |
Plug |
Double Shut-Off |
Female Thread - parallel |
red |
1/2 |
na |
PVDF |
| 48SBIW21FVXY |
Plug |
Double Shut-Off |
Female Thread - parallel |
yellow |
1/2 |
na |
PVDF |
| 48SBKP08FVX |
Plug |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
6x8 |
PVDF |
| 48SBKP12FVX |
Plug |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
9x12 |
PVDF |
| 48SBKP12FVXS |
Plug |
Double Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
10x12 |
PVDF |
| 48SBTF06DPX |
Plug |
Double Shut-Off |
Hose Barb |
Standard |
na |
6 |
POM |
| 48SBTF06FVX |
Plug |
Double Shut-Off |
Hose Barb |
Standard |
na |
6 |
PVDF |
| 48SBTF06FVXB |
Plug |
Double Shut-Off |
Hose Barb |
blue |
na |
6 |
PVDF |
| 48SBTF06FVXG |
Plug |
Double Shut-Off |
Hose Barb |
green |
na |
6 |
PVDF |
| 48SBTF06FVXR |
Plug |
Double Shut-Off |
Hose Barb |
red |
na |
6 |
PVDF |
| 48SBTF06FVXY |
Plug |
Double Shut-Off |
Hose Barb |
yellow |
na |
6 |
PVDF |
| 48SBTF09DPX |
Plug |
Double Shut-Off |
Hose Barb |
Standard |
na |
9 |
POM |
| 48SBTF09DPXB |
Plug |
Double Shut-Off |
Hose Barb |
blue |
na |
9 |
POM |
| 48SBTF09DPXG |
Plug |
Double Shut-Off |
Hose Barb |
green |
na |
9 |
POM |
| 48SBTF09DPXR |
Plug |
Double Shut-Off |
Hose Barb |
red |
na |
9 |
POM |
| 48SBTF09DPXY |
Plug |
Double Shut-Off |
Hose Barb |
yellow |
na |
9 |
POM |
| 48SBTF09FVX |
Plug |
Double Shut-Off |
Hose Barb |
Standard |
na |
9 |
PVDF |
| 48SBTF09FVXB |
Plug |
Double Shut-Off |
Hose Barb |
blue |
na |
9 |
PVDF |
| 48SBTF09FVXG |
Plug |
Double Shut-Off |
Hose Barb |
green |
na |
9 |
PVDF |
| 48SBTF09FVXR |
Plug |
Double Shut-Off |
Hose Barb |
red |
na |
9 |
PVDF |
| 48SBTF09FVXY |
Plug |
Double Shut-Off |
Hose Barb |
yellow |
na |
9 |
PVDF |
| 48SBTF13DPX |
Plug |
Double Shut-Off |
Hose Barb |
Standard |
na |
13 |
POM |
| 48SBTF13DPXB |
Plug |
Double Shut-Off |
Hose Barb |
blue |
na |
13 |
POM |
| 48SBTF13DPXG |
Plug |
Double Shut-Off |
Hose Barb |
green |
na |
13 |
POM |
| 48SBTF13DPXR |
Plug |
Double Shut-Off |
Hose Barb |
red |
na |
13 |
POM |
| 48SBTF13DPXY |
Plug |
Double Shut-Off |
Hose Barb |
yellow |
na |
13 |
POM |
| 48SBTF13FVX |
Plug |
Double Shut-Off |
Hose Barb |
Standard |
na |
13 |
PVDF |
| 48SBTF13FVXB |
Plug |
Double Shut-Off |
Hose Barb |
blue |
na |
13 |
PVDF |
| 48SBTF13FVXG |
Plug |
Double Shut-Off |
Hose Barb |
green |
na |
13 |
PVDF |
| 48SBTF13FVXR |
Plug |
Double Shut-Off |
Hose Barb |
red |
na |
13 |
PVDF |
| 48SBTF13FVXY |
Plug |
Double Shut-Off |
Hose Barb |
yellow |
na |
13 |
PVDF |
| 48SFAW13DXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
Standard |
1/4 |
na |
POM |
| 48SFAW13FXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
Standard |
1/4 |
na |
PVDF |
| 48SFAW17DXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
Standard |
3/8 |
na |
POM |
| 48SFAW17FVXB |
Plug |
Single Shut-Off |
Male Thread - parallel |
blue |
3/8 |
na |
PVDF |
| 48SFAW17FVXG |
Plug |
Single Shut-Off |
Male Thread - parallel |
green |
3/8 |
na |
PVDF |
| 48SFAW17FVXR |
Plug |
Single Shut-Off |
Male Thread - parallel |
red |
3/8 |
na |
PVDF |
| 48SFAW17FVXY |
Plug |
Single Shut-Off |
Male Thread - parallel |
yellow |
3/8 |
na |
PVDF |
| 48SFAW17FXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
Standard |
3/8 |
na |
PVDF |
| 48SFAW21DXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
Standard |
1/2 |
na |
POM |
| 48SFAW21FXX |
Plug |
Single Shut-Off |
Male Thread - parallel |
Standard |
1/2 |
na |
PVDF |
| 48SFIW13DPXB |
Plug |
Single Shut-Off |
Female Thread - parallel |
blue |
1/4 |
na |
POM |
| 48SFIW13DPXG |
Plug |
Single Shut-Off |
Female Thread - parallel |
green |
1/4 |
na |
POM |
| 48SFIW13DPXR |
Plug |
Single Shut-Off |
Female Thread - parallel |
red |
1/4 |
na |
POM |
| 48SFIW13DPXY |
Plug |
Single Shut-Off |
Female Thread - parallel |
yellow |
1/4 |
na |
POM |
| 48SFIW13DXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
Standard |
1/4 |
na |
POM |
| 48SFIW13FXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
Standard |
1/4 |
na |
PVDF |
| 48SFIW17DXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
Standard |
3/8 |
na |
POM |
| 48SFIW17DXXB |
Plug |
Single Shut-Off |
Female Thread - parallel |
blue |
3/8 |
na |
POM |
| 48SFIW17DXXG |
Plug |
Single Shut-Off |
Female Thread - parallel |
green |
3/8 |
na |
POM |
| 48SFIW17DXXR |
Plug |
Single Shut-Off |
Female Thread - parallel |
red |
3/8 |
na |
POM |
| 48SFIW17DXXY |
Plug |
Single Shut-Off |
Female Thread - parallel |
yellow |
3/8 |
na |
POM |
| 48SFIW17FXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
Standard |
3/8 |
na |
PVDF |
| 48SFIW17FXXB |
Plug |
Single Shut-Off |
Female Thread - parallel |
blue |
3/8 |
na |
PVDF |
| 48SFIW17FXXG |
Plug |
Single Shut-Off |
Female Thread - parallel |
green |
3/8 |
na |
PVDF |
| 48SFIW17FXXR |
Plug |
Single Shut-Off |
Female Thread - parallel |
red |
3/8 |
na |
PVDF |
| 48SFIW17FXXY |
Plug |
Single Shut-Off |
Female Thread - parallel |
yellow |
3/8 |
na |
PVDF |
| 48SFIW21DXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
Standard |
1/2 |
na |
POM |
| 48SFIW21FXX |
Plug |
Single Shut-Off |
Female Thread - parallel |
Standard |
1/2 |
na |
PVDF |
| 48SFKP08FVX |
Plug |
Single Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
6x8 |
PVDF |
| 48SFKP12FVX |
Plug |
Single Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
9x12 |
PVDF |
| 48SFKP12FVXS |
Plug |
Single Shut-Off |
for PVDF- and PE-Hoses |
Standard |
na |
10x12 |
PVDF |
| 48SFTF06DXX |
Plug |
Single Shut-Off |
Hose Barb |
Standard |
na |
6 |
POM |
| 48SFTF06FVXB |
Plug |
Single Shut-Off |
Hose Barb |
blue |
na |
6 |
PVDF |
| 48SFTF06FVXG |
Plug |
Single Shut-Off |
Hose Barb |
green |
na |
6 |
PVDF |
| 48SFTF06FVXR |
Plug |
Single Shut-Off |
Hose Barb |
red |
na |
6 |
PVDF |
| 48SFTF06FVXY |
Plug |
Single Shut-Off |
Hose Barb |
yellow |
na |
6 |
PVDF |
| 48SFTF06FXX |
Plug |
Single Shut-Off |
Hose Barb |
Standard |
na |
6 |
PVDF |
| 48SFTF09DPXB |
Plug |
Single Shut-Off |
Hose Barb |
blue |
na |
9 |
POM |
| 48SFTF09DPXG |
Plug |
Single Shut-Off |
Hose Barb |
green |
na |
9 |
POM |
| 48SFTF09DPXR |
Plug |
Single Shut-Off |
Hose Barb |
red |
na |
9 |
POM |
| 48SFTF09DPXY |
Plug |
Single Shut-Off |
Hose Barb |
yellow |
na |
9 |
POM |
| 48SFTF09DXX |
Plug |
Single Shut-Off |
Hose Barb |
Standard |
na |
9 |
POM |
| 48SFTF09FVXB |
Plug |
Single Shut-Off |
Hose Barb |
blue |
na |
9 |
PVDF |
| 48SFTF09FVXG |
Plug |
Single Shut-Off |
Hose Barb |
green |
na |
9 |
PVDF |
| 48SFTF09FVXR |
Plug |
Single Shut-Off |
Hose Barb |
red |
na |
9 |
PVDF |
| 48SFTF09FVXY |
Plug |
Single Shut-Off |
Hose Barb |
yellow |
na |
9 |
PVDF |
| 48SFTF09FXX |
Plug |
Single Shut-Off |
Hose Barb |
Standard |
na |
9 |
PVDF |
| 48SFTF13DXX |
Plug |
Single Shut-Off |
Hose Barb |
Standard |
na |
13 |
POM |
| 48SFTF13FXX |
Plug |
Single Shut-Off |
Hose Barb |
Standard |
na |
13 |
PVDF |
|
