Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

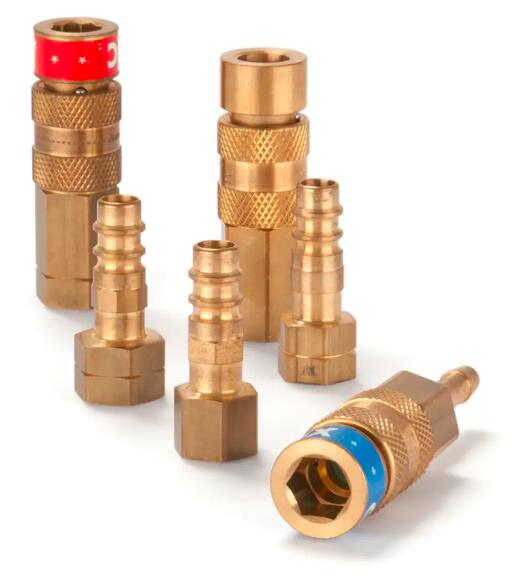

Coded Quick Coupling especially for fuel gas and oxygen, Series 65-67

Coded quick coupling system with nominal diameter 7.4 especially for use with fuel gas and oxygen up to 35 bar. Available made of ungreased brass.





Parker's Coded Quick Coupling Series 65-67 is a coupling system with coding developed specifically for use with fuel gas and oxygen on pressure regulators / welding torches etc. Our "RectuKey" coding system prevents mixing up media. Up to three different media can be safely (non-interchangeable) connected with the standard version.



Coded Quick Coupling especially for fuel gas and oxygen, Series 65-67



Markets:
- Machinery Construction
- Life Science
- Process
- Rescue Equipment

Features/Benefits:
- No mix-ups between media due to the color and mechanical coding of coupling and plug

Applications:
- Gas Transfer



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 7,4 mm
Application: Fluid Handling
Brand: Rectus
Fitting Connection Type: Male Thread, Hose Barb
Interchange Type: Rectus Profile
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Gases
Valve Type: High Flow Air
Valve Included: Yes or No acc. to the version
Version: Single Shut-Off
Length: 46 to 90 mm
Hex Size: 17 to 19 mm
Outside Diameter: 22 mm
Materials of Construction: Brass
Seal Material: FKM, EPDM
Flow Rate: 800 L/min



Coded Quick Coupling especially for fuel gas and oxygen, Series 65-67 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D. Application
65KSIW13MVX Coupling Male Thread - parallel - right 1/4 na Oxygen
65KSIW17MVX Coupling Male Thread - parallel - right 3/8 na Oxygen
65KSTF06MVX Coupling Hose Barb na 6 Oxygen
65KSTF09MVX Coupling Hose Barb na 9 Oxygen
65SSIW13MXX Plug Male Thread - parallel - right 1/4 na Oxygen
65SSIW17MXX Plug Male Thread - parallel - right 3/8 na Oxygen
65SSTF06MXX Plug Hose Barb na 6 Oxygen
65SSTF09MXX Plug Hose Barb na 9 Oxygen
66KSIL13MEX Coupling Male Thread - parallel - left 1/4 na Fuel Gas
66KSIL17MEX Coupling Male Thread - parallel - left 3/8 na Fuel Gas
66KSTF06MEX Coupling Hose Barb na 6 Fuel Gas
66KSTF09MEX Coupling Hose Barb na 9 Fuel Gas
66SSIL13MXX Plug Male Thread - parallel - left 1/4 na Fuel Gas
66SSIL17MXX Plug Male Thread - parallel - left 3/8 na Fuel Gas
66SSTF06MXX Plug Hose Barb na 6 Fuel Gas
66SSTF09MXX Plug Hose Barb na 9 Fuel Gas
67KSIL13MVX Coupling Male Thread - parallel - left 1/4 na Var. Media
67KSIL17MVX Coupling Male Thread - parallel - left 3/8 na Var. Media
67KSTF06MVX Coupling Hose Barb na 6 Var. Media
67KSTF09MVX Coupling Hose Barb na 9 Var. Media
67SSIL13MXX Plug Male Thread - parallel - left 1/4 na Var. Media
67SSIL17MXX Plug Male Thread - parallel - left 3/8 na Var. Media
67SSTF06MXX Plug Hose Barb na 6 Var. Media
67SSTF09MXX Plug Hose Barb na 9 Var. Media
