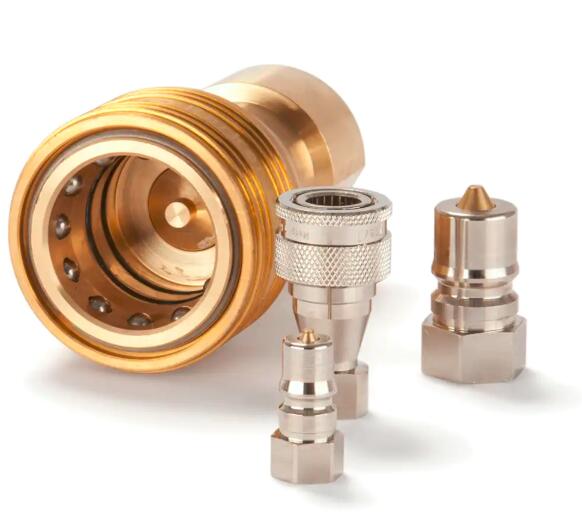

Quick Coupling with ISO 7241-1 Series B Profile, Series 70
Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.
Parker's Quick Coupling Series 70 in sizes from 1/8" up to 1" with plug profile compliant with ISO 7241-1 series B. It's particularly suited to use with liquid media. The coupling system is developed for two-hand operation, i.e. both hands are required when coupling/uncoupling. The coupling series stands out for its high flow rates against a low pressure drop.
Quick Coupling with ISO 7241-1 Series B Profile, Series 70
Markets:
- Machinery Construction
- Life Science
- Process
- Food & Beverage
- Defense
- Industrial
- Transportation
Features/Benefits:
- Coupling system according to ISO 7241-1 series B
- High flow rates against a low pressure drop
- Two-hand operation
Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- Cleaning equipment
- Steam and some gases
Technical Specifications
| Minimum Operating Temperature: |
-15 to 20 °C |
| Application: |
Pneumatic & Fluid Handling |
| Brand: |
Rectus |
| Diameter: |
Nominal: 4.3 to 20 mm |
| Fitting Connection Type: |
Female Thread |
| Specifications Met: |
ISO 7241-1 Series B |
| Interchange Type: |
ISO 7241-1 Series B |
| Materials of Construction: |
Brass, Stainless Steel |
| Maximum Operating Pressure: |
1450 - 3620 psi, 100 to 250 bar |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
Poppet |
| Body Size: |
1/8 to 1"1/2 inch |
| Valve Included: |
Yes |
| Version: |
Double Shut-Off |
| Length: |
29,5 up to 105,5 mm |
| Hex Size: |
14 up to 41 mm |
| Outside Diameter: |
25 up to 62 mm |
| Seal Material: |
NBR, FKM |
| Maximum Operating Temperature: |
212 to 392 °C |
| Flow Rate: |
440 up to 7500 L/min |
Quick Coupling with ISO 7241-1 Series B Profile, Series 70 型号
| Part |
Type |
Connection Type |
Connection Thread Size (inch) |
Material |
| 71KBIW10EVX |
Coupling |
Female Thread - parallel |
1/8 |
AISI 316 L |
| 71KBIW10MPN |
Coupling |
Female Thread - parallel |
1/8 |
Brass nickel plated |
| 71KBIW10MPX |
Coupling |
Female Thread - parallel |
1/8 |
Brass |
| 71KBIW10RVX |
Coupling |
Female Thread - parallel |
1/8 |
AISI 303 |
| 71SBIW10EVX |
Plug |
Female Thread - parallel |
1/8 |
AISI 316 L |
| 71SBIW10MPN |
Plug |
Female Thread - parallel |
1/8 |
Brass nickel plated |
| 71SBIW10MPX |
Plug |
Female Thread - parallel |
1/8 |
Brass |
| 71SBIW10RVX |
Plug |
Female Thread - parallel |
1/8 |
AISI 303 |
| 72KBIW13EVX |
Coupling |
Female Thread - parallel |
1/4 |
AISI 316 L |
| 72KBIW13MPN |
Coupling |
Female Thread - parallel |
1/4 |
Brass nickel plated |
| 72KBIW13MPX |
Coupling |
Female Thread - parallel |
1/4 |
Brass |
| 72KBIW13RVX |
Coupling |
Female Thread - parallel |
1/4 |
AISI 303 |
| 72SBIW13EVX |
Plug |
Female Thread - parallel |
1/4 |
AISI 316 L |
| 72SBIW13MPN |
Plug |
Female Thread - parallel |
1/4 |
Brass nickel plated |
| 72SBIW13MPX |
Plug |
Female Thread - parallel |
1/4 |
Brass |
| 72SBIW13RVX |
Plug |
Female Thread - parallel |
1/4 |
AISI 303 |
| 73KBIW17EVX |
Coupling |
Female Thread - parallel |
3/8 |
AISI 316 L |
| 73KBIW17MPN |
Coupling |
Female Thread - parallel |
3/8 |
Brass nickel plated |
| 73KBIW17MPX |
Coupling |
Female Thread - parallel |
3/8 |
Brass |
| 73KBIW17RVX |
Coupling |
Female Thread - parallel |
3/8 |
AISI 303 |
| 73SBIW17EVX |
Plug |
Female Thread - parallel |
3/8 |
AISI 316 L |
| 73SBIW17MPN |
Plug |
Female Thread - parallel |
3/8 |
Brass nickel plated |
| 73SBIW17MPX |
Plug |
Female Thread - parallel |
3/8 |
Brass |
| 73SBIW17RVX |
Plug |
Female Thread - parallel |
3/8 |
AISI 303 |
| 74KBIW21EVX |
Coupling |
Female Thread - parallel |
1/2 |
AISI 316 L |
| 74KBIW21MPN |
Coupling |
Female Thread - parallel |
1/2 |
Brass nickel plated |
| 74KBIW21MPX |
Coupling |
Female Thread - parallel |
1/2 |
Brass |
| 74KBIW21RVX |
Coupling |
Female Thread - parallel |
1/2 |
AISI 303 |
| 74SBIW21EVX |
Plug |
Female Thread - parallel |
1/2 |
AISI 316 L |
| 74SBIW21MPN |
Plug |
Female Thread - parallel |
1/2 |
Brass nickel plated |
| 74SBIW21MPX |
Plug |
Female Thread - parallel |
1/2 |
Brass |
| 74SBIW21RVX |
Plug |
Female Thread - parallel |
1/2 |
AISI 303 |
| 75KBIW26EVX |
Coupling |
Female Thread - parallel |
3/4 |
AISI 316 L |
| 75KBIW26MPN |
Coupling |
Female Thread - parallel |
3/4 |
Brass nickel plated |
| 75KBIW26MPX |
Coupling |
Female Thread - parallel |
3/4 |
Brass |
| 75KBIW26RVX |
Coupling |
Female Thread - parallel |
3/4 |
AISI 303 |
| 75SBIW26EVX |
Plug |
Female Thread - parallel |
3/4 |
AISI 316 L |
| 75SBIW26MPN |
Plug |
Female Thread - parallel |
3/4 |
Brass nickel plated |
| 75SBIW26MPX |
Plug |
Female Thread - parallel |
3/4 |
Brass |
| 75SBIW26RVX |
Plug |
Female Thread - parallel |
3/4 |
AISI 303 |
| 76KBIW33EVX |
Coupling |
Female Thread - parallel |
1 |
AISI 316 L |
| 76KBIW33MPN |
Coupling |
Female Thread - parallel |
1 |
Brass nickel plated |
| 76KBIW33MPX |
Coupling |
Female Thread - parallel |
1 |
Brass |
| 76KBIW33RVX |
Coupling |
Female Thread - parallel |
1 |
AISI 303 |
| 76SBIW33EVX |
Plug |
Female Thread - parallel |
1 |
AISI 316 L |
| 76SBIW33MPN |
Plug |
Female Thread - parallel |
1 |
Brass nickel plated |
| 76SBIW33MPX |
Plug |
Female Thread - parallel |
1 |
Brass |
| 76SBIW33RVX |
Plug |
Female Thread - parallel |
1 |
AISI 303 |
|
