Parker Quick Couplings

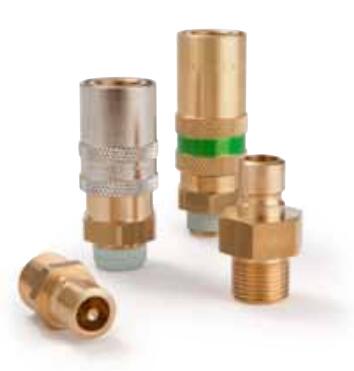

Quick Coupling with International Profile, Series 86/87/88
Quick coupling system with nominal diameter 6/9/13 for tempering and cooling applications up to 15 bar. Coupling system with International profile. Available made of brass.
Parker's Quick Coupling Series 86/87/88 were especially developed for connecting coolant lines and injection molds. The countersunk plugs can easily be connected and disconnected because of the extended sleeve. The angular connections prevent kinks from forming in the hose.
This coupling series is available in single shut-off, double shut-off, straight-through versions and is also available with SAFE-LOCK?-technology. The shut-off couplings (with valve) are equipped with nickel plated sleeves for quick and accurate visual differentiation.
Quick Coupling with International Profile, Series 86/87/88
Markets:
- Industrial
Features/Benefits:
- SAFE-LOCK?-technology reliably prevents accidental uncoupling of the system under pressure
- Shut-off couplings are equipped with nickel plated sleeve for quick and accurate visual differentiation
Application Area:
- Mold cooling
- Cooling and tempering lines
Technical Specifications
| Minimum Operating Temperature: |
-15 °C |
| Product Type: |
Coupling, Plug, Extension Plugs |
| Application: |
Mold |
| Brand: |
Rectus |
| Diameter: |
Nominal: 6.0, 9.0 or 13 mm |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
International |
| Maximum Operating Pressure: |
210 psi, 15 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Water |
| Valve Type: |
No Valve, Poppet |
| Hex Size: |
11 up to 29 mm |
| Outside Diameter: |
9,5 up to 46 mm |
| Materials of Construction: |
Brass |
| Seal Material: |
FKM |
Quick Coupling with International Profile, Series 86/87/88 型号
| Part |
Diameter Nominal (DN) |
Valving |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
Length (mm) |
Special Options |
| 86KBAW13MVX |
6 |
Yes |
Male Thread - parallel |
1/4 |
na |
47 |
na |
| 86KBAW13MVXSL |
6 |
Yes |
Male Thread - parallel |
1/4 |
na |
51,5 |
Safe-Lock |
| 86KBAW17MVX |
6 |
Yes |
Male Thread - parallel |
3/8 |
na |
47 |
na |
| 86KBAW17MVXSL |
6 |
Yes |
Male Thread - parallel |
3/8 |
na |
51,5 |
Safe-Lock |
| 86KBIW10MVX |
6 |
Yes |
Female Thread - parallel |
1/8 |
na |
40 |
na |
| 86KBIW13MVX |
6 |
Yes |
Female Thread - parallel |
1/4 |
na |
40 |
na |
| 86KBTF06MVX |
6 |
Yes |
Hose Barb |
na |
6 |
46 |
na |
| 86KBTF06MVXSL |
6 |
Yes |
Hose Barb |
na |
6 |
54 |
Safe-Lock |
| 86KBTF09MVX |
6 |
Yes |
Hose Barb |
na |
9 |
51 |
na |
| 86KBTF09MVXSL |
6 |
Yes |
Hose Barb |
na |
9 |
59 |
Safe-Lock |
| 86KBTH06MVX |
6 |
Yes |
Hose Barb 45° |
na |
6 |
40 |
na |
| 86KBTH09MVX |
6 |
Yes |
Hose Barb 45° |
na |
9 |
40 |
na |
| 86KBTH09MVXSL |
6 |
Yes |
Hose Barb 45° |
na |
9 |
51,5 |
Safe-Lock |
| 86KBTR06MVX |
6 |
Yes |
Hose Barb 90° |
na |
6 |
40 |
na |
| 86KBTR09MVX |
6 |
Yes |
Hose Barb 90° |
na |
9 |
40 |
na |
| 86KBTR09MVXSL |
6 |
Yes |
Hose Barb 90° |
na |
9 |
52,5 |
Safe-Lock |
| 86KFAW13MVX |
6 |
No |
Male Thread - parallel |
1/4 |
na |
47 |
na |
| 86KFAW13MVXSL |
6 |
No |
Male Thread - parallel |
1/4 |
na |
51,5 |
Safe-Lock |
| 86KFAW17MVX |
6 |
No |
Male Thread - parallel |
3/8 |
na |
47 |
na |
| 86KFAW17MVXSL |
6 |
No |
Male Thread - parallel |
3/8 |
na |
51,5 |
Safe-Lock |
| 86KFIW10MVX |
6 |
No |
Female Thread - parallel |
1/8 |
na |
40 |
na |
| 86KFIW13MVX |
6 |
No |
Female Thread - parallel |
1/4 |
na |
40 |
na |
| 86KFTF06MVX |
6 |
No |
Hose Barb |
na |
6 |
46 |
na |
| 86KFTF06MVXSL |
6 |
No |
Hose Barb |
na |
6 |
54 |
Safe-Lock |
| 86KFTF09MVX |
6 |
No |
Hose Barb |
na |
9 |
51 |
na |
| 86KFTF09MVXSL |
6 |
No |
Hose Barb |
na |
9 |
59 |
Safe-Lock |
| 86KFTH06MVX |
6 |
No |
Hose Barb 45° |
na |
6 |
40 |
na |
| 86KFTH09MVX |
6 |
No |
Hose Barb 45° |
na |
9 |
40 |
na |
| 86KFTH09MVXSL |
6 |
No |
Hose Barb 45° |
na |
9 |
51,5 |
Safe-Lock |
| 86KFTR06MVX |
6 |
No |
Hose Barb 90° |
na |
6 |
40 |
na |
| 86KFTR09MVX |
6 |
No |
Hose Barb 90° |
na |
9 |
40 |
na |
| 86KFTR09MVXSL |
6 |
No |
Hose Barb 90° |
na |
9 |
52,5 |
Safe-Lock |
| 86SBAK13MVX |
6 |
Yes |
Male Thread - tapered |
1/4 |
na |
29 |
na |
| 86SFAK10MXX |
6 |
No |
Male Thread - tapered |
1/8 |
na |
24 |
na |
| 86SFAK13MXX |
6 |
No |
Male Thread - tapered |
1/4 |
na |
29 |
na |
| 86SFAK17MXX |
6 |
No |
Male Thread - tapered |
3/8 |
na |
30 |
na |
| 86SFAM10MXX |
6 |
No |
Male Thread - metric |
10x1 |
na |
23 |
na |
| 86SFAR10MXX |
6 |
No |
Male Thread 90° |
1/4 |
na |
34 |
na |
| 86SFAR10MXX_03 |
6 |
No |
Male Thread 90° |
10x1 |
na |
27 |
na |
| 86SFAR13MXX |
6 |
No |
Male Thread 90° |
1/8 |
na |
27 |
na |
| 86SFIW10MXX |
6 |
No |
Female Thread - parallel |
1/8 |
na |
28 |
na |
| 86SFIW13MXX |
6 |
No |
Female Thread - parallel |
1/4 |
na |
32 |
na |
| 86SFIW17MXX |
6 |
No |
Female Thread - parallel |
3/8 |
na |
34 |
na |
| 86SFTF09MXX |
6 |
No |
Hose Barb |
na |
9 |
39 |
na |
| 86VN1010MXX |
6 |
No |
Male Thread |
1/8 |
na |
100 |
na |
| 86VN1010MXXS_01 |
6 |
No |
continuous Male Thread |
1/8 |
na |
100 |
na |
| 86VN1015MXXS_01 |
6 |
No |
Male Thread |
1/4 |
na |
150 |
na |
| 86VN1025MXX |
6 |
No |
Male Thread |
1/8 |
na |
250 |
na |
| 86VN1310MXX |
6 |
No |
continuous Male Thread |
1/4 |
na |
100 |
na |
| 86VNXX05MXX |
6 |
No |
without Thread |
na |
10 |
50 |
na |
| 86VNXX10MXX |
6 |
No |
without Thread |
na |
10 |
150 |
na |
| 86VNXX15MXX |
6 |
No |
without Thread |
na |
10 |
100 |
na |
| 86VNXX20MXX |
6 |
No |
without Thread |
na |
10 |
200 |
na |
| 87KBAW13MVX |
9 |
Yes |
Male Thread - parallel |
1/4 |
na |
56,5 |
na |
| 87KBAW13MVXSL |
9 |
Yes |
Male Thread - parallel |
1/4 |
na |
67 |
Safe-Lock |
| 87KBAW17MVX |
9 |
Yes |
Male Thread - parallel |
3/8 |
na |
56,5 |
na |
| 87KBAW17MVXSL |
9 |
Yes |
Male Thread - parallel |
3/8 |
na |
67 |
Safe-Lock |
| 87KBAW21MVX |
9 |
Yes |
Male Thread - parallel |
1/2 |
na |
59,5 |
na |
| 87KBAW21MVXSL |
9 |
Yes |
Male Thread - parallel |
1/2 |
na |
70 |
Safe-Lock |
| 87KBIW13MVX |
9 |
Yes |
Female Thread - parallel |
1/4 |
na |
51,5 |
na |
| 87KBIW17MVX |
9 |
Yes |
Female Thread - parallel |
3/8 |
na |
51,5 |
na |
| 87KBTF09MVX |
9 |
Yes |
Hose Barb |
na |
9 |
64 |
na |
| 87KBTF09MVXSL |
9 |
Yes |
Hose Barb |
na |
9 |
73 |
Safe-Lock |
| 87KBTF13MVX |
9 |
Yes |
Hose Barb |
na |
13 |
66,5 |
na |
| 87KBTF13MVXSL |
9 |
Yes |
Hose Barb |
na |
13 |
76 |
Safe-Lock |
| 87KBTH09MVX |
9 |
Yes |
Hose Barb 45° |
na |
9 |
56 |
na |
| 87KBTH09MVXSL |
9 |
Yes |
Hose Barb 45° |
na |
9 |
65,5 |
Safe-Lock |
| 87KBTH13MVX |
9 |
Yes |
Hose Barb 45° |
na |
13 |
56 |
na |
| 87KBTH13MVXSL |
9 |
Yes |
Hose Barb 45° |
na |
13 |
65,5 |
Safe-Lock |
| 87KBTR09MVX |
9 |
Yes |
Hose Barb 90° |
na |
9 |
56 |
na |
| 87KBTR09MVXSL |
9 |
Yes |
Hose Barb 90° |
na |
9 |
68,5 |
Safe-Lock |
| 87KBTR13MVX |
9 |
Yes |
Hose Barb 90° |
na |
13 |
56 |
na |
| 87KBTR13MVXSL |
9 |
Yes |
Hose Barb 90° |
na |
13 |
68,5 |
Safe-Lock |
| 87KFAW13MVX |
9 |
No |
Male Thread - parallel |
1/4 |
na |
56,5 |
na |
| 87KFAW13MVXSL |
9 |
No |
Male Thread - parallel |
1/4 |
na |
67 |
Safe-Lock |
| 87KFAW17MVX |
9 |
No |
Male Thread - parallel |
3/8 |
na |
56,5 |
na |
| 87KFAW17MVXSL |
9 |
No |
Male Thread - parallel |
3/8 |
na |
67 |
Safe-Lock |
| 87KFAW21MVX |
9 |
No |
Male Thread - parallel |
1/2 |
na |
59,5 |
na |
| 87KFAW21MVXSL |
9 |
No |
Male Thread - parallel |
1/2 |
na |
70 |
Safe-Lock |
| 87KFIW13MVX |
9 |
No |
Female Thread - parallel |
1/4 |
na |
51,5 |
na |
| 87KFIW17MVX |
9 |
No |
Female Thread - parallel |
3/8 |
na |
51,5 |
na |
| 87KFTF09MVX |
9 |
No |
Hose Barb |
na |
9 |
64 |
na |
| 87KFTF09MVXSL |
9 |
No |
Hose Barb |
na |
9 |
73 |
Safe-Lock |
| 87KFTF13MVX |
9 |
No |
Hose Barb |
na |
13 |
66,5 |
na |
| 87KFTF13MVXSL |
9 |
No |
Hose Barb |
na |
13 |
76 |
Safe-Lock |
| 87KFTH09MVX |
9 |
No |
Hose Barb 45° |
na |
9 |
56 |
na |
| 87KFTH09MVXSL |
9 |
No |
Hose Barb 45° |
na |
9 |
65,5 |
Safe-Lock |
| 87KFTH13MVX |
9 |
No |
Hose Barb 45° |
na |
13 |
56 |
na |
| 87KFTH13MVXSL |
9 |
No |
Hose Barb 45° |
na |
13 |
65,5 |
Safe-Lock |
| 87KFTR09MVX |
9 |
No |
Hose Barb 90° |
na |
9 |
56 |
na |
| 87KFTR09MVXSL |
9 |
No |
Hose Barb 90° |
na |
9 |
68,5 |
Safe-Lock |
| 87KFTR13MVX |
9 |
No |
Hose Barb 90° |
na |
13 |
56 |
na |
| 87KFTR13MVXSL |
9 |
No |
Hose Barb 90° |
na |
13 |
68,5 |
Safe-Lock |
| 87SBAK13MVX |
6 |
Yes |
Male Thread - tapered |
1/4 |
na |
34 |
na |
| 87SBAK17MVX |
9 |
Yes |
Male Thread - tapered |
3/8 |
na |
34 |
na |
| 87SFAK13MXX |
6 |
No |
Male Thread - tapered |
1/4 |
na |
34 |
na |
| 87SFAK17MXX |
9 |
No |
Male Thread - tapered |
3/8 |
na |
34 |
na |
| 87SFAK21MXX |
9 |
No |
Male Thread - tapered |
1/2 |
na |
39 |
na |
| 87SFAR13MXX |
9 |
No |
Male Thread 90° |
1/4 |
na |
27 |
na |
| 87SFAR17MXX |
9 |
No |
Male Thread 90° |
3/8 |
na |
37 |
na |
| 87SFIW13MXX |
9 |
No |
Female Thread - parallel |
1/4 |
na |
37 |
na |
| 87SFIW17MXX |
9 |
No |
Female Thread - parallel |
3/8 |
na |
39 |
na |
| 87SFTF13MXX |
9 |
No |
Hose Barb |
na |
13 |
41 |
na |
| 87VN1310MXX |
9 |
No |
continuous Male Thread |
1/4 |
na |
100 |
na |
| 87VN1315MXX |
9 |
No |
Male Thread |
1/4 |
na |
150 |
na |
| 87VN1325MXX |
9 |
No |
Male Thread |
1/8 |
na |
250 |
na |
| 87VN1710MXX |
9 |
No |
continuous Male Thread |
3/8 |
na |
100 |
na |
| 87VNXX10MXX |
9 |
No |
without Thread |
na |
14 |
100 |
na |
| 87VNXX15MXX |
9 |
No |
without Thread |
na |
14 |
200 |
na |
| 87VNXX20MXX |
9 |
No |
without Thread |
na |
14 |
150 |
na |
| 87VNXX25MXX |
9 |
No |
without Thread |
na |
14 |
250 |
na |
| 88KATF19MVX |
13 |
Yes |
Hose Barb |
na |
19 |
89 |
na |
| 88KATR19MVX |
13 |
Yes |
Hose Barb 90° |
na |
19 |
77 |
na |
| 88KFTF19MVX |
13 |
No |
Hose Barb |
na |
19 |
89 |
na |
| 88KFTR19MVX |
13 |
No |
Hose Barb 90° |
na |
19 |
77 |
na |
| 88SFAK21MXX |
13 |
No |
Male Thread - tapered |
1/2 |
na |
44 |
na |
| 88SFAK26MXX |
13 |
No |
Male Thread - tapered |
3/4 |
na |
45 |
na |
| 88SFTF19MXX |
13 |
No |
Hose Barb |
na |
19 |
91 |
na |
|
