Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

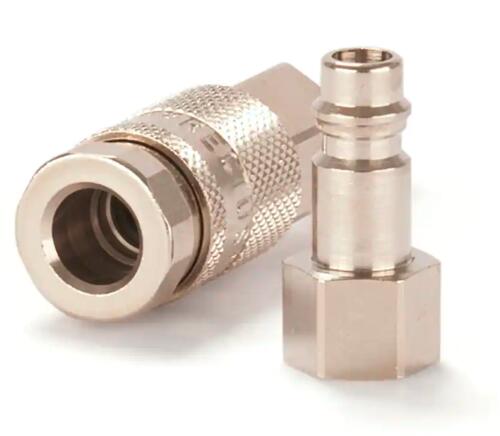

Breathing Air Quick Coupling, Series 96

Quick coupling system with nominal diameter 7,4 for breathing air applications up to 35 bar. Especially developed for the area of breathing air protection. Available made of brass.





Parker's Breathing Air Quick Coupling Series 96 has been developed specifically for the area of breathing protection.
This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop. Series 96 is equipped with an additional safety locking system which prevents unintentional disconnection. To disconnect, the plug must first be pushed further into the coupling before it can be unlocked. Parker's Breathing Air Quick Coupling Series 96 is tested according to EN 139 standard.



Breathing Air Quick Coupling, Series 96



Markets:
- Life Science
- Rescue Equipment

Features/Benefits:
- Interchangeable to the most common profiles for breathing air applications
- UltraFlo valve for optimum flow and low pressure drop
- Additional safety locking system to prevent unintentional disconnection
- Tested according EN 139 standard
- Single-hand operation for easy and fast connection

Applications:
- Breathing Air



Technical Specifications

Minimum Operating Temperature: -20 °C
Diameter: Nominal: 7,4 mm
Application: Breathing Air
Brand: Rectus
Fitting Connection Type: Female Thread, Male Thread, Hose Barb
Interchange Type: Rectus Profile
Maximum Operating Pressure: 500 psi, 35 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Pneumatic Media
Valve Type: High Flow Air, Poppet
Seal Material: NBR
Valve Included: Yes or No acc. to the version
Version: Breathing Air
Length: 38 to 78 mm
Hex Size: 14 to 22 mm
Outside Diameter: 12 to 23 mm
Materials of Construction: Brass, Stainless Steel
Flow Rate: 1700 L/min



Breathing Air Quick Coupling, Series 96 型号

Part Type Connection Type Connection Thread Size (inch) Hose I.D.
96KSAK13BPN Coupling Male Thread - tapered 1/4 na
96KSAK17BPN Coupling Male Thread - tapered 3/8 na
96KSAK21BPN Coupling Male Thread - tapered 1/2 na
96KSIW13BPN Coupling Female Thread - parallel 1/4 na
96KSIW17BPN Coupling Female Thread - parallel 3/8 na
96KSTF06BPN Coupling Hose Barb na 6
96KSTF07BPN Coupling Hose Barb na 7
96KSTF09BPN Coupling Hose Barb na 9
96KSTF10BPN Coupling Hose Barb na 10
96KSTF13BPN Coupling Hose Barb na 13
96SSAK13MXN Plug Male Thread - tapered 1/4 na
96SSAK17MXN Plug Male Thread - tapered 3/8 na
96SSAW17RXX Plug Male Thread - parallel 3/8 na
96SSIW13MXN Plug Female Thread - parallel 1/4 na
96SSIW17MXN Plug Female Thread - parallel 3/8 na
96SSTF06MXN Plug Hose Barb na 6
96SSTF09MXN Plug Hose Barb na 9
96SSTF13MXN Plug Hose Barb na 13
