Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series FEM / IF

Flat Face quick coupling system with body size 1/8" up to 1" for medium pressure applications up to 450 bar. Coupling system with ISO 16028 Profile.





Parker's Flat Face Quick Coupling FEM / IF series is produced according to the ISO 16028 and is compatible with other series complying with the same standard. These couplings offer a leckage free disconnection with a minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. The standard version of series FEM / IF is available made of steel or stainless steel.

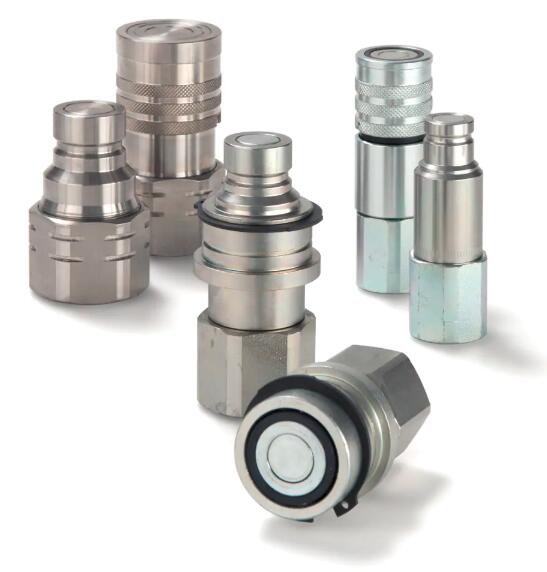

Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series FEM / IF



Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction

Features/Benefits:
- Safety locking feature as standard to prevent unintentional uncoupling
- FEC with the pressure eliminator enable effortless connection under static pressure (up to rated working pressure)
- FEMP and FECP with pushpull features is suitable for multi-plates or when coupling is fixed on an application

Applications:
Easy dry break connection / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Hydraulic tools
- Presses
- Molding machines



Technical Specifications

Minimum Operating Temperature: -25, -30 °C
Connection Type: Female Thread
Application: Medium Pressure
Body Size: 1/8 - 1 inch
Brand: Tema
Fitting Connection Type: Female Thread
Specifications Met: ISO 16028
Interchange Type: ISO 16028
Maximum Operating Pressure: 200, 250, 315, 450 bar, 2900, 3620, 4560, 6520 psi
Maximum Operating Temperature: 212, 392 °F, 100, 200 °C
Media: Chemical Fluids, Hydraulic Fluids, Steam, Water
Valve Type: Non-Spill / FlatFace
Length: 35 up to 146 mm
Hex Size: 17 up to 65 mm
Outside Diameter: 18,6 up to 60 mm
Materials of Construction: Steel, Brass / Steel, Stainless Steel
Seal Material: NBR, FKM
Operating Pressure: 200, 250, 315, 450 bar



Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series FEM / IF 型号

Part Body Size (inch) Type Version Connection Thread Size (inch)
FEC-1001-16FB 1 Coupling Pressure Eliminator 1
FEC-1001-20FB 1 Coupling Pressure Eliminator 1 1/4
FEC-1002-16FB 1 Plug Pressure Eliminator 1
FEC-1002-20FB 1 Plug Pressure Eliminator 1 1/4
FEC-251-4FB 1/4 Coupling Pressure Eliminator 1/4
FEC-251-6FB 1/4 Coupling Pressure Eliminator 3/8
FEC-252-4FB 1/4 Plug Pressure Eliminator 1/4
FEC-252-6FB 1/4 Plug Pressure Eliminator 3/8
FEC-371-6FB 3/8 Coupling Pressure Eliminator 3/8
FEC-371-8FB 3/8 Coupling Pressure Eliminator 1/2
FEC-372-6FB 3/8 Plug Pressure Eliminator 3/8
FEC-372-8FB 3/8 Plug Pressure Eliminator 1/2
FEC-501-12FB 1/2 Coupling Pressure Eliminator 3/4
FEC-501-8FB 1/2 Coupling Pressure Eliminator 1/2
FEC-502-12FB 1/2 Plug Pressure Eliminator 3/4
FEC-502-8FB 1/2 Plug Pressure Eliminator 1/2
FEC-621-12FB 5/8 Coupling Pressure Eliminator 3/4
FEC-622-12FB 5/8 Plug Pressure Eliminator 3/4
FEC-751-12FB 3/4 Coupling Pressure Eliminator 3/4
FEC-751-16FB 3/4 Coupling Pressure Eliminator 1
FEC-752-12FB 3/4 Plug Pressure Eliminator 3/4
FEC-752-16FB 3/4 Plug Pressure Eliminator 1
FECP-1002-16FB 1 Coupling Pressure Eliminator for Multiplate 1
FECP-252-4FB 1/4 Coupling Pressure Eliminator for Multiplate 1/4
FECP-252-6FB 1/4 Coupling Pressure Eliminator for Multiplate 3/8
FECP-372-6FB 3/8 Coupling Pressure Eliminator for Multiplate 3/8
FECP-372-8FB 3/8 Coupling Pressure Eliminator for Multiplate 1/2
FECP-502-12FB 1/2 Coupling Pressure Eliminator for Multiplate 3/4
FECP-502-8FB 1/2 Coupling Pressure Eliminator for Multiplate 1/2
FECP-622-12FB 5/8 Coupling Pressure Eliminator for Multiplate 3/4
FECP-752-12FB 3/4 Coupling Pressure Eliminator for Multiplate 3/4
FECP-752-16FB 3/4 Coupling Pressure Eliminator for Multiplate 1
FEM-1001-16FB 1 Coupling Standard 1
FEM-1001-20FB 1 Coupling Standard 1 1/4
FEM-1002-16FB 1 Plug Standard 1
FEM-1002-20FB 1 Plug Standard 1 1/4
FEM-121-2FB 1/8 Coupling Standard 1/8
FEM-122-2FB 1/8 Plug Standard 1/8
FEM-251-4FB 1/4 Coupling Standard 1/4
FEM-251-6FB 1/4 Coupling Standard 3/8
FEM-252-4FB 1/4 Plug Standard 1/4
FEM-252-6FB 1/4 Plug Standard 3/8
FEM-371-6FB 3/8 Coupling Standard 3/8
FEM-371-8FB 3/8 Coupling Standard 1/2
FEM-372-6FB 3/8 Plug Standard 3/8
FEM-372-8FB 3/8 Plug Standard 1/2
FEM-501-12FB 1/2 Coupling Standard 3/4
FEM-501-8FB 1/2 Coupling Standard 1/2
FEM-502-12FB 1/2 Plug Standard 3/4
FEM-502-8FB 1/2 Plug Standard 1/2
FEM-621-12FB 5/8 Coupling Standard 3/4
FEM-622-12FB 5/8 Plug Standard 3/4
FEM-751-12FB 3/4 Coupling Standard 3/4
FEM-751-16FB 3/4 Coupling Standard 1
FEM-752-12FB 3/4 Plug Standard 3/4
FEM-752-16FB 3/4 Plug Standard 1
FEMP-1001-16FB 1 Coupling for Multiplate 1
FEMP-1002-16FB 1 Plug for Multiplate 1
FEMP-251-4FB 1/4 Coupling for Multiplate 1/4
FEMP-251-6FB 1/4 Coupling for Multiplate 3/8
FEMP-252-4FB 1/4 Plug for Multiplate 1/4
FEMP-371-6FB 3/8 Coupling for Multiplate 3/8
FEMP-371-8FB 3/8 Coupling for Multiplate 1/2
FEMP-372-6FB 3/8 Plug for Multiplate 3/8
FEMP-501-12FB 1/2 Coupling for Multiplate 3/4
FEMP-501-8FB 1/2 Coupling for Multiplate 1/2
FEMP-502-8FB 1/2 Plug for Multiplate 1/2
FEMP-621-12FB 5/8 Coupling for Multiplate 3/4
FEMP-622-12FB 5/8 Plug for Multiplate 3/4
FEMP-751-12FB 3/4 Coupling for Multiplate 3/4
FEMP-751-16FB 3/4 Coupling for Multiplate 1
FEMP-752-12FB 3/4 Plug for Multiplate 3/4
IF10010 RV 1 Coupling Stainless Steel 1
IF10010-125 RV 1 Coupling Stainless Steel 1 1/4
IF10020 RV 1 Plug Stainless Steel 1
IF10020-125 RV 1 Plug Stainless Steel 1 1/4
IF2510 RV 1/4 Coupling Stainless Steel 1/4
IF2520 RV 1/4 Plug Stainless Steel 1/4
IF3810 RV 3/8 Coupling Stainless Steel 3/8
IF3810-50 RV 3/8 Coupling Stainless Steel 1/2
IF3820 RV 3/8 Plug Stainless Steel 3/8
IF3820-50 RV 3/8 Plug Stainless Steel 1/2
IF5010 RV 1/2 Coupling Stainless Steel 1/2
IF5010-75 RV 1/2 Coupling Stainless Steel 3/4
IF5020 RV 1/2 Plug Stainless Steel 1/2
IF5020-75 RV 1/2 Plug Stainless Steel 3/4
IF6310 RV 5/8 Coupling Stainless Steel 3/4
IF6320 RV 5/8 Plug Stainless Steel 3/4
IF7510 RV 3/4 Coupling Stainless Steel 3/4
IF7510-100 RV 3/4 Coupling Stainless Steel 1
IF7520 RV 3/4 Plug Stainless Steel 3/4
IF7520-100 RV 3/4 Plug Stainless Steel 1
