Parker Quick Couplings

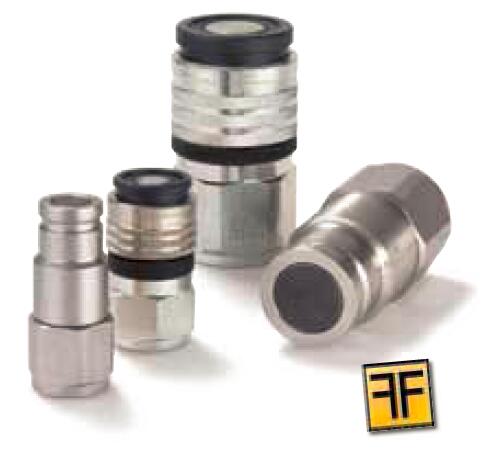

Hydraulic Flat Face Quick Coupling with Parker Profile, Series FF
Flat Face quick coupling system with body sizes 1/4" up to 1" for medium pressure applications up to 800 bar. Coupling system with Parker Profile.
Parker's Flat Face Quick Coupling Series FF is a dry break coupling system with Parker own profile. During disconnection there is no oil loss, and during connection there is no inclusion of air into the system. This coupling system is also available with pressure eliminator, i.e. connection is possible under static/residual pressure up to working pressure. An additional safety locking ring prevents unintentional disconnection. Series FF is develop for single-hand operation.
Hydraulic Flat Face Quick Coupling with Parker Profile, Series FF
Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
Features/Benefits:
- Dry break quick coupling, no oil loss during disconnection and only minimum pressure drop
- Single-handed operation for easy and fast connection
- Safety locking ring to prevent unintentional disconnection
- Twice as safe through double sealing in the plug
- Also available with pressure eliminator
Applications:
Easy dry break connection / disconnection in hydraulic systems, both mobild and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Hydraulic tools
- High pressure hydraulic tools
- Presses
- Molding machines
Technical Specifications
| Minimum Operating Temperature: |
-25, -30 °C |
| Connection Type: |
Female Thread |
| Application: |
Medium Pressure |
| Body Size: |
1/4 - 1 inch |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
Tema Profile |
| Maximum Operating Pressure: |
5070, 5800, 6520, 7250, 11600 psi, 350, 400, 450, 500, 800 bar |
| Maximum Operating Temperature: |
212, 392 °F, 100, 200 °C |
| Media: |
Chemical Fluids, Hydraulic Fluids, Steam, Water |
| Seal Material: |
NBR |
| Valve Type: |
Non-Spill / FlatFace |
| Length: |
65 up to 175 mm |
| Hex Size: |
25 up to 65 mm |
| Outside Diameter: |
28 up to 70 mm |
| Materials of Construction: |
Brass / Steel |
Hydraulic Flat Face Quick Coupling with Parker Profile, Series FF 型号
|
