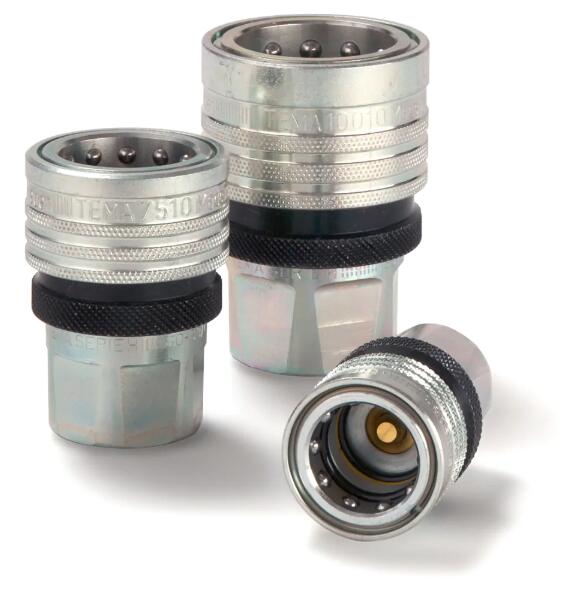

Hydraulic Quick Coupling with Parker Profile, Series H
Quick coupling system with body sizes 1/2" up to 1" for medium pressure applications up to 320 bar. Coupling system with Parker Profile.
Parker's Hydraulic Quick Coupling Series H is a further development of the standard hydraulic coupling, with some new materials to stand up to heavy conditions. The body of the coupling is made of steel so that the coupling functions reliably even when subject to substantial lateral forces and high impulses. Series H is also available with pressure eliminator, i.e. connection is possible under static/residual pressure up to working pressure. An additional safety locking ring prevents unintentional disconnection.
The right plug for series H can be found under series T.
Hydraulic Quick Coupling with Parker Profile, Series H
Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction
Features/Benefits:
- Completely made of steel for heavy duty applications
- High flow rate – minimum pressure drop
- Twice as safe through double sealing in the plug
- Safety locking ring to prevent unintentional disconnection
- Maximum protection against corrosion
- Also available with pressure eliminator
Applications:
Easy connectiong / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Presses
- Molding machines
Technical Specifications
| Minimum Operating Temperature: |
-25, -30 °C |
| Connection Type: |
Female Thread |
| Application: |
Medium Pressure |
| Body Size: |
1/2 - 1 inch |
| Brand: |
Tema |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
Tema Profile |
| Maximum Operating Pressure: |
280, 300, 320 bar, 4060, 4350, 4640 psi |
| Maximum Operating Temperature: |
212, 392 °F, 100, 200 °C |
| Media: |
Hydraulic Fluids |
| Seal Material: |
NBR / FKM |
| Valve Type: |
Poppet |
| Connection Thread Size: |
1/2 up to 1 inch |
| Length: |
65 up to 88 mm |
| Hex Size: |
30 up to 45 mm |
| Outside Diameter: |
40 up to 62 mm |
| Materials of Construction: |
Brass / Steel |
| Operating Pressure: |
280, 300, 320 bar |
Hydraulic Quick Coupling with Parker Profile, Series H 型号
| Part |
Body Size (inch) |
Type |
Version |
Seal Material |
| H10010 |
1 |
Coupling |
Standard |
NBR |
| H10010 V |
1 |
Coupling |
Standard |
FKM |
| H10011 |
1 |
Coupling |
Pressure Eliminator |
NBR |
| H10011 V |
1 |
Coupling |
Pressure Eliminator |
FKM |
| H5010 |
1/2 |
Coupling |
Standard |
NBR |
| H5010 V |
1/2 |
Coupling |
Standard |
FKM |
| H5011 |
1/2 |
Coupling |
Pressure Eliminator |
NBR |
| H5011 V |
1/2 |
Coupling |
Pressure Eliminator |
FKM |
| H7510 |
3/4 |
Coupling |
Standard |
NBR |
| H7510 V |
3/4 |
Coupling |
Standard |
FKM |
| H7511 |
3/4 |
Coupling |
Pressure Eliminator |
NBR |
| H7511 V |
3/4 |
Coupling |
Pressure Eliminator |
FKM |
|
