Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

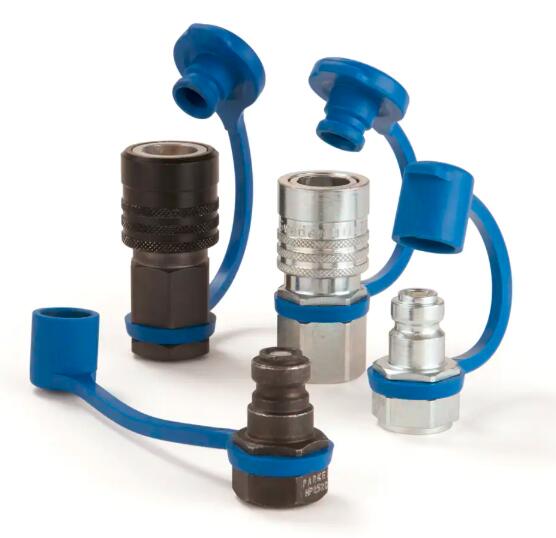

High Pressure Quick Coupling with Parker Profile, Series HP

High pressure quick coupling with body size 1/4" for high pressure applications up to 1500 bar. Coupling system with Parker profile.





Parker's High Pressure Quick Coupling Series HP were specially developed for use in industrial machinery, test equipment, rescue equipment, bolt tensioning, torque wrenches etc.
The couplings of HP1000 and HP1500 can be supplied either with or without additional safety lock. Series HP is a dry break coupling system - no oil loss during disconnection and no inclusion of air during connection.



High Pressure Quick Coupling with Parker Profile, Series HP



Markets:
- Rescue
- Industrial

Features/Benefits:
- High flow as a result of optimised valve design
- Dry break – no oil loss during disconnection and no inclusion of air during connection
- Plug can withstand static pressure disconnected up to full working pressure
- Parker Tema high pressure couplings are supplied with dust caps inclusive

Applications:
- High pressure tools
- Rescue equipment
- Torque wrenches
- Hydraulic high pressure pumps
- Bolt tensioning devices



Technical Specifications

Body Size: 1/4 inch
Application: High Pressure
Brand: Tema
Fitting Connection Type: Female Thread
Interchange Type: Tema Profile
Maximum Operating Pressure: 1000, 1500, 2500 bar, 14500, 21750, 36250 psi
Maximum Operating Temperature: 100 °C, 212 °F
Media: Hydraulic Fluids
Valve Type: Non-Spill / FlatFace
Length: 38 up to 64 mm
Hex Size: 22, 24 mm
Outside Diameter: 25, 27, 30 mm
Materials of Construction: Steel, zinc plated or Steel, zinc-nickel plated, black passivated
Seal Material: NBR



High Pressure Quick Coupling with Parker Profile, Series HP 型号

Part Maximum Working Pressure (Bar) Type Connection Type Connection Thread Size (inch) Additional Safety Feature
HP1010 4131 1000 Coupling Female Thread 1/4 na
HP1010 4132 1000 Coupling Female Thread 1/4 Safety Locking
HP1010 4171 1000 Coupling Female Thread 3/8 na
HP1010 4172 1000 Coupling Female Thread 3/8 Safety Locking
HP1010 5131 1000 Coupling Female Thread - NPTF 1/4-18 na
HP1010 5132 1000 Coupling Female Thread - NPTF 1/4-18 Safety Locking
HP1010 5171 1000 Coupling Female Thread - NPTF 3/8-18 na
HP1010 5172 1000 Coupling Female Thread - NPTF 3/8-18 Safety Locking
HP1020 413 1000 Plug Female Thread 1/4 na
HP1020 417 1000 Plug Female Thread 3/8 na
HP1020 513 1000 Plug Female Thread - NPTF 1/4-18 na
HP1020 517 1000 Plug Female Thread - NPTF 3/8-18 na
HP1510 4131 1500 Coupling Female Thread 1/4 na
HP1510 4132 1500 Coupling Female Thread 1/4 Safety Locking
HP1510 4171 1500 Coupling Female Thread 3/8 na
HP1510 4172 1500 Coupling Female Thread 3/8 Safety Locking
HP1510 5131 1500 Coupling Female Thread - NPTF 1/4-18 na
HP1510 5132 1500 Coupling Female Thread - NPTF 1/4-18 Safety Locking
HP1510 5171 1500 Coupling Female Thread - NPTF 3/8-18 na
HP1510 5172 1500 Coupling Female Thread - NPTF 3/8-18 Safety Locking
HP1520 413 1500 Plug Female Thread 1/4 na
HP1520 513 1500 Plug Female Thread - NPTF 1/4-18 na
